AVEdge 100 Pro

Edge Mount Enclosure for AV Connectivity, Data, and Power

Key Features

Attaches to the tabletop surface without cutting
Ideal for configurable rooms that require semi-permanent AC power and AV connectivity
Integrated tool-less clamp system
Accommodates two double-space AAP^™ AV Connectivity Modules, Cable Pass-Through Brackets for up to eight AV cables, or three Retractor cable retraction modules
Unique, split-ring Cable Pass-Through bracket design allows up to four cables; each
AVEdge enclosure is UL/c-UL listed
See All Features

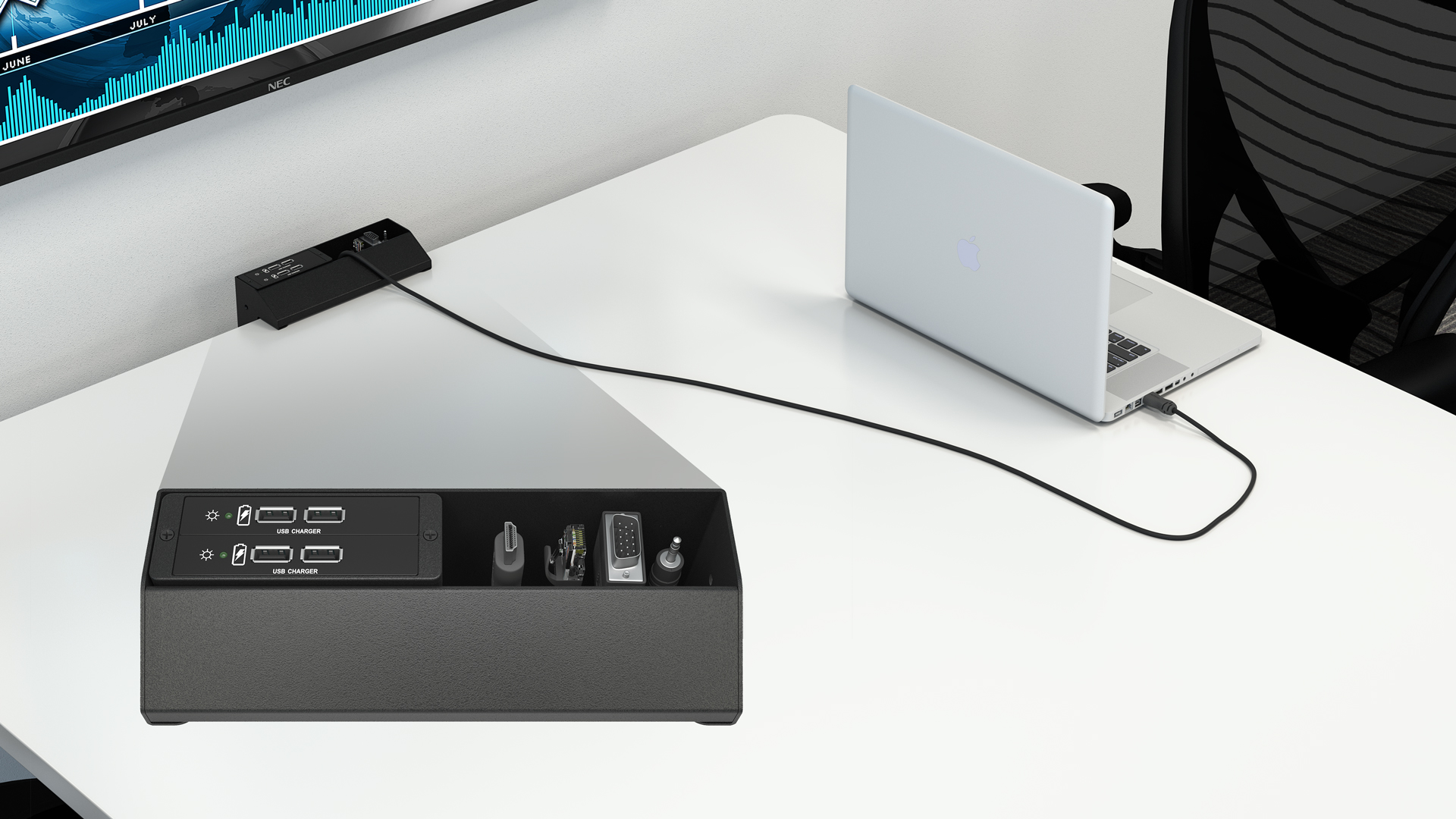

AVEdge is ideal for configurable rooms that require semi-permanent power and AV connectivity

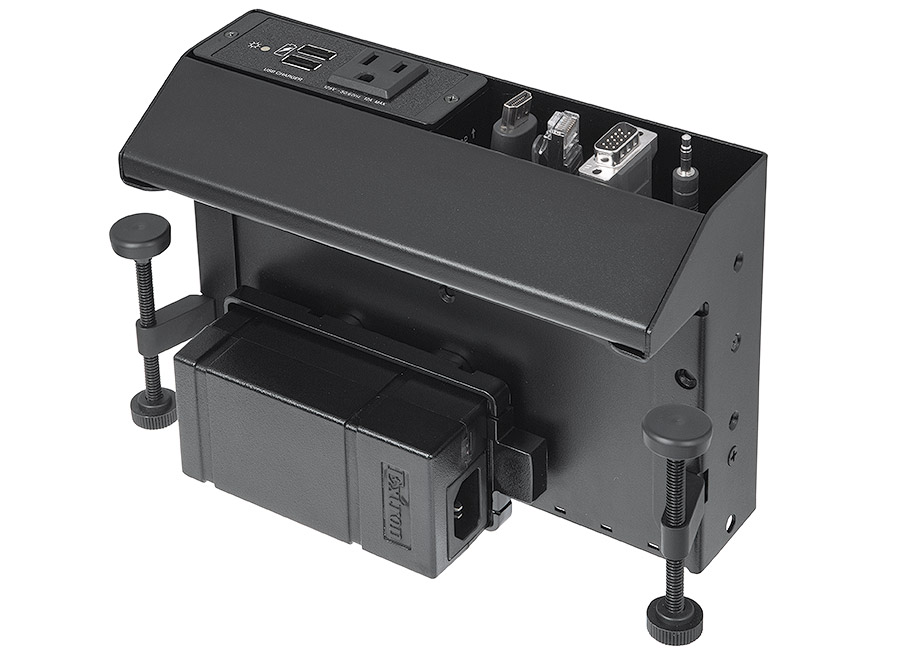

AVEdge accommodates two AAP modules and/or three Retractor cable modules, or four AV cables each connectivity bracket; AAP modules, Retractor modules, and cables sold separately

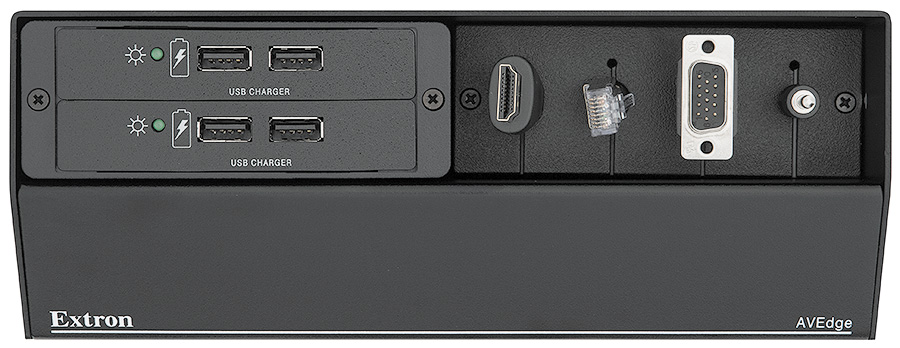

USB PowerPlate 200 Series AAP modules provide USB and/or AC power for mobile devices and laptops; sold separately

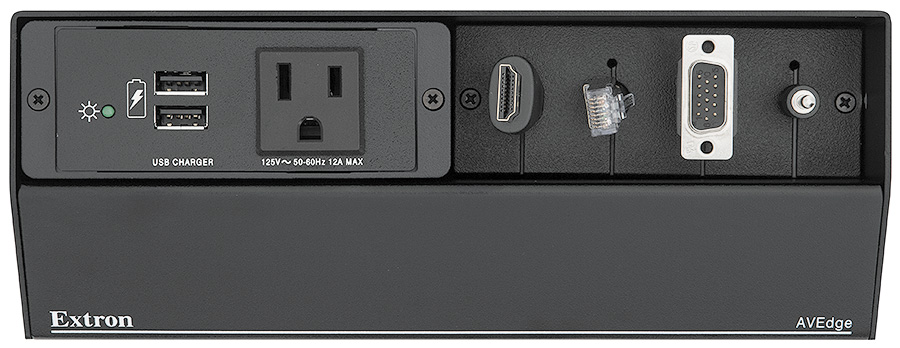

Unique, split-ring Cable Pass-Through bracket design allows up to four cables; each

AVEdge secures to the tabletop surface without cutting or need for tools or additional parts

(Shown with Optional Extron Products)

Image Gallery

The Extron AVEdge™ 100 is a cable access enclosure designed to mount onto the edge of a tabletop surface where cutting the surface is not desirable. An integrated clamp system secures the enclosure to the tabletop surface without the need for tools or additional parts. The AVEdge 100 accommodates two double-space AV connectivity modules - AAP™ AV Connectivity Modules, Cable Pass‑Through Brackets for up to eight AV cables, or three Retractor cable retraction modules. AAP power modules are available to provide USB and/or AC power for mobile devices and laptops. The optional CableCover minimizes cable tangles and accidental disconnects. The Extron ZipClip 100 and ZipClip 200 are also available to mount products such as the PS Series Desktop Power Supply directly to the enclosure. The AVEdge 100 is available in a black finish.
