AAP SuperPlate Series

AV Connectivity Module for HDMI, VGA, Stereo Audio, Network, and USB

Key Features

Double-space AAP™ AV Connectivity Modules for HDMI, VGA, Stereo Audio, Network, or USB
New USB 3 transfers data between USB devices at rates up to 5 Gbps
New USB-C supports transmission of 4K/60 video, audio, and 5 Gbps of data between devices, along with 60 W of power
Supports DDC transmission
Available in black and/or white
Cable access enclosures and other mounting hardware sold separately

Model	Version Description	Part #
AAP SuperPlate 100	HDMI, VGA, Audio, and USB 2 Type-A - Black	70-1076-02
AAP SuperPlate 103	HDMI, VGA, Audio, and USB 3 Type-A - Black	70-1238-02
AAP SuperPlate 100	HDMI, VGA, Audio, and USB 2 Type-A - White	70-1076-03
AAP SuperPlate 130	(2) HDMI, VGA, Audio – Black	70-1076-32
AAP SuperPlate 160	HDMI, VGA, Audio, and Network – Black	70-1076-62
AAP SuperPlate 170	HDMI, USB 2 Type-A, USB-C, Network – Black	70-1076-72
AAP SuperPlate 173	HDMI, USB 3 Type-A, USB-C, Network – Black	70-1238-72
AAP SuperPlate 110	HDMI, DisplayPort, Audio, USB 2 Type-A – Black	70-1076-12	Retired
AAP SuperPlate 110	HDMI, DisplayPort, Audio, USB 2 Type-A – White	70-1076-13	Retired
AAP SuperPlate 120	HDMI, DisplayPort, VGA, Audio – Black	70-1076-22	Retired
AAP SuperPlate 120	HDMI, DisplayPort, VGA, Audio – White	70-1076-23	Retired
AAP SuperPlate 130	(2) HDMI, VGA, Audio – White	70-1076-33	Retired
AAP SuperPlate 160	HDMI, VGA, Audio, and Network – White	70-1076-63	Retired
AAP SuperPlate 103	HDMI, VGA, Audio, and USB 3 Type-A - White	70-1238-03	Retired

The AAP SuperPlate Series of double-space AAP™ AV Connectivity Modules provides convenient, pass-through connectivity for HDMI, VGA, Stereo Audio, Network, or USB signals, and USB-C power. For ease of installation, all connections except Network utilize pigtail cables. Network modules utilize a female to female CAT 5e barrel. The AAP SuperPlate Series is designed to work with any Extron AV Connectivity Mounting Frame or enclosure that accommodates two or more single-space AAP modules, including Cable Cubby Series Cable Access Enclosures, the AVEdge Edge Mount Enclosure, and TMK 100 Series Under Table Mounts; sold separately.

Connector Types by Model

	AAP SuperPlate 100	AAP SuperPlate 103	AAP SuperPlate 130	AAP SuperPlate 160	AAP SuperPlate 170	AAP SuperPlate 173
HDMI	1	1	2	1	1	1
VGA	1	1	1	1
Audio	1	1	1	1
Network				1	1	1
USB 2	1				1
USB 3		1				1
USB-C					1	1

Features

Double-space AAP™ AV Connectivity Modules for HDMI, VGA, Stereo Audio, Network, or USB —
- Features the following connectors:

HDMI: HDMI female to HDMI female 10” (25 cm) pigtail
VGA: VGA 15‑pin female to VGA 15‑pin female on 6" (15 cm) pigtail
Audio: Stereo Audio 3.5 mm stereo mini jack to captive screw on 10" (25 cm) pigtail
Network: RJ-45 female to female barrel - CAT 5e barrel
USB 2: USB 2 Type-A female to Type-A female on 10” (25 cm) pigtail (480 Mbps)
USB 3:
- Supports data rates up to 5 Gbps
- Type-A to Type-B female is on a 10” (25 cm) reversible pigtail
New USB-C:
- Supports DisplayPort Alt Mode signals up to 4K/60
- Supports USB data rates up to 5 Gbps
- Female socket to male plug on a 3’ (90 cm) cable
- USB Power delivery of up to 60 W for charging small laptops, tablets, and other mobile devices
- Compatible with Thunderbolt 3 devices

New USB 3 transfers data between USB devices at rates up to 5 Gbps

New USB-C supports transmission of 4K/60 video, audio, and 5 Gbps of data between devices, along with 60 W of power

Signals passed through unprocessed

Supports DDC transmission — Facilitates EDID communication between the display and connected HDMI, DisplayPort, and VGA sources

Available in black and/or white

Cable access enclosures and other mounting hardware sold separately

RELATED PRODUCTS
	Hideaway HSA 400	Configurable HSA - Hideaway Surface Access Enclosure with AC Power
	TMK 100 AAP Series	Table Mounts for AAP AV Connectivity Modules

SIMILAR PRODUCTS

One 3.5 mm Stereo Mini Jack to Solder Tabs

One 15-pin HD Female to Female Gender Changer

One 15-pin HD Female to Female Gender Changer, One 3.5 mm Stereo Mini Jack to Solder Tabs

One USB A Female to Female on 10" Pigtail, One RJ-45 Female to Female Barrel - CAT 5e

Two 3.5 mm Stereo Mini Jack to Captive Screw Terminal

Two 3.5 mm Stereo Mini Jack to Solder Tabs

Two USB A Female to Female on 10" Pigtails

Two USB A Female to USB B Female Adapters

One HDMI Female to Female on 10” Pigtail, One Momentary Switch to Captive Screw on 4” Pigtail

One HDMI Female to Female on 10" Pigtail, One 3.5 mm Stereo Mini Jack to Captive Screw

Specifications

AAP® SuperPlate Series

Cable - USB-C

specification

Frame rate¹

24, 25, 30, 50, or 60 fps

Chroma sampling

4:4:4 or 4:2:2

Color bit depth¹

8, 10, or 12 bits per color

Signal Type

Up to DisplayPort 1.2 and HDCP 2.3

Max. video data rate

21.6 Gbps (5.4 Gbps per lane)

NOTE	¹Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.

Video

DisplayPort video

DisplayPort Alt Mode, DP 1.2 (1, 2, or 4 lanes)

Max. video data rate

21.6 Gbps (5.4 Gbps per lane)

Resolution range

640x480⁸, 480p^7,8, 576p⁶, 720p^{3,4,5,6,7,8,9}, 1080i^6,7,8, 1080p^{1,2,3,4,5,6,7,8,9}, 2K^{1,2,3,4,5,6,7,8}, 3840x2160^1,2,3,4,5, 4096x2160^{1,2,3,4,5,6,7,8,9}

Frame rate

¹23.98 Hz, ²24 Hz, ³25 Hz, ⁴29.97 Hz, ⁵30 Hz, ⁶50 Hz, ⁷59.94 Hz, ⁸60 Hz, ⁹120 Hz
(depending on resolution)

Color space

4:4:4 or 4:2:2

Color bit depth

8, 10, and 12 bits per color (subject to maximum data rate)

Formats

RGB, YCbCr digital video

Data

USB specification

USB 3.2 (Gen 1), 2.0, 1.1 compatible

USB data rate

Up to 5 Gbps

Power

Maximum power delivery

60 watts

Maximum current

3 A

Mechanical

Cable outer diameter

0.23" (5.7 mm)

Cable - Digital

specification

Frame rate¹

24, 25, 30, 50, or 60 fps

Chroma sampling¹

4:4:4, 4:2:2, or 4:2:0

Color bit depth¹

8 bits per color

Signal Type

HDMI 1.4, DisplayPort 1.1a

Max. video data rate

HDMI

10.2 Gbps (3.4 Gbps per color)

DisplayPort

10.8 Gbps (2.7 Gbps per lane)

NOTE	¹Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate* to determine video parameters supported by this data rate.*

General

Mounting

Mountable into optional AAP mounting frame

Enclosure type

Metal

Connector type

HDMI female to HDMI female
VGA female to VGA female
RJ-45 CAT 5e barrel
DisplayPort female to DisplayPort female
3.5 mm stereo audio jack to captive screw
USB 2.0 Type A female to Type A female
USB 3.2 Gen 1 Type A female to Type B female, reversible
USB Type-C female to Type-C male

Connectivity Table - AAP SuperPlates - USB-C

USB data rates

USB 2.0

High speed (480 Mbps)

USB 3.2 Gen 1

SuperSpeed (up to 5 Gbps)

USB-C

SuperSpeed (up to 5 Gbps)

Faceplate dimensions

1.4" H x 3.5" W x 0.1" D (double space AAP plate)
(35.6 mm H x 88.9 mm W x 2.5 mm D)
Allow 2.0" (51 mm) depth for cable management.

ATTENTION

Do not bend cable beyond the recommended depth for cable management.

Product weight

AAP SuperPlate 100

0.33 lb (0.15 kg)

AAP SuperPlate 103

0.35 lb (0.16 kg)

AAP SuperPlate 110

0.32 lb (0.14 kg)

AAP SuperPlate 120

0.32 lb (0.14 kg)

AAP SuperPlate 130

0.32 lb (0.14 kg)

AAP SuperPlate 160

0.32 lb (0.14 kg)

AAP SuperPlate 170

0.4 lb (0.18 kg)

AAP SuperPlate 173

0.4 lb (0.18 kg)

Regulatory compliance

ROHS, WEEE

Product warranty

3 years parts and labor

NOTE	Specifications are subject to change without notice.

(5916-D9)

Shipping Dimensions and Weights
Part #	Height	Width	Depth	Weight
70-1076-02	2.5" (6.4 cm)	5.75" (14.6 cm)	7.5" (19.1 cm)	0.53 lbs (0.24 kg)
70-1238-02	2.38" (6.0 cm)	7.5" (19.1 cm)	5.88" (14.9 cm)	0.45 lbs (0.2 kg)
70-1076-03	2.5" (6.4 cm)	5.75" (14.6 cm)	7.5" (19.1 cm)	0.53 lbs (0.24 kg)
70-1076-32	2.63" (6.7 cm)	6.75" (17.1 cm)	5.75" (14.6 cm)	0.36 lbs (0.16 kg)
70-1076-62	2.13" (5.4 cm)	6.5" (16.5 cm)	5.5" (14.0 cm)	0.45 lbs (0.2 kg)
70-1076-72	2.63" (6.7 cm)	7.44" (18.9 cm)	5.9" (15.0 cm)	0.5 lbs (0.23 kg)
70-1238-72	2.63" (6.7 cm)	7.44" (18.9 cm)	5.9" (15.0 cm)	0.5 lbs (0.23 kg)

AAP SuperPlate Series

Connector Types by Model

Features

Specifications

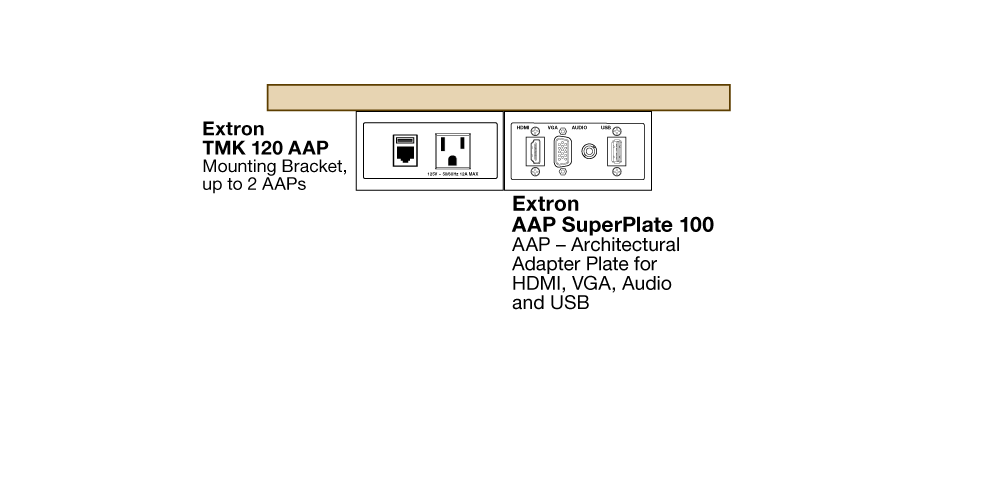

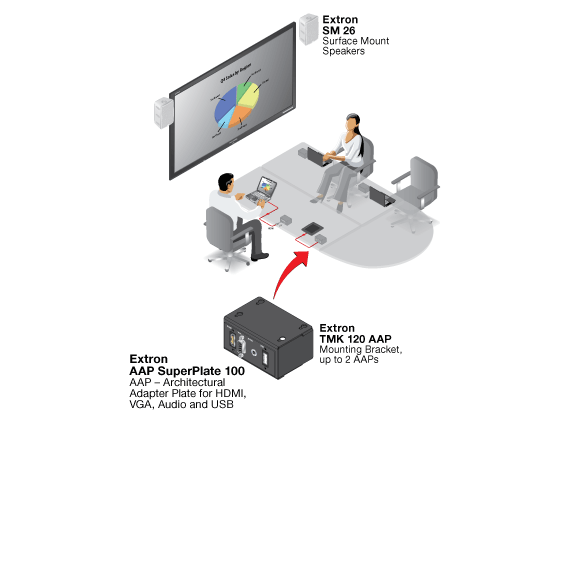

Diagram

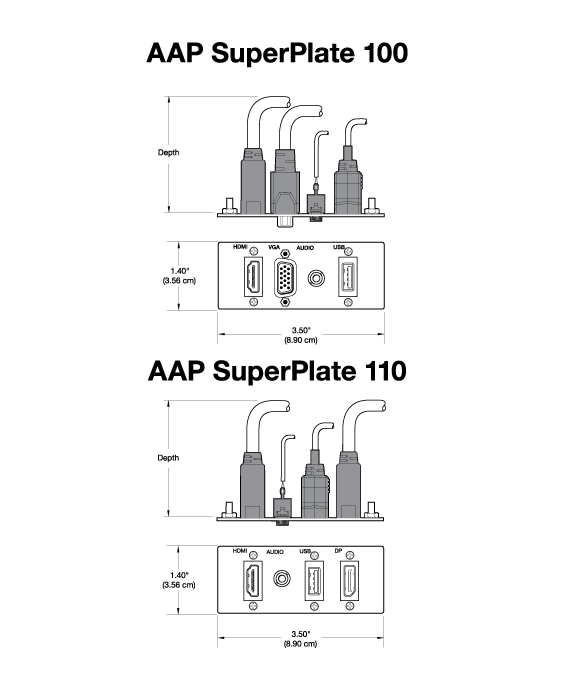

Panel Drawing
