Retired

MLM 104 4GWP

Four-Gang Replacement Wall Mounting Kit for the MLC 104 IP Plus

This product has been retired.

Key Features

For use with the MLC 104 IP Plus MediaLink® Controller and SCP 104 Secondary Control Panel
Fits into a wall, Extron four-gang SMB Surface Mount Box, or EWB External Wall Box
Opening for up to four single space AAP - Architectural Adapter Plates
Available in black or white
Controllers, control panels, and AAPs sold separately
All Features

Overview

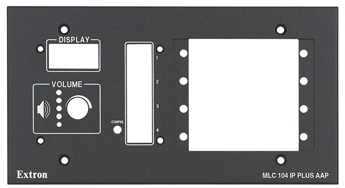

The Extron MLM 104 4GWP is a four-gang replacement wall mounting kit with an opening to accommodate up to four single space AAP - Architectural Adapter Plates for the MLC 104, MLC 104 IP, and MLC 104 IP Plus MediaLink® Controllers or SCP 104 Secondary Control Panel. It is identical to the faceplates found on the MLC 104 AAP, MLC 104 IP AAP, MLC 104 IP Plus AAP, and SCP 104 AAP models. The MLM 104 4GWP fits into a wall, Extron SMB Surface Mount Box, or Extron EWB External Wall Box. It is available in black or white. The MLC 104 IP Plus, SCP 104, and AAPs are sold separately. An optional MR 400 four-gang mud ring is available.

Dimensions: 4.5" H x 8.3" W x 0.1" D (11.4 cm H x 21.2 cm W x 0.3 cm D)
