Control Module Summary Tab

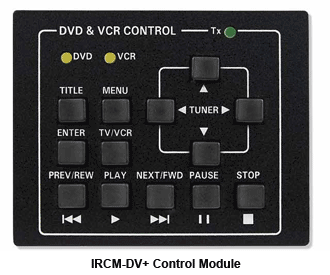

A Control Module is a plate with buttons that can be associated with a System 5 IP, mounted into an MLC 226, or an MLC 104 IP Plus, or mounted into a wall, podium, desk,  or rack.

The buttons on a Control Module can be configured to perform specific device operations,  such as power on a device,  or raise / lower audio volume, etc.

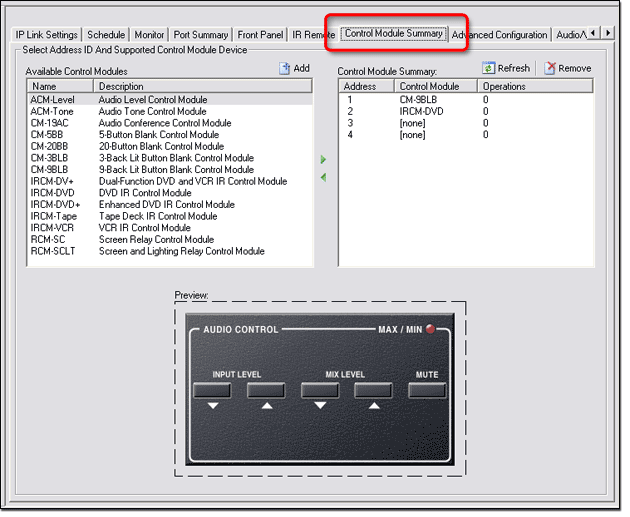

The Control Module Summary tab is used to configure the button operations of a Control Module.

To configure a Control Module button:

  1. Expand the Control Modules folder of a device in the IP Link Tree window (click the + sign).

  2. Select an Address # port.

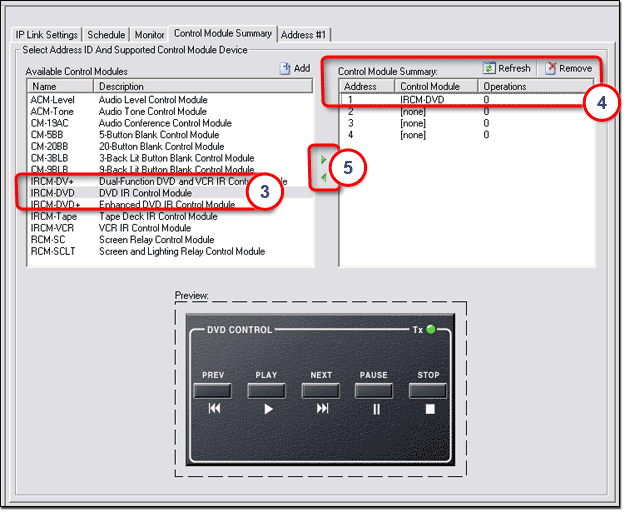

  1. Select an Available Control Module (see below).

  2. Select an Address in the Control Mode Summary window.

  3. Click the Add (top arrow) button.

The Control Module description is displayed in the Control Module Summary window and the IP Link Tree window.

  1. Click on the Control Module description in the IP Link Tree window.

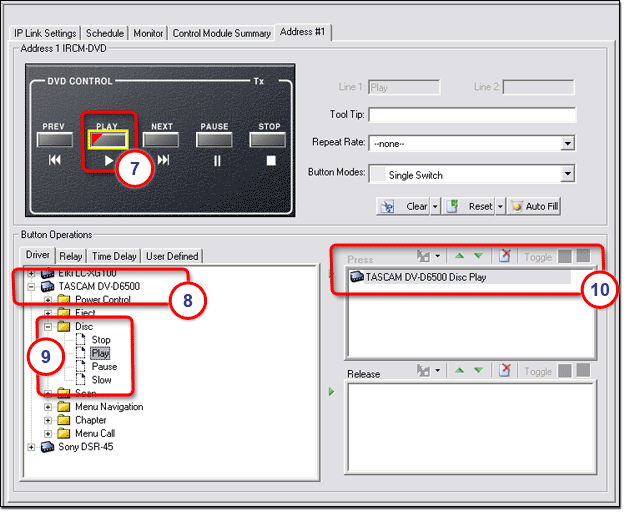

The Address #1 tab opens and displays the selected Control Module (see below).

  1. Select a button.

  2. In the Button Operations window, expand the desired device driver (click the + sign).

  3. Expand the desired folder, (click the + sign), and select the desired button operation.

  4. Drag the selected button operation to either the Press or Release window.

A red triangle in the top, left corner of the affected button (7) indicates that the button has been configured.

In the example below, we have added the Play operation to the Press action of the PLAY button.

Note:  All of the  button functions  must be configured here in the Address #1 tab for them to be operational.

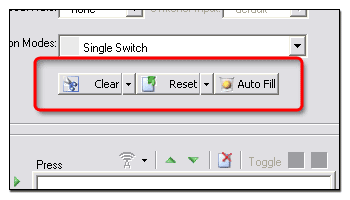

Clear, Reset, or Auto Fill Button Labels

The Clear button is used to clear all of the button captions. (Clear only applies to Control Modules with non-pre-determined button captions).

The Reset button is used to return button operations to their factory default states.

The Clear and Reset buttons have the option to select "this button" or "all buttons."

The Autofill button is used to configure all buttons with pre-determined button operations as defined by the associated device driver.

The Button Operations > Relay, Time Delay, and User Defined tabs allow you to add button operations to each button.

For more information see:
