Device Firmware Requirements

Extron IP Link® devices should have minimum firmware revisions as shown below to work properly with Global Configurator 3.5 and the GlobalViewer® interface.

Device

Minimum Firmware Required

Recommended Firmware Revision

IPCP 505

1.01

1.01 or later

IPI 204

1.00

1.00 or later

IPI 201

1.00

1.00 or later

IPL 250

1.15

1.15

IPL T CR48

1.15

1.15

IPL T PC1/1i

1.12

1.12 or later

IPL T PCS4/4i

1.08

1.12 or later

IPL T S1

1.15

1.15

IPL T S2

 1.15

1.15

IPL T S4

1.15

1.15

IPL T S6

1.15

1.15

IPL T SF24

1.15

1.15

IPL T SFI244

1.15

1.15

MLC 104

1.03

1.03 or later

MLC 104 Plus

1.03

1.03 or later

MLC 104 IP

1.03

1.03 or later

MLC 104 IP Plus

1.00

1.00 or later

MLC 226 IP

1.03

1.05 or later

System 5 IP

2.00

2.0 or later

TLP 700TV

1.00



TLP 700MV

1.00



TLP 710CV

1.05



TLP 710MV

1.05



TLP 710TV

1.05



TLP  350CV

1.01



TLP 350MV

1.02



TLP 1000MV

1.04



TLP 1000TV

1.04



To download new device firmware:

  1. Open a web browser and in the Address field, enter www.extron.com.



  1. Click the Download tab.

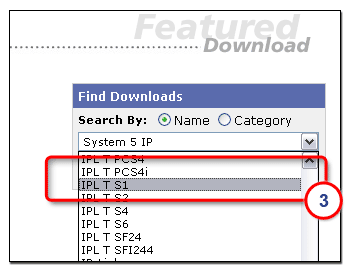

  1. Select the desired device from the drop-down list.

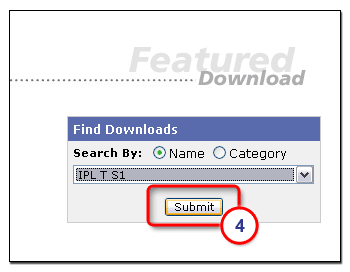

  1. Click Submit.

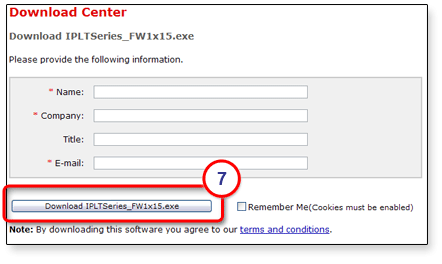

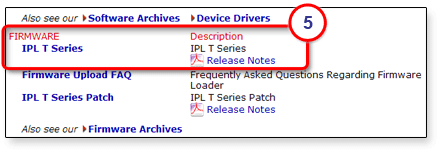

  1. In Firmware section, select the firmware file. The Personal Information form opens.

  1. Complete the Personal Information form.

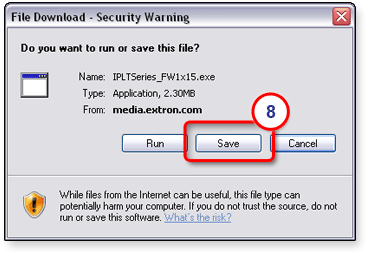

  2. Click Download. The File Download - Security Warning dialog box opens.



  1. Click Save.

  2. Follow the remaining system prompts to save the firmware file on your local PC.

  3. See the user guide for the respective device for instructions on uploading the new firmware to a device.
