Device Firmware Requirements

Extron IP Link® devices should have minimum firmware revisions as shown below to work properly with Global Configurator 3.0 and the GlobalViewer® interface.

Device

Minimum Firmware Required

Recommended Firmware Revision

IPI 201

1.00

1.00 or later

IPI 204

1.00

1.00 or later

IPL 250

1.15

1.15

IPL T CR48

1.15

1.15

IPL T PC1/1i

1.12

1.12 or later

IPL T PCS4/4i

1.08

1.12 or later

IPL T S1

1.15

1.15

IPL T S2

 1.15

1.15

IPL T S4

1.15

1.15

IPL T S6

1.15

1.15

IPL T SF24

1.15

1.15

IPL T SFI244

1.15

1.15

MLC 104

1.03

1.03 or later

MLC 104 Plus

1.03

1.03 or later

MLC 104 IP

1.03

1.03 or later

MLC 104 IP Plus

1.00

1.00 or later

MLC 226

1.03

1.05 or later

System 5 IP

2.0

2.0 or later

To download new device firmware:

  1. Open a Web browser and in the Address field, enter www.extron.com.



  1. Click the Download tab.

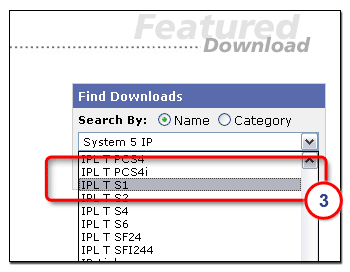

  1. Select the desired device from the drop-down list.

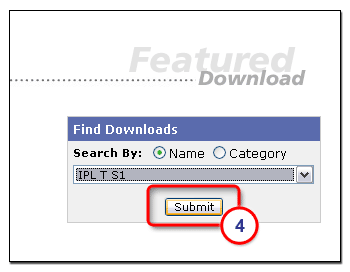

  1. Click Submit.

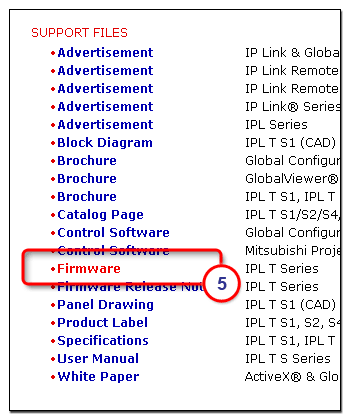

  1. In the SUPPORT FILES column, click Firmware.

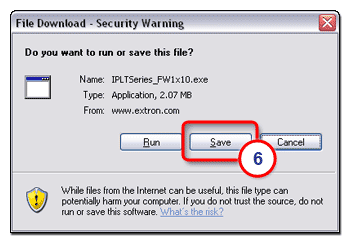

The File Download - Security Warning dialog box opens.

  1. Click Save.

  2. Follow the remaining system prompts to save the firmware file on your local PC.

  3. See the respective device's user manual for instructions to upload the new firmware to a device.
