| USB PowerPlate 400 Series |
|
| General |
|---|
| Power output | |
| USB | |
| USB-C power delivery | Up to 100 W power delivery at the following power profiles:
5 VDC @ up to 3 A
9 VDC @ up to 3 A
12 VDC @ up to 3 A
15 VDC @ up to 3 A
20 VDC @ up to 5.0 A |
| USB-A power delivery | 5 VDC @ up to 2 A, 10 watts max. USB-A power is reduced from 10 W to 2.5 W when a 100 W USB-C power delivery profile is being used. |
| AC (AC AAP model) | 125 VAC, 50-60 Hz, 12 A max. |
| USB power supply | External
Input: 100-240 VAC, 50-60Hz
Output: 25 V, 4.4 A |
| Power consumption |
| Device | 109.5 watts |
| Device and power supply | 123.5 watts |
| Temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing |
| Thermal dissipation (USB) | |
| Device | 40.0 BTU/hr |
| Device and power supply | 87.7 BTU/hr |
| Mounting | |
| Rack mount | Yes, with optional rack plate or mounting frame |
| Furniture or wall mount | Yes, with optional mounting frame or enclosure |
| Enclosure type | Metal (AC AAP, AAP AND MAAP)
High impact plastic blend (Flex55) |
| Enclosure dimensions | |

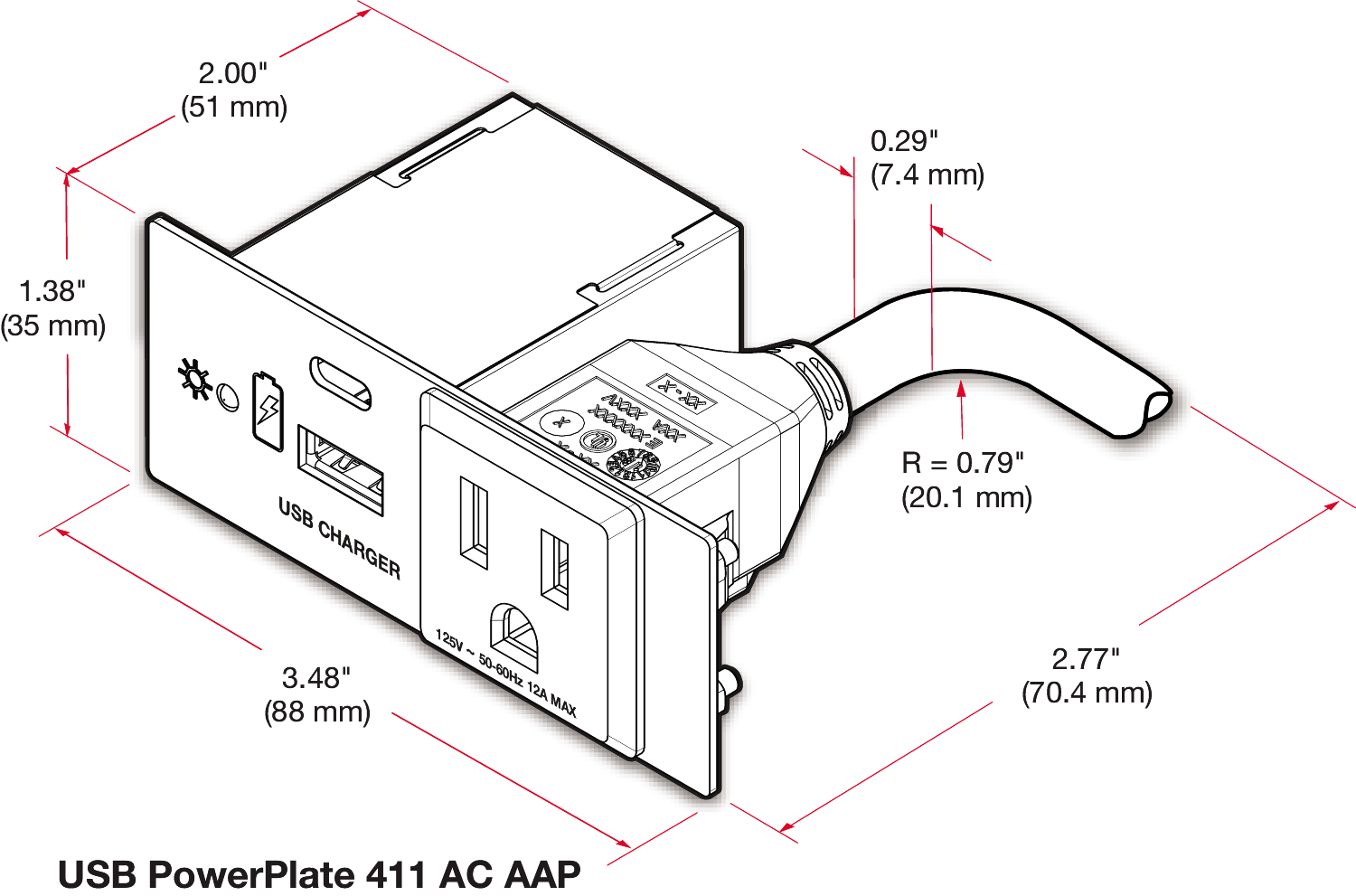

| AC AAP | |
| Connector type | USB Type A female, power only
USB Type C female, power only
NEMA 5-15 R, polarized, 3-pin to NEMA 5-15 P, non-polarized, 3-pin |
| Cable length | AC power cord 9' (2.74 meter) |
| Cable outer diameter | AC power cord 0.29" (7.4 mm) |
| Faceplate | 1.38" H x 3.48" W (35 mm H x 88 mm W) (double space AAP plate) |
| Device | 1.38" H x 3.48" W x 2.00" D
(35 mm H x 88 mm W x 51 mm D)
With AC power cord attached, allow at least 2.77" (70 mm) depth in the furniture. |
| |  |

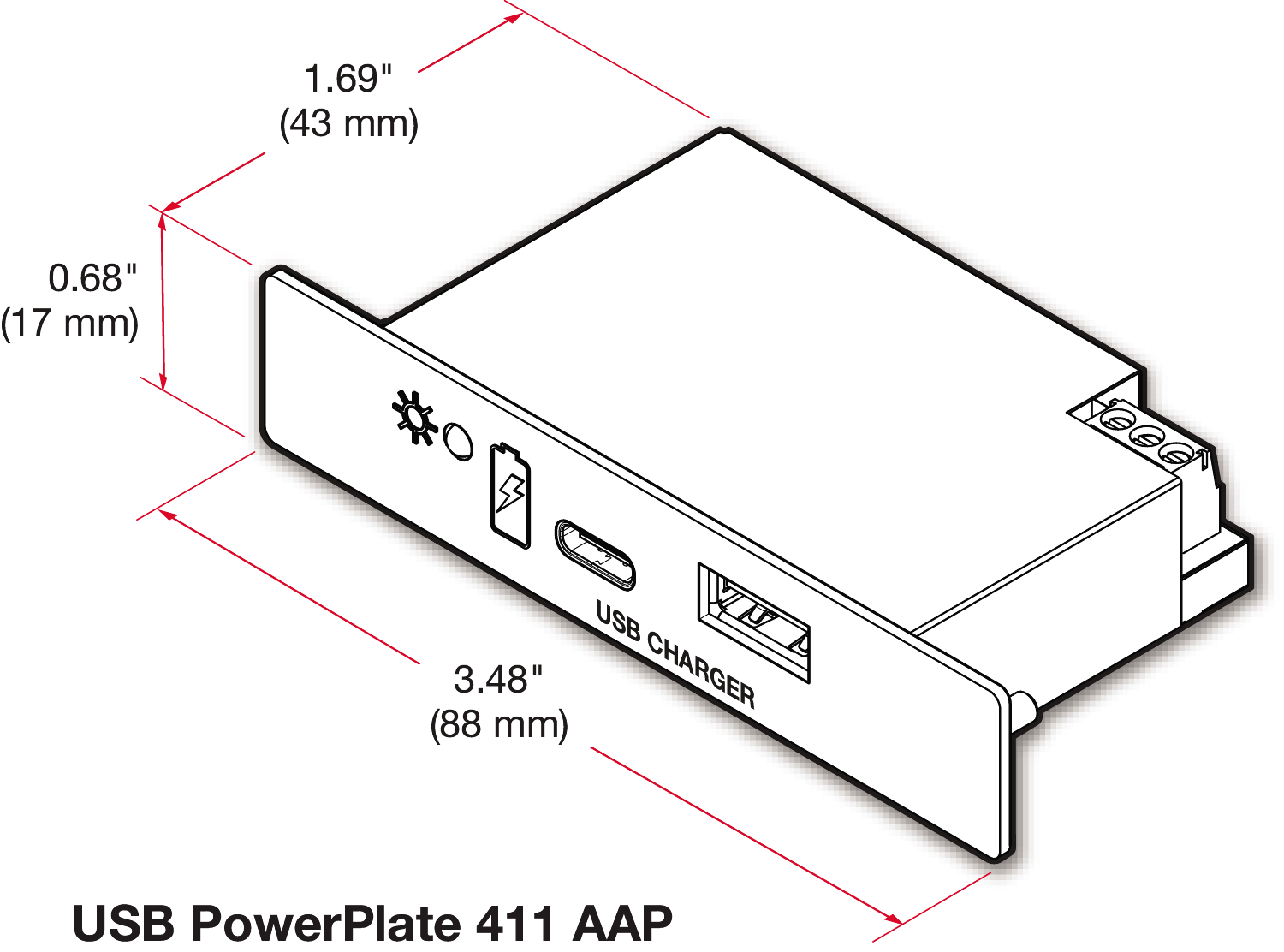

| AAP | |
| Connector type | USB Type A female, power only
USB Type C female, power only |
| Faceplate | 0.68" H x 3.48" W
(17 mm H x 88 mm W) (single space AAP plate) |
| Device | 0.68" H x 3.48" W x 1.69" D
(17 mm H x 88 mm W x 43 mm)
Allow at least 1.85" (47 mm) depth in the wall or furniture for cable management. |
| |  |

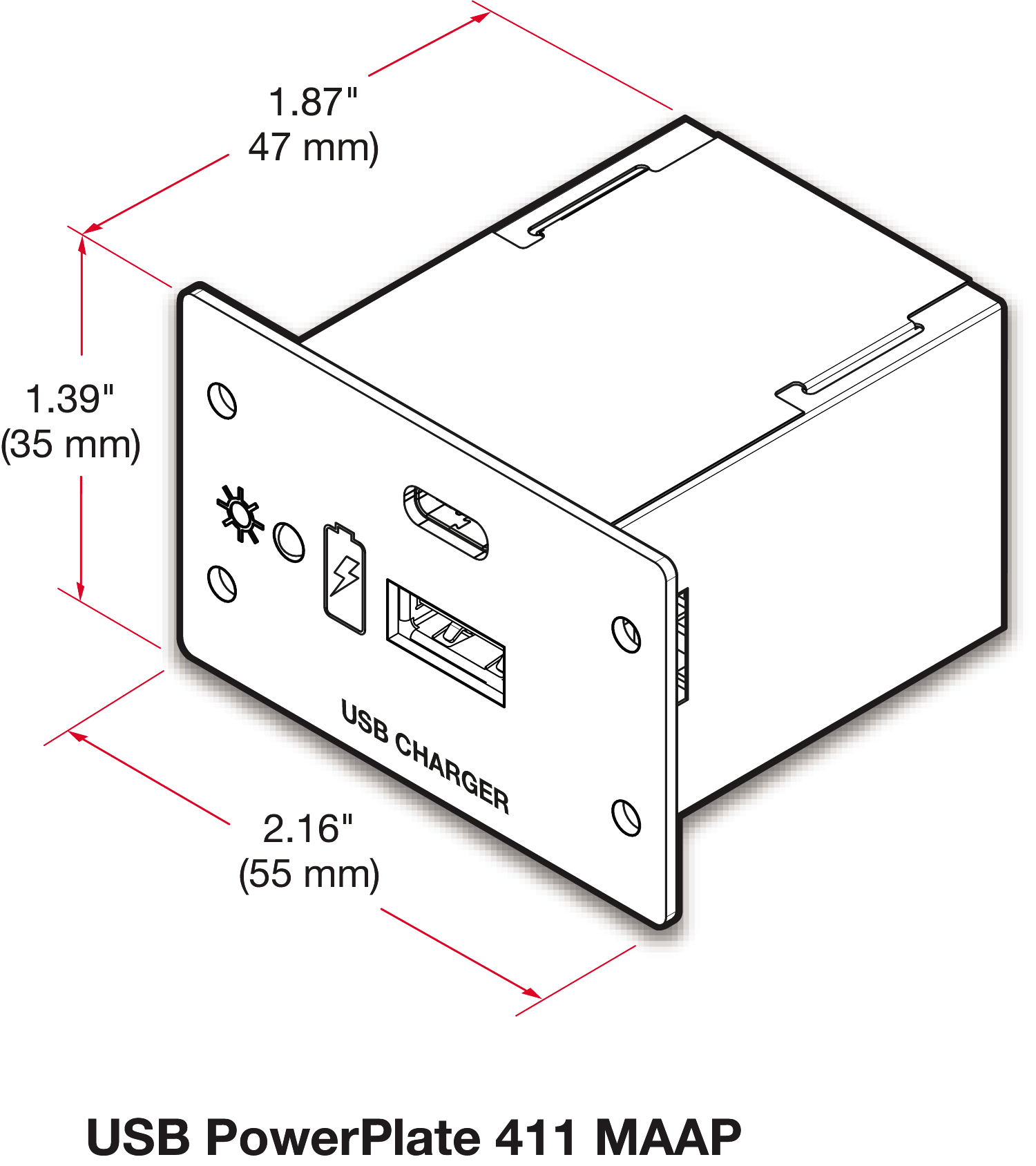

| MAAP | |
| Connector type | USB Type A female, power only
USB Type C female, power only |
| Faceplate | 1.39" H x 2.16" W
(35 mm H x 55 mm W) (double space MAAP plate) |
| Device | 1.39" H x 2.16" W x 1.87" D
(35 mm H x 55 mm W x 47 mm D)
Allow at least 2.00" (51 mm) depth in the wall or furniture for cable management. |
| |  |

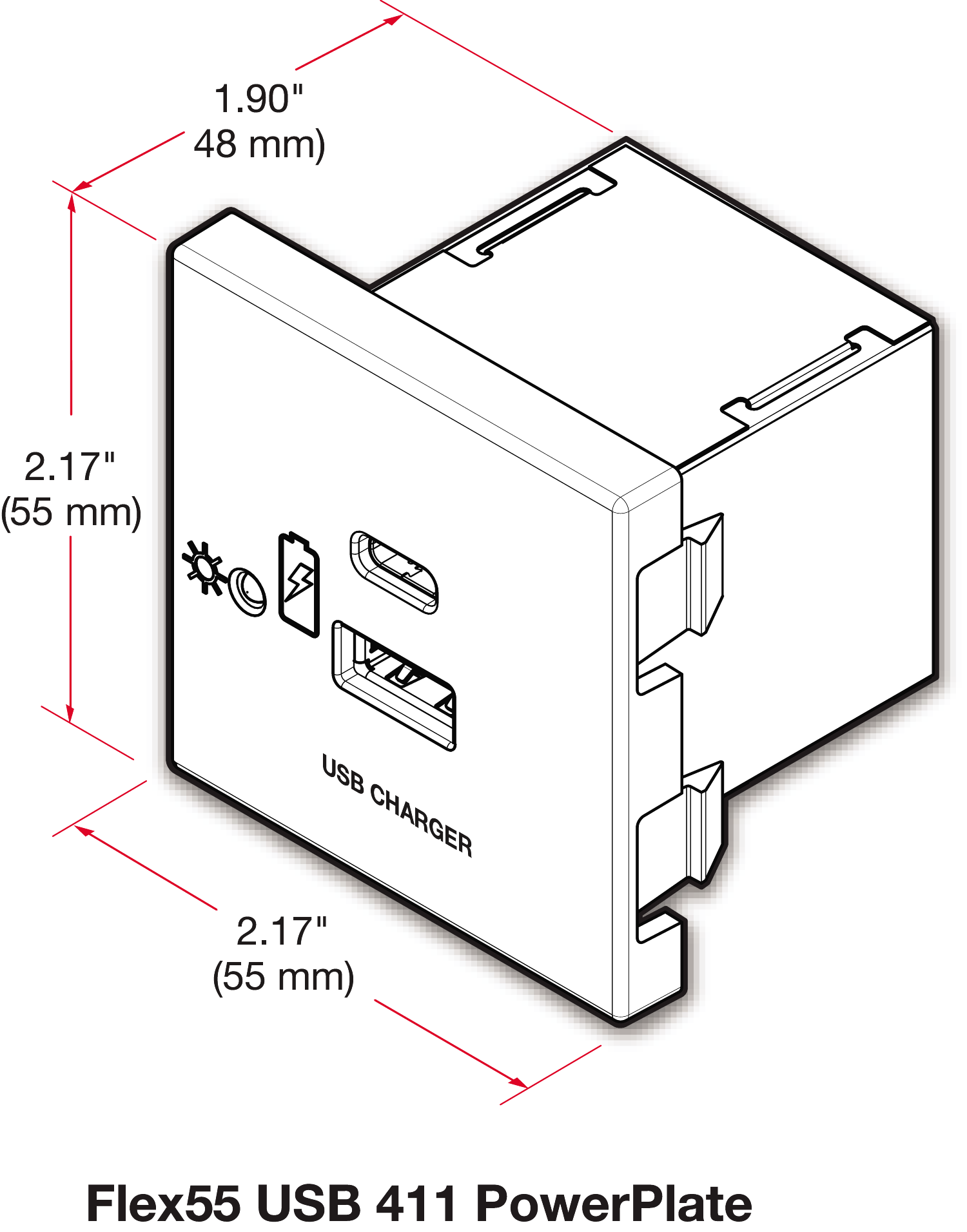

| Flex55 dimensions | |
| Connector type | USB Type A female, power only
USB Type C female, power only |
| Faceplate | 2.17" H x 2.17" W
(55 mm H x 55 mm W) |
| Device | 2.17" H x 2.17" W x 1.90" D
(55 mm H x 55 mm W x 48 mm D)
Allow at least 2.1" (53 mm) depth in the wall or furniture for cable management |
| |  |
| | |
| Product weight | |
| AC AAP | 2.2 lbs (1.0 kg) |
| AAP | 1.2 lbs (0.5 kg) |
| MAAP | 1.2 lbs (0.5 kg) |
| Flex55 | 1.2 lbs (0.5 kg) |
| Shipping weight | |
| AC AAP | 2.6 lbs (1.2 kg) |
| AAP | 2.2 lbs (1.0 kg) |
| MAAP | 2.2 lbs (1.0 kg) |
| Flex55 | 2.1 lbs (1.0 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI Class A, RoHS, WEEE |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | Specifications are subject to change without notice. |
|
| (6617-D1) |
