TLS 835M New

8" Wall Mount TouchLink Scheduling Panel
Key Features
  • 8" IPS touchscreen with 1280x800 resolution and 24-bit color depth
  • Make, view, check-in, and extend reservations in real-time from any device that connects to popular calendar systems
  • Effortless setup, scalable deployment, and easy serviceability
  • Complete system to find, book, and manage rooms
  • Modern, easy-to-use interface
The Extron TLS 835M
Model Version Description Part #
 TLS 835M Black, Wall Mount, Scheduling 60-1996-102
 TLS 835M White, Wall Mount, Scheduling 60-1996-103

The Extron TLS 835M is an eight inch Wall Mount TouchLink® Scheduling panel that combines advanced functionality with a sleek modern design. Built as part of a complete scheduling system, it provides a scalable platform for room booking that includes seamless integration with Extron Wayfinding. The TLS 835M works natively with Extron control systems to deliver a unified approach to managing AV systems and room status. A high-resolution 1280x800 capacitive IPS touchscreen with optically bonded Gorilla® Glass delivers enhanced brightness, viewing angles, touch accuracy, and overall image quality. PoE – Power over Ethernet simplifies installation, while red/green integrated LEDs provide at-a-glance room status.

The customizable interface streamlines room booking and space management, helping organizations stay organized and connected, without adding complexity. With a single touch, users can reserve, check-in, release, and extend flexible workspaces. It integrates directly with popular calendar systems, supports viewing and booking spaces up to seven days ahead, and requires no ongoing fees. Setup is fast with no programming needed.

Room Agent software

All TLS panels are configured with Extron Room Agent™ software. Simply connect the touchpanel to your computer, open the free Room Agent software, fill in the required fields to compose the user interface, and you’re done. Customization options include custom colors and background images, interface text fields to be shown or hidden, depending on user preference.

Room Scheduling Analytics

Room scheduling touchpanels provide the information you need to closely analyze room usage, activity patterns, and occupancy trends across the organization. A Scheduling Activity file with room usage and meeting data can be downloaded concurrently from multiple touchpanels. You can transform this readily-available information with data analytics tools to create powerful reports.

Automatically Release Inactive Rooms

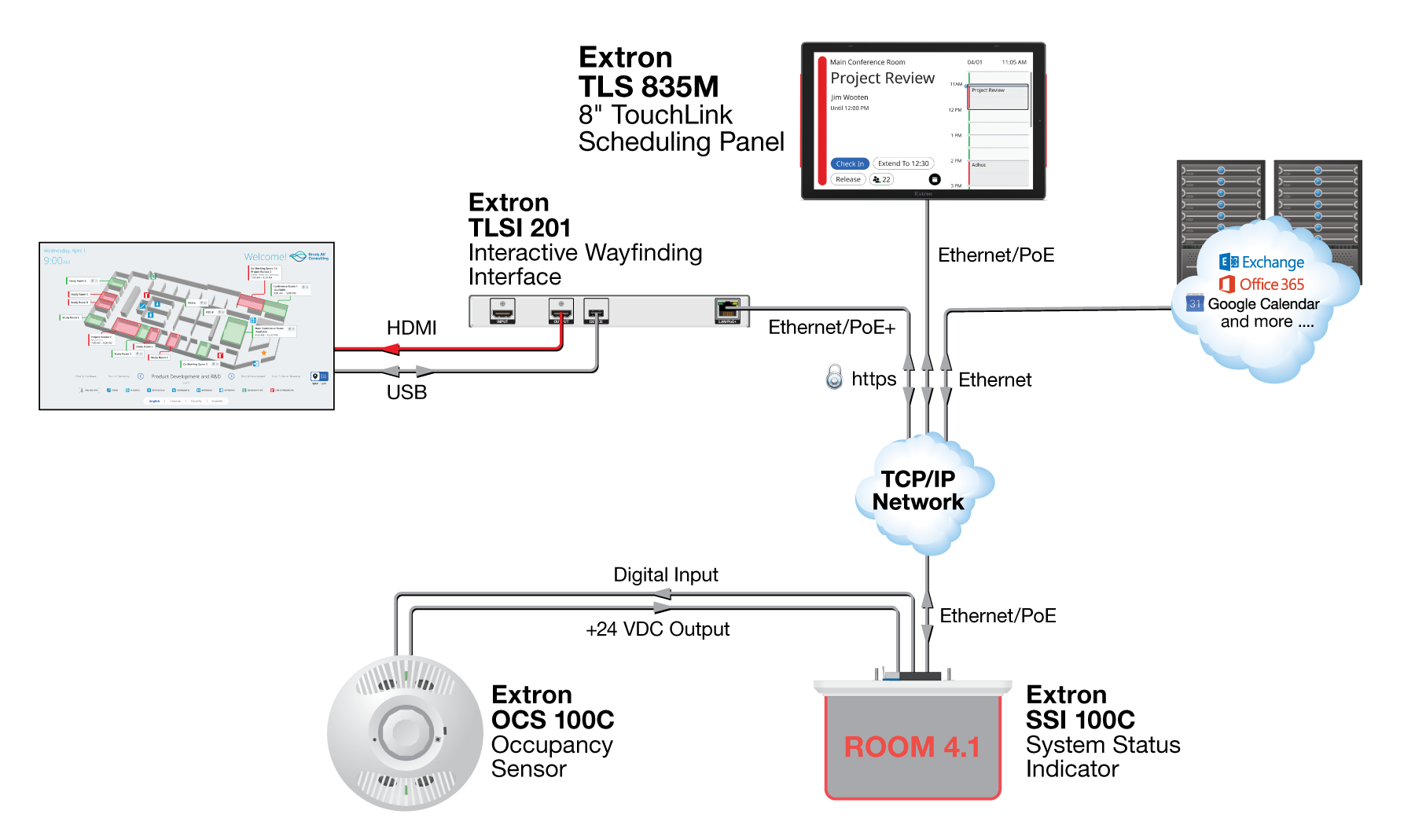

TLS panels equipped with a digital input will work with Extron OCS 100 series occupancy sensors, which monitor room occupancy and, after a user-defined time, release the room back to available status. These sensors provide exceptional coverage using ultrasonic and passive infrared detection technologies. Integrated smart, adaptive software automatically and continuously monitors the environment and adjusts timer settings and sensitivity, providing a lifetime of dependable detection and maintenance-free operation.
