TLP Pro 835M New

8" Wall Mount TouchLink Pro Touchpanel
Key Features
  • 8" IPS touchscreen with 1280x800 resolution and 24-bit color depth
  • Native support for H.264 streaming preview
  • Works with any Extron IP Link Pro xi control processor
  • Transform your touchpanel into a standalone Pro xi Series control system using LinkLicense for TLP Control Processor and the TLCA 2 TouchLink Control Port Expansion Adapter
  • Multi-color status indicators
  • Optically bonded Gorilla® Glass screen is tough, scratch resistant, and smudge resistant
The Extron TLP Pro 835M
Model Version Description Part #
 TLP Pro 835M Black - Wall Mount 60-1996-02
 TLP Pro 835M White - Wall Mount 60-1996-03
 LinkLicense User Interface Upgrade 79-2546-01
 LinkLicense TLP Control Processor Upgrade 79-2577-01
 TLCA 2 TouchLink Control Port Expansion Adapter - USB-C 60-1748-20

The Extron TLP Pro 835M is an 8-inch Wall Mount TouchLink® Pro Touchpanel designed with advanced features and a fully customizable interface. A stunning new IPS display with optically bonded Gorilla® Glass provides enhanced brightness, viewing angles, and touch accuracy. The H.264 streaming input provides convenient video preview that supports simple, single-cable installation for power, network, and video. Multi-color status indicators provide immediate visual feedback for system states, alerts, or room availability. It is ideal for any environment requiring a wall mountable touchpanel with advanced features and a refined, modern look.

The TLP Pro 835M works with any Extron IP Link Pro xi control processor and is designed for use in AV system applications that require complete, interactive control of a broad range of source devices. TouchLink Pro touchpanels operate using standard network infrastructure and are easy to install with reliable and cost-effective Ethernet cable.

All TouchLink Pro touchpanels can be customized using Extron GUI Designer software. This powerful interface design software offers ready-to-use templates for a wide variety of rooms and presentation environments. These designs may be used as is, or customized for the application by simply changing individual graphic elements.

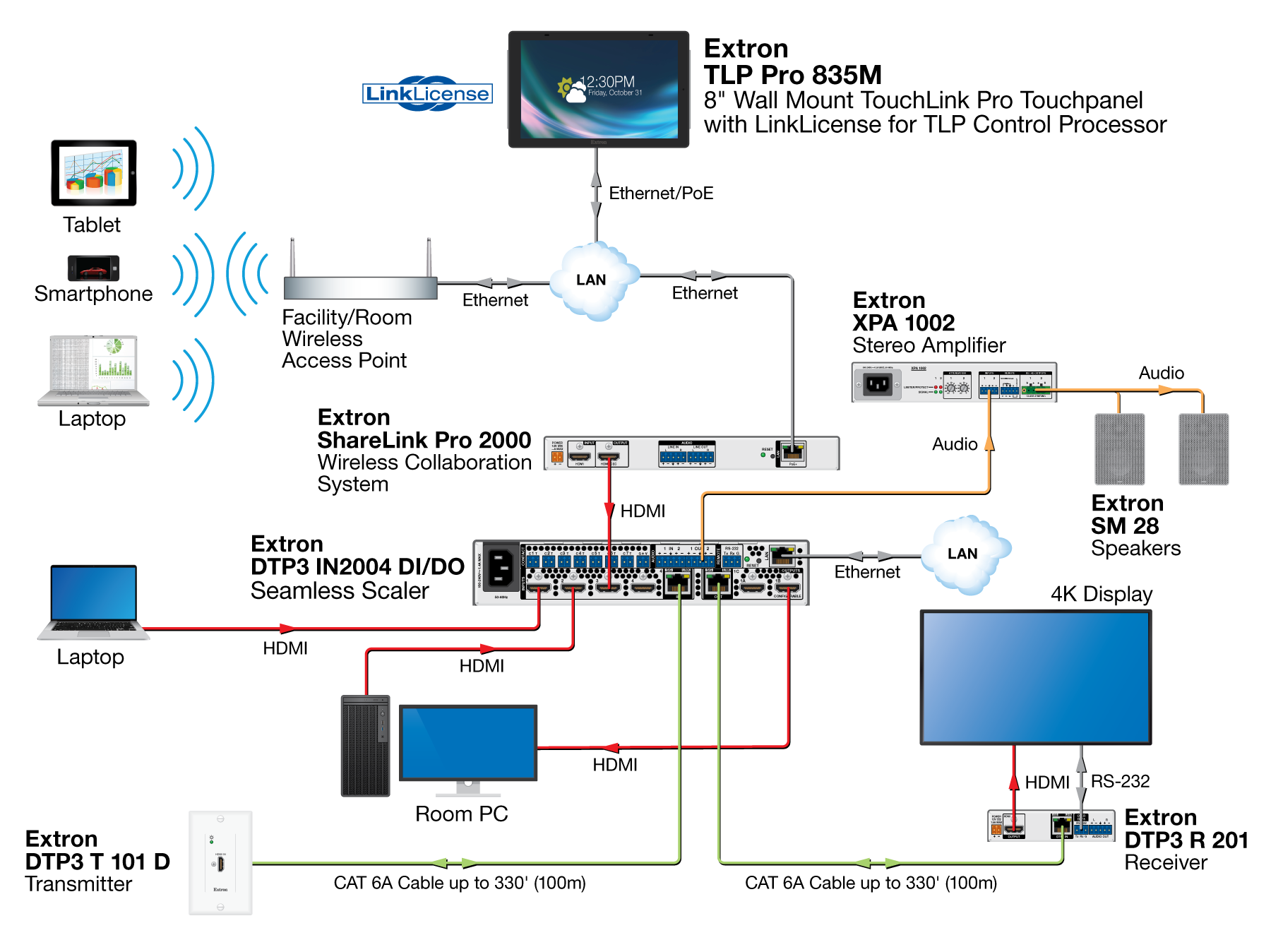

Transform This Touchpanel Into a Standalone xi Series Control System
Extron LinkLicense for TLP Control Processor is a powerful, easy way to turn your TouchLink Pro touchpanel into a full-featured, standalone Pro xi Series control system. With this LinkLicense, you can control your AV devices over the network directly from the Ethernet port on the touchpanel. And, by adding the optional TLCA 2 TouchLink Control Port Expansion Adapter, you can control a broad range of system devices directly from the touchpanel using the variety of ports on the control adapter.

The Extron TLCA 2 is a TouchLink Control Port Expansion Adapter designed to add traditional control ports to your TLP Pro 35 Series touchpanel installed with a LinkLicense for TLP Control Processor. It features two bidirectional serial ports, one digital input, one IR port, and two relays for control of sources, directly at the touchpanel.
