RCP 101 Series

Remote Control Panels for SMP Series Products
Key Features
  • Backlit transport controls for SMP Series products
  • USB port supports thumb drives and external portable drives
  • Available versions include decorator-style, MK, and EU
  • Compatible with Flex55 mounting kits and enclosures - RCP 101 EU
  • Status and alarm indicators with buzzer
The Extron RCP 101 Series
Model Version Description Part #
RCP 101 D SMP Series Remote Control Panel – Decorator-Style 60-1598-01
RCP 101 MK SMP Series Remote Control Panel – MK Mount 60-1598-22
RCP 101 EU SMP Series Remote Control Panel – Flex55 and EU 60-1598-32

Extron RCP 101 Series remote control panels feature backlit transport controls for remote operation of Extron SMP Series products. A USB port provides convenient access to a thumb drive or external portable storage. RCP 101 panels have status and alarm indicator lights with an audible buzzer. A 15 foot (4.6 meter) USB cable is included. The RCP 101 panels may be used with Extron USB Extender Plus Series twisted pair extenders to support distances up to 330 feet (100 meters). Available in decorator-style, MK, and EU versions; the EU version is compatible with Flex55 enclosures or EU junction boxes. RCP 101 Series panels include black and a white faceplates to compliment a wide range of environments. MK model is available in white only.

Features

OPTIONAL ACCESSORIES
  USB Extender Plus Series Twisted Pair Extender for USB Peripherals
  Flex55 100 Mounting Kit Series Mounting Kits for Flex55
  SMB 210 Series Low Profile Surface Mount Boxes for Extron Flex55 and EU Products
  EWB 210 Series External Wall Box for Extron Flex55 and EU Products
  UCM 100 Universal Controller Mount for Flex55 and EU Modules
  AAP 314 Three-Gang AV Connectivity Mounting Frame for Decorator-Style and AAP Modules
  AAP 424 Four-Gang AV Connectivity Mounting Frame for Decorator-Style and AAP Modules
  CCM 155 Cable Cubby Series Mount for Flex55 Device Modules
RELATED PRODUCTS
  SMP 111 Single Channel H.264 Streaming Media Processor
  SMP 351 H.264 Streaming Media Processor
  SMP 352 Dual Recording H.264 Streaming Media Processor

Specifications

RCP 101
Communication
   USB storage port 1 front panel female USB Type A (max. current 1.5A)
   USB control port 1 rear panel female mini USB B, connects to the control port on the SMP device.
   USB standards USB 2.0, high speed host (480Mbps)
General
   Power supply External
Input: 100-240 VAC, 50-60 Hz
Output: 12 V, 1.5 A, 18 W
   Power consumption
      RCP 101 D 3.1 W
      RCP 101 EU/MK 3.2 W
   Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
   Cooling Convection, no vents
   Thermal dissipation
      RCP 101 D 1.8 BTU/hr
      RCP 101 EU/MK 2.4 BTU/hr
   Mounting
      Furniture or wall mount
         RCP 101 D Mounts to standard 1-gang US enclosures or to surfaces with included mud ring
         RCP 101 EU Mounts to standard 1-gang enclosures with 60 mm mounting centers. Device module fits Flex55 mounting frames that accept 55 mm x 55 mm modules.
         RCP 101 MK Mounts in a standard MK Wall Frame for United Kingdom Junction Boxes
   Enclosure type High impact plastic blend, metal mounting bracket
   Enclosure dimensions
      RCP 101 D Fits the opening in a standard 1-gang US wallplate
         Wallplate 4.50" H x 2.79" W x 0.38" D
(114 mm H x 71 mm W x 9.7 mm D)
         Device 2.7" H x 1.6" W x 1.3" D
(69 mm H x 41 mm W x 33 mm D)
(Depth includes connectors and buttons. Allow enough depth in the wall or furniture for the device plus cable clearance.)

      RCP 101 EU Fits the opening in a 1-gang EU, Jung AS 500 wallplate, Extron Flex55 mounting system, or other European frame that accepts 55mm x 55mm modules
         Wallplate 3.17" H x 3.17" W x 0.51" D
(81 mm H x 81 mm W x 13 mm D)
         Device 1.80" H x 1.80" W x 1.60" D
(45 mm H x 45 mm W x 40 mm D)
(Depth includes connectors and buttons. Allow enough depth in the wall or furniture for the device plus cable clearance.)
      RCP 101 MK Mounts in a standard MK Wall Frame for United Kingdom Junction Boxes
         Wallplate 3.39" H x 3.39" W x 0.40" D (1-gang)
86 mm H x 86 mm W x 10 mm D)
         Device 1.80" H x 1.80" W x 1.60" D
(45 mm H x 45 mm W x 41 mm D)
Fits mounting frames that accept 55 mm x 55 mm modules.
(Allow at least 1.9" [47 mm] in the junction box for device plus cable clearance.)

   Product weight
      RCP 101 D 1.0 lb (0.5 kg)
      RCP 101 EU 1.0 lb (0.5 kg)
      RCP 101 MK 1.0 lb (0.5 kg)
   Regulatory compliance CE, C-Tick, c-UL, FCC Class A, ICES, RoHS, UL, WEEE
   Accessibility Complies with the appropriate requirements of Section 508 of the Rehabilitation Act (29 U.S.C. 794d).
   Product warranty 3 years parts and labor
   Everlast power supply warranty 7 years parts and labor
    NOTE     All nominal levels are at ±10%.
    NOTE     Specifications are subject to change without notice.
    NOTE     Shipping weights and package dimensions are available at www.extron.com under the specifications tab for the product.
(4345-D3)
Shipping Dimensions and Weights
    Part # Height Width Depth Weight
    60-1598-01 2.75" (7.0 cm) 9.0" (22.9 cm) 13.5" (34.3 cm) 2.2 lbs (1.0 kg)
    60-1598-22 2.75" (7.0 cm) 9.0" (22.9 cm) 13.5" (34.3 cm) 2.2 lbs (1.0 kg)
    60-1598-32 2.75" (7.0 cm) 9.0" (22.9 cm) 13.5" (34.3 cm) 2.2 lbs (1.0 kg)

Diagram

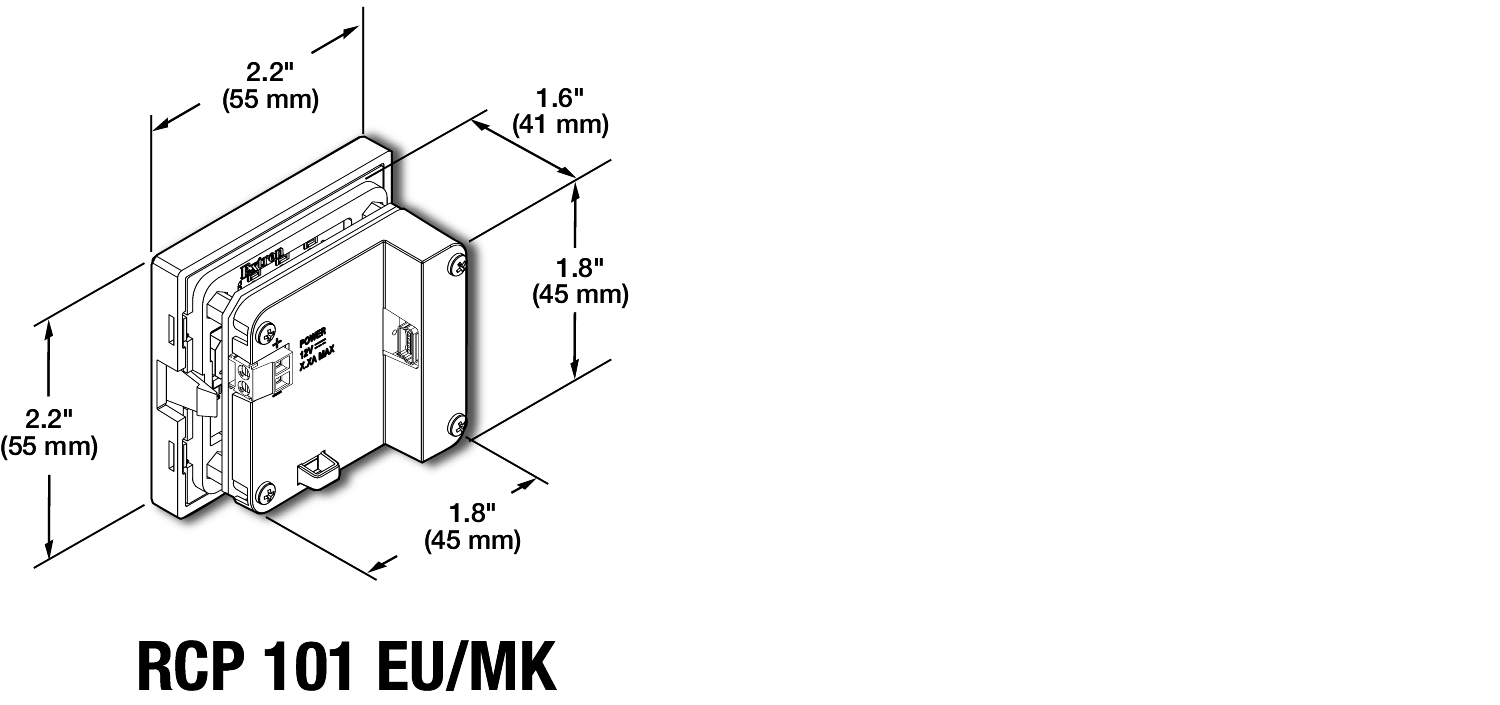

Panel Drawing

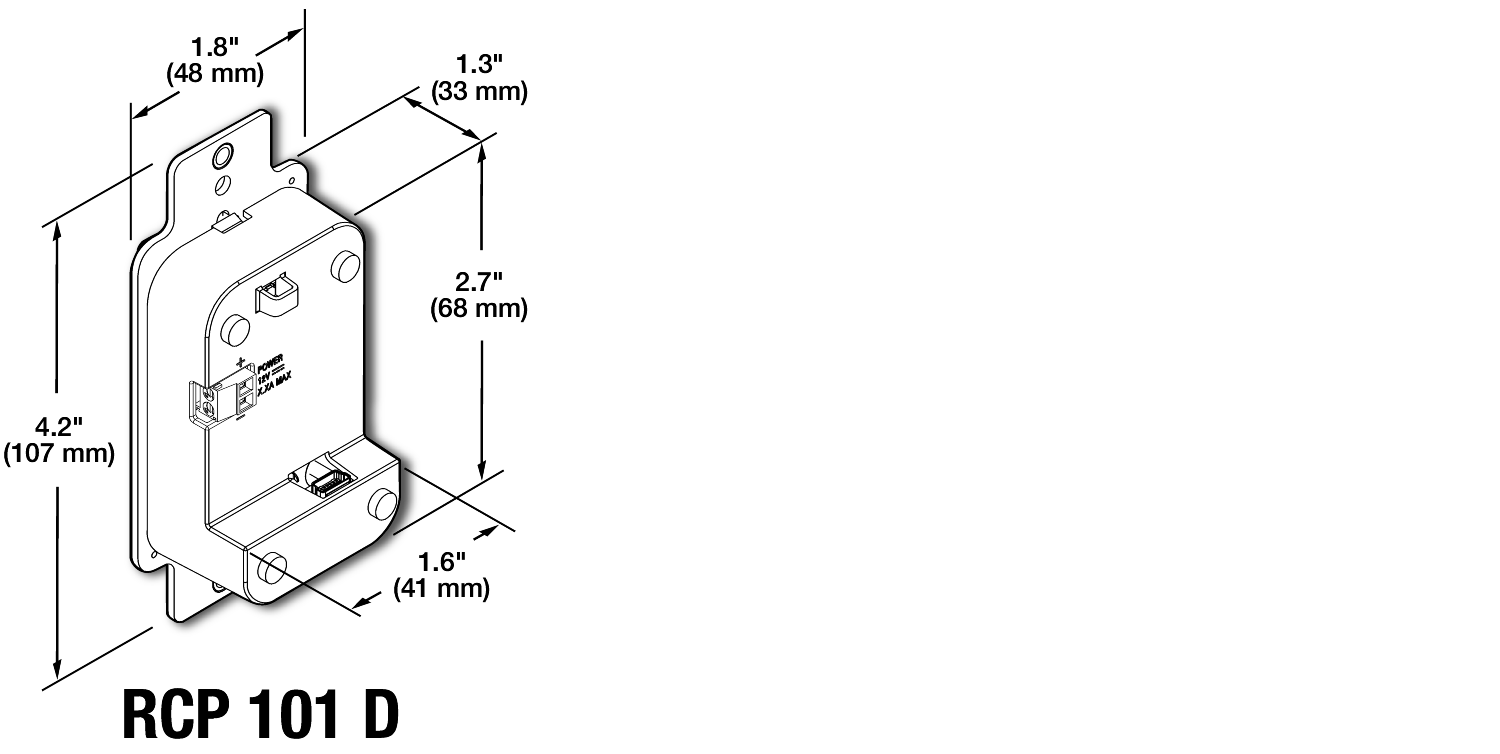

Panel Drawing
