PMK 550 Retired

PoleVault Pole Mount Kit
Key Features
  • Available exclusively as part of a PoleVault® System
  • Securely mounts PoleVault equipment above the projector
  • Three piece construction with a large base to accommodate PoleVault equipment
  • Lightweight design
  • Built-in cable management
  • Unique design provides access to PoleVault equipment for setup and maintenance while mounted to the pole

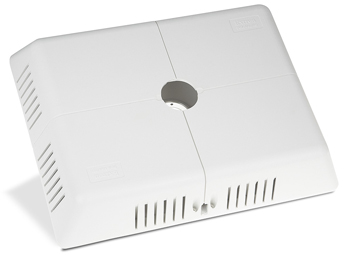

The Extron PMK 550
Model Version Description Part #
 PMK 550 PoleVault Pole Mount Kit 70-655-03 Retired
 PMK 550 PoleVault Pole Mount Kit 70-655-13 Retired

This product has been retired.
Suggested Replacement
PMK 560

The PMK 550 PoleVault Pole Mount Kit is a secure equipment enclosure developed exclusively for PoleVault Systems. The PMK 550 allows the PoleVault switcher and power supply to be safely located above a pole mounted projector to reduce tampering and equipment theft. To ease setup and maintenance tasks, the covers on the PMK 550 can be easily removed for direct access to the PoleVault equipment without removing the projector from the pole.

Features

  • Available exclusively as part of a PoleVault® System
  • Securely mounts PoleVault equipment above the projector — Prevents unauthorized access and reduces tampering or theft.
  • Three piece construction with a large base to accommodate PoleVault equipment — Provides adequate space for PoleVault equipment with designated locations for the switcher and power supply.
  • Lightweight design — Reduces ceiling structure support requirements for easy installation.
  • Built-in cable management — Several tie down points for proper strain relief and dressing of excess cable.
  • Unique design provides access to PoleVault equipment for setup and maintenance while mounted to the pole
SIMILAR PRODUCTS
  PPS 25 Priority Page Sensor w/Cable & Metal Junction Box
  PVT CV D PoleVault Composite Video and Stereo Audio Input - Decorator-Style Wallplate

Specifications

PMK 550
General
   Mounting
      Pole mount Mountable to round projector mount poles, either standard 1.5" (3.8 cm) NPT pipes or pipes with an outer diameter of 1.85" to 1.95" (4.7 cm to 5.0 cm) using included hardware
   Maximum load capacity 15 lbs (6.8 kg)
   Material
      Base plate Aluminum
      Plate covers High impact plastic

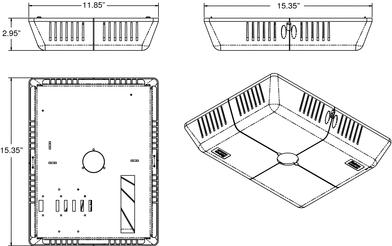

   Dimensions 3.0" H x 15.4" W x 11.9" D
(7.6 cm H x 39.1 cm W x 30.2 cm D)

   Product weight 2.4 lbs (1.1 kg)
   Shipping weight 3 lbs (2 kg)
   Vibration ISTA 1A in carton (International Safe Transit Association)
   Regulatory compliance
      Safety CE, CUL, UL as an accessory for use with a UL Listed mount and projector
   Product warranty 3 years parts and labor
    NOTE     Specifications are subject to change without notice.
(7.6-100808-D1)

Diagram

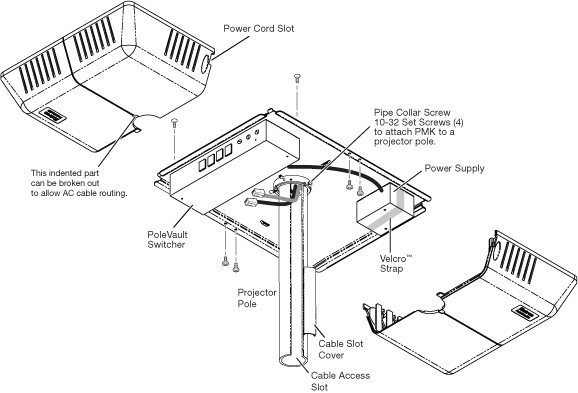

PMK 550 System Diagram

Panel Drawing

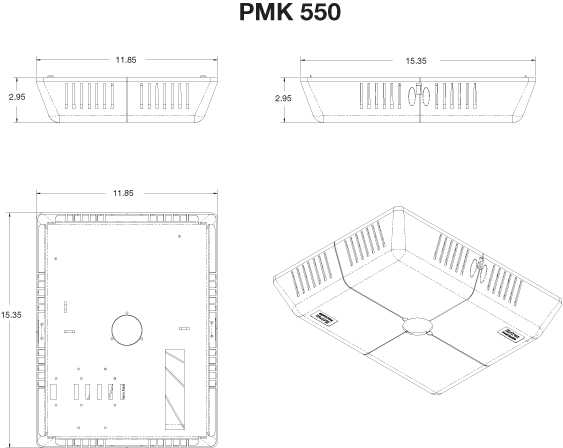

PMK 550 Panel Drawing
