MMK 6 New

Mullion Mount Kit for TLS 1035M
Key Features
  • Used to securely mount a TLS 1035M on the vertical frame that separates a door opening from the adjacent glass wall
  • Designed with aesthetics that blend in with the design of the TLS panel and mullion frame
  • LED lights will still be visible on either side of the panel
  • Available in black and aluminum matte finishes
  • Low profile, ADA-compliant mount that projects less than 4” from the mullion frame for a sleek, unobtrusive appearance
  • Optional MMK 5/6 Angle Brackets for upward display tilt at ADA-compliant heights
The Extron MMK 6
Model Version Description Part #
 MMK 6 For 1035M - Black 70-1333-32
 MMK 6 For 1035M - Aluminum 70-1333-38
 MMK 5/6 Angle Brackets - Black For MMK 5/6 - Black, pack of 5 70-1371-22
 MMK 5/6 Angle Brackets - Aluminum For MMK 5/6 - Aluminum, pack of 5 70-1371-28

The Extron MMK 6 mullion mount kit is specifically designed for the TLS 1035M scheduling touchpanel. It allows the panel to be mounted securely on the vertical frame that separates a door opening from the adjacent glass wall. From outside the room, the mount provides refined aesthetics that blend seamlessly with the design of the panel and mullion frame. The LED lights are fully visible on either side of the panel. These kits are available in black and aluminum finishes.

Features

  • Used to securely mount a TLS 1035M on the vertical frame that separates a door opening from the adjacent glass wall
  • Designed with aesthetics that blend in with the design of the TLS panel and mullion frame
  • LED lights will still be visible on either side of the panel
  • Allows for detachment of the panel for end user serviceability without having to remove or disassemble the mounting accessory
  • Provides a clean, inconspicuous appearance from inside the room
  • Available in black and aluminum matte finishes
  • Low profile, ADA-compliant mount that projects less than 4” from the mullion frame for a sleek, unobtrusive appearance
  • Optional MMK 5/6 Angle Brackets for upward display tilt at ADA-compliant heights
  • A mounting template is downloadable to simplify alignment and installation
COMPATIBLE USER INTERFACES
  TLS 1035M 10.1" Wall Mount TouchLink Scheduling Panel
SIMILAR PRODUCTS
  AMK 35 Series Angle Mount Kits for TLP Pro 35 Series Touchpanels
  SMK 35 Series Surface Mount Kits for TLP Pro 35 Touchpanels

Specifications

MMK 5 and 6
MKK 5
Mounting
   Mounting Mounts into mullion frames
   Enclosure material  Metal
Enclosure Dimensions ​ 4.26" H x 7.97" W x 0.83" D
(108 mm H x 202 mm W x 21 mm D
    MMK 5 dimensions drawings with angle brackets
General
   Product weight 0.50 lbs (0.23 kg)
   Regulatory compliance RoHS and WEEE
   Product warranty 3 years parts and labor
MMK 6
Mounting
   Mounting Mounts into mullion frames
   Enclosure material  Metal
Enclosure Dimensions ​5.37" H x 9.71" W x 0.83" D
(136 mm H x 246 mm W x 21 mm D)
    MMK 6 dimensions with angle brackets
General
   Product weight  0.70 lbs (0.32 kg)
   Regulatory compliance RoHS and WEEE
   Product warranty 3 years parts and labor
(6484-D1)
Shipping Dimensions and Weights
    Part # Height Width Depth Weight
    70-1333-32 9.0" (22.9 cm) 12.0" (30.5 cm) 1.0" (2.5 cm) 0.78 lbs (0.36 kg)
    70-1333-38 9.0" (22.9 cm) 12.0" (30.5 cm) 1.0" (2.5 cm) 0.78 lbs (0.36 kg)
    70-1371-22 10.0" (25.4 cm) 12.0" (30.5 cm) 1.25" (3.2 cm) 0.75 lbs (0.34 kg)
    70-1371-28 10.0" (25.4 cm) 12.0" (30.5 cm) 1.25" (3.2 cm) 0.75 lbs (0.34 kg)

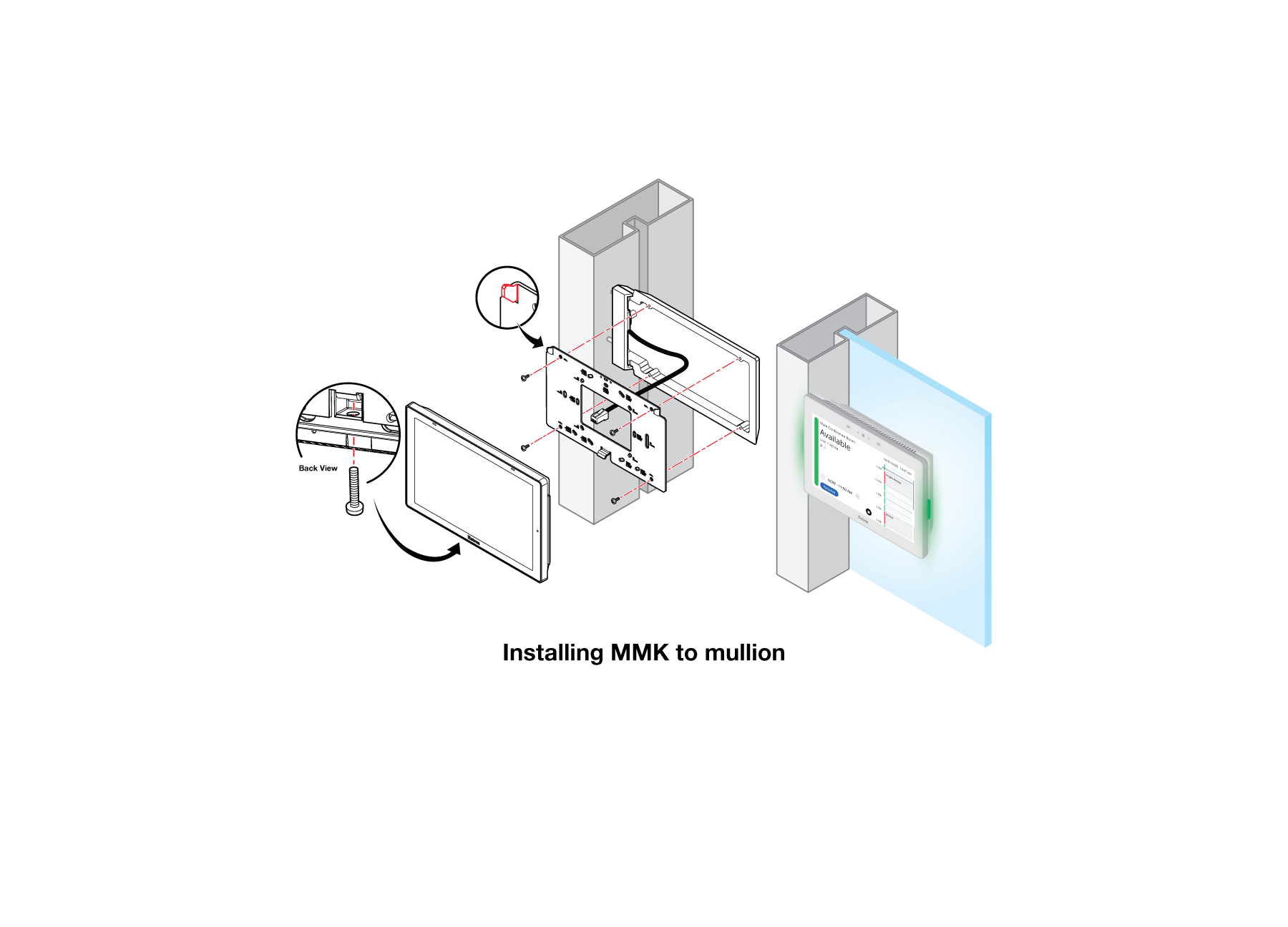

Diagram

MMK 6 Diagram
