MLC 52 RS VC Retired

Basic MediaLink Controller with IR, RS-232, and Volume Control

Key Features

Unidirectional RS-232 and IR port for universal display control
Integrated volume control knob - Provides remote volume control of any Extron power amplifier or preamplifier with a remote volume control port
Configurable buttons
Configuration options: IR learning, IR beaming, and Extron's easy-to-use configuration software
Includes black and white two-gang, high-impact plastic mounting faceplates

Model	Version Description	Part #
MLC 52 RS VC	Black & White Faceplates	60-745-12	Retired
MLC 52 RS VC	Brushed Aluminum Faceplate	60-745-14	Retired

This product has been retired.

The Extron MLC 52 RS VC Basic MediaLink^® Controller is a two-gang, economical control panel with an integrated volume control knob for any classroom environment. With IR and unidirectional RS-232 display control, the MLC 52 RS VC provides easy input selection, power, and volume control, making classroom AV operations simple.

Simple, Consistent Control in Every Room

The MLC 52 RS VC acts as an extended remote control panel, providing user-friendly control for a display's power, volume, and input selection. Because the MLC 52 RS VC offers a central point of control for a display device's key functions, it eliminates the need for the display's IR remote control, making operations much more efficient. With the MLC 52 RS VC, there are no misplaced remotes to search for, no confusing menus to navigate, and no dead batteries. No matter what brand of display is installed in each presentation venue, the MLC 52 RS VC MediaLink Controller always provides a consistent control method from room to room. Presenters with little or no training can walk into any MediaLink equipped classroom and operate the AV system with minimal effort.

Integrated Volume Control

The Extron MLC 52 RS VC features an integrated volume control knob for remote volume control of any Extron power amplifier or preamplifier with a remote control volume port. Captive screw connectors on the back panel provide for quick and easy connectivity to the amplifier's remote volume control port. The rotary volume control knob enables easier adjustment and ensures precise volume levels.

Configurable Buttons for Flexible Control Options

No programming knowledge is necessary to install MLC 52 MediaLink Controllers. Three of the four lower buttons on the MLC 52 RS VC ship pre-labeled with the following labels: VCR, DVD, and PC. The fourth button is not pre-labeled. Using the intuitive setup software provided, these buttons can be configured to send out any IR or RS-232 command supported by the display, making it easy to customize the controller to meet the needs of most single-display AV systems. For example, three of the four buttons could be configured for input selection, with the fourth button dedicated to video mute or auto image. Each button can store up to four separate commands, providing additional flexibility to meet the specific control requirements for most display devices. When a button is configured for Macro mode, all of the stored commands associated with that button are sent with a single button press. In Toggle mode, the button steps through a series of two, three, or four commands, issuing a single command with each press of the button.

Three Easy Ways to Configure

The MLC 52 RS VC enables integrators to choose any of three methods when configuring the controllers. When used with the supplied Windows®-based configuration software, installation files can be saved and used to duplicate additional MLC 52 models. The files can also be archived for later use.

IR learning - Allows the MLC 52 RS VC to be set up directly from the IR remote without the need for software and a PC.
IR beaming - Quickly and easily duplicates complete configuration from one MLC 52 model to another without cables or software.
Extron's easy-to-use configuration software - Provides fast and simple setup via RS-232 when combined with one of many IR drivers available on the Extron Web site.

Features

Unidirectional RS-232 and IR port for universal display control — The MLC 52 RS VC has dedicated ports for communicating with virtually any projector or flat panel display via IR and/or unidirectional RS-232 wired serial control. Display control drivers can be downloaded from the Extron Web site and used to configure the controller.

Discrete ON and OFF display power controls — Simplify system operations and eliminate the need for a handheld IR display remote.

Integrated volume control knob - Provides remote volume control of any Extron power amplifier or preamplifier with a remote volume control port

Configurable buttons — Can be set up to control display power, volume, input selection, or any other IR/RS-232 command supported by the display.

Macro and Toggle modes for each button — Each button can be set to send out multiple IR commands. A button configured for Macro mode can send several commands in sequence. A button configured for Toggle mode will sequence between up to four different commands, sending out a different command each time the button is pressed.

Backlit buttons can be custom labeled for easy identification — Buttons illuminate for ease of use in low-light environments.

Removable button caps — Make it easy to label each button to clearly indicate its function; labels can be quickly changed and don't require programming or engraving.

Front panel configuration port — Advanced configuration, driver downloads, and firmware updates can be performed via the front panel configuration port without removing the controller. The optional Extron CFG Cable, part # 70-335-01, connects the MLC 52 RS VC to the PC's RS-232 port.

Configuration options: IR learning, IR beaming, and Extron's easy-to-use configuration software

Inactivity timer for display shutoff — Adjustable timer control provides automatic shutdown to preserve energy, prevent plasma burn-in, or extend projector lamp life.

Front panel security lockout — If the MLC 52 RS VC is installed in an unsecured environment where easy access is not desirable, a security lockout feature may be implemented to lock out all front panel controls.

Section 508 Compliant — Meets or exceeds accessibility standards for Electronic Information Technology. For more information about Extron's Commitment to Accessibility please see our Accessibility Page.

Includes black and white two-gang, high-impact plastic mounting faceplates — The MLC 52 RS VC comes with two two-gang, high-impact plastic mounting faceplates durable enough for demanding environments.

Includes black and white MR 200 two-gang mud rings

Flexible mounting options — Utilizing a standard two-gang electrical box or included black and white mud rings, the MLC 52 RS VC can be installed virtually anywhere, including walls, lecterns, or tables.

Highly reliable, energy-efficient external universal power supply included, replacement part #70-775-01 — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.

Note: Part # 60-745-14 has been retired. A brushed aluminum mounting option is available, part # 70-538-04.

INCLUDED ACCESSORIES
	MR 200	Two-Gang Mud Ring - Black	70-519-22
	MR 200	Two-Gang Mud Ring - White	70-519-23

INCLUDED ACCESSORIES

MR 200

Two-Gang Mud Ring - Black

70-519-22

MR 200

Two-Gang Mud Ring - White

70-519-23

OPTIONAL ACCESSORIES
	IR Emitter and Shield Kits	IR Emitter Kits for Extron Products With IR Output

OPTIONAL ACCESSORIES

IR Emitter and Shield Kits

IR Emitter Kits for Extron Products With IR Output

Specifications

MLC 52 Series

Control — host ports

Serial control port

1 bidirectional RS-232 front panel 2.5 mm mini stereo jack

Baud rate and protocol

9600 baud, 8 data bits, 1 stop bit, no parity

Serial control pin configurations

Mini stereo jack: tip = Tx, ring = Rx, sleeve = GND

Program control

Extron configuration program for Windows^®
Extron Simple Instruction Set (SIS^™)

IR learning frequencies

30 kHz to 62 kHz

IR learning distance

4" (10 cm) to 14" (36 cm) from the side panel

Control — serial port (RS models only)

Display control port

(1) 3.5 mm captive screw connector, 6 pole for unidirectional RS-232 control (±5 V) (connector is shared with IR control port and power input)

Baud rate and protocol (RS-232)

57600 to 1200 baud (9600 default); 8 (default) or 7 data bits; 1 stop bit; no parity (default), or even or odd parity

Control — IR port

IR control port

(1) 3.5 mm captive screw connector, 6 pole for IR (connector is shared with serial control and power input); TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz

Control — remote volume (VC models only)

Volume control port

(1) 3.5 mm direct insertion captive screw connector, 3 pole

Pin configuration

1 = +10 VDC, 50 mA (max); 2 = volume (variable voltage); 3 = GND

Volume control voltage range

0 V (mute) to 10 V (maximum volume)

General

Power supply

External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1 A, 12 watts

Power input requirements

12 VDC, 0.15 A

Cooling

Convection, no vents

Ambient temperature/humidity

Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Mounting

Rack mount

Models other than MK and EU models

Yes, with optional rack mounting kit

Furniture mount

Models other than MK and EU models

Yes, with optional lectern mounting kit

Wall mount

MLC 52 RS MK, MLC 52 RS VC MK

Mounts to a standard 47 mm deep MK electric type British standard wall box

MLC 52 RS EU, MLC 52 RS VC EU

Mountable into standard 50 mm deep European junction boxes

Enclosure type

MK and EU models

Metal

All other models

High-impact plastic

Enclosure dimensions

MLC 52 RS, MLC 52 IR

Faceplate

4.5" H x 2.8" W x 0.2" D
(11.4 cm H x 7.1 cm W x 0.6 cm D) (1 gang)

Device

2.7" H x 1.7" W x 1.4" D
(6.8 cm H x 4.3 cm W x 3.5 cm D)
(Overall rear dimensions, including connectors. Allow at least 1.85" [4.7 cm] depth in the wall or furniture for device and cable clearance.)

MLC 52 RS VC, MLC 52 IR VC

Faceplate

4.5" H x 4.6" W x 0.1" D
(11.4 cm H x 11.7 cm W x 0.3 cm D) (2 gang)

Device

2.7" H x 3.3" W x 1.4" D
(6.8 cm H x 8.4 cm W x 3.5 cm D)
(Overall rear dimensions, including connectors. Allow at least 1.85" [4.7 cm] depth in the wall or furniture for device and cable clearance.)

MLC 52 RS MK

Faceplate

3.4" H x 3.4" W x 0.1" D
8.5 cm H x 8.5 cm W x 0.3 cm D
(1-gang MK electric type British Standard wall box frame size)

Device

2.7" H x 1.7" W x 1.4" D
(6.8 cm H x 4.3 cm W x 3.5 cm D)
(Overall rear dimensions, including connectors. Allow at least 1.85" [4.7 cm] depth in the wall or furniture for device and cable clearance.)

MLC 52 RS VC MK

Faceplate

3.4" H x 5.7" W x 0.1" D
8.5 cm H x 14.6 cm W x 0.3 cm D
(2-gang MK electric type British Standard wall box frame size)

Device

2.7" H x 3.3" W x 1.4" D
(6.8 cm H x 8.4 cm W x 3.5 cm D)
(Overall rear dimensions, including connectors. Allow at least 1.85" [4.7 cm] depth in the junction box for device and cable clearance.)

MLC 52 RS EU

Faceplate

3.2" H x 6.0" W x 0.1" D (2-gang EU)
(8.1 cm H x 15.2 cm W x 0.3 cm D)

Device

1.7" H x 2.7" W x 1.4" D
(4.3 cm H x 6.8 cm W x 3.5 cm D)
(Overall rear dimensions, including connectors. Allow at least 1.85" [4.7 cm] depth in the junction box for device and cable clearance.)

MLC 52 RS VC EU

Faceplate

3.2" H x 6.0" W x 0.1" D (2-gang EU)
(8.1 cm H x 15.2 cm W x 0.3 cm D)

Device

1.7" H x 4.5" W x 1.4" D
(4.3 cm H x 11.4 cm W x 3.5 cm D)
(Overall rear dimensions, including connectors. Allow at least 1.85" [4.7 cm] depth in the junction box for device and cable clearance.)

Product weight

MLC 52 RS, MLC 52 IR, MLC 52 RS MK

0.2 lb (0.1 kg)

VC and EU models

0.3 lb (0.1 kg)

Shipping weight

3 lbs (2 kg)

Vibration

ISTA 1A in carton (International Safe Transit Association)

Regulatory compliance

Safety

CE, c-UL, UL

EMI/EMC

CE, C-tick, FCC Class A, ICES, Section 508 of the Rehabilitation Act (29 U.S.C. 794d), VCCI Class A

Product warranty

3 years parts and labor

NOTE	All nominal levels are at ±10%.

NOTE	Specifications are subject to change without notice.

(8.0-102113-D17)

MLC 52 RS VC Retired

Simple, Consistent Control in Every Room

Integrated Volume Control

Configurable Buttons for Flexible Control Options

Three Easy Ways to Configure

Features

Specifications

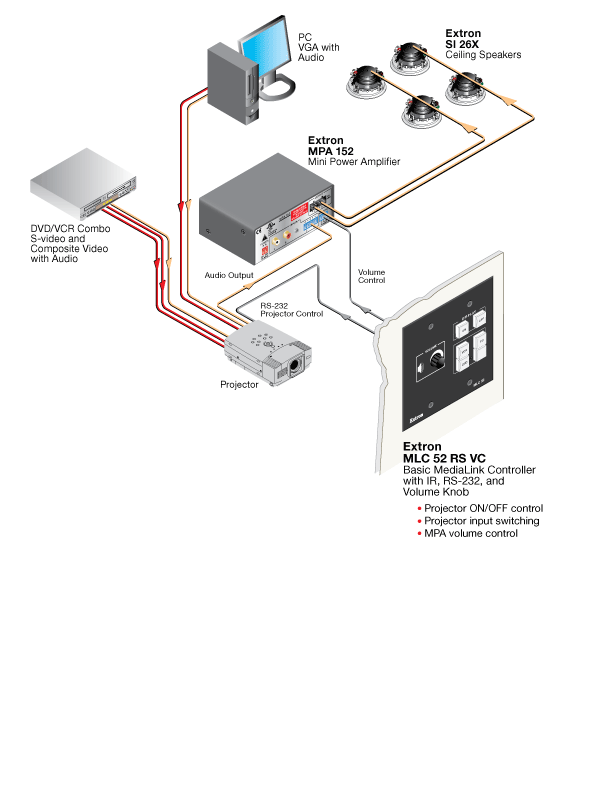

Diagram

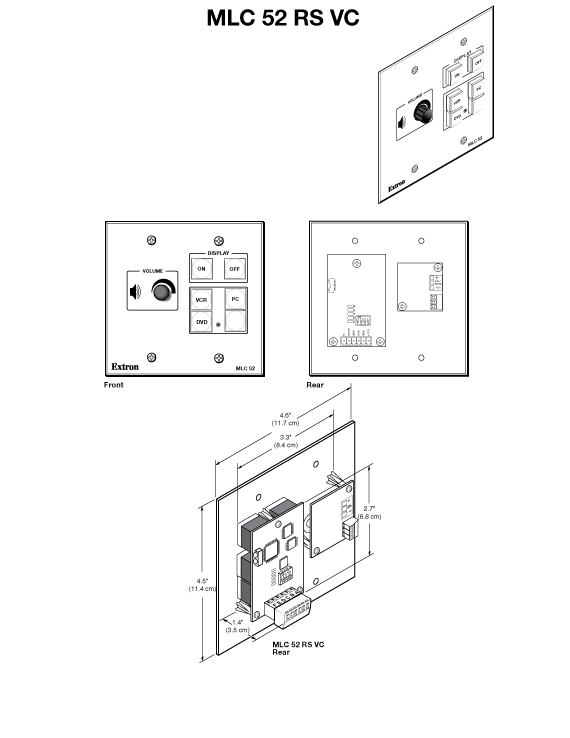

Panel Drawing
