HD 8K New

48 Gbps Ultra High Speed HDMI Cables
Key Features
  • Supports data rates up to 48 Gbps and video resolutions up to 8K/60
  • Support for dynamic HDR - High Dynamic Range video
  • PCM 8-channel, DTS-HD Master Audio™, DTS:X®, Dolby® TrueHD, and Dolby Atmos® support
  • EDID, HDCP, CEC, HEC, and eARC pass-through
  • Compatible with QMS and VRR, ALLM, QFT enhanced gaming features
  • Certified for use with AVEdge™, Cable Cubby®, and HSA Hideaway® Surface Access enclosures
The Extron HD 8K
Model Version Description Part #
 HD 8K/6 48 Gbps Ultra High Speed HDMI Cable - 6' (1.8 m) 26-743-06
 HD 8K/9 48 Gbps Ultra High Speed HDMI Cable - 9' (2.7 m) 26-743-09

Extron HD 8K cables reliably transmit HDMI video and audio signals at resolutions up to 8K/60 and data rates up to 48 Gbps. Designed for dependable performance with 8K video and high frame rate formats such as 4K/120, they support key capabilities including dynamic HDR, eARC, immersive audio formats such as Dolby Atmos and DTS:X, and enhanced gaming features like VRR and ALLM. HD 8K cables are ideal wherever ultra-high-bandwidth HDMI connectivity is needed and are available in 6-foot (1.8 m) and 9-foot (2.7 m) lengths.

Features

  • Supports data rates up to 48 Gbps and video resolutions up to 8K/60
  • Support for dynamic HDR - High Dynamic Range video
  • PCM 8-channel, DTS-HD Master Audio™, DTS:X®, Dolby® TrueHD, and Dolby Atmos® support
  • EDID, HDCP, CEC, HEC, and eARC pass-through
  • Compatible with QMS and VRR, ALLM, QFT enhanced gaming features
  • Certified for use with AVEdge™, Cable Cubby®, and HSA Hideaway® Surface Access enclosures
  • Gold-plated contacts
  • Available in lengths of 6 feet (1.8 m) and 9 feet (2.7 m)
OPTIONAL ACCESSORIES
  LockIt Plus Cable Lacing Bracket for USB and HDMI
  Cable Collar Kit Collars in Assorted Colors for Easy Cable Identification
SIMILAR PRODUCTS
  HDMI Ultra Series Ultra Flexible Premium High Speed HDMI Cables
  HDMI Pro Series Premium High Speed, High Speed, and Standard HDMI Cables

Specifications

HD 8K
TRUE 8K specification

Max. 8K Capabilities
Resolution Refresh Rate Chroma Sampling Max. Bit Depth per Color
7680x4320 60 Hz 4:2:0 12 bit
30 Hz 4:4:4
Max. 4K and 5K Capabilities
Resolution Refresh Rate Chroma Sampling Max. Bit Depth per Color
5120x2880 60 Hz 4:4:4 12 bit
5120x1440
4096x2160
3840x2160
3840x2160 120 Hz
   Frame rate1 24, 25, 30, 50, 60, or 120 fps
   Chroma sampling1 4:4:4, 4:2:2, or 4:2:0
   Color bit depth1 8, 10, or 12 bits per color
   Signal Type Up to HDMI 2.1, HDCP 1.4, and HDCP 2.3, HDR
   Max. video data rate 48.1 Gbps
    NOTE     1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
Performance/electrical
   Resolution range Up to 8K (7680x4320) 60 Hz, 4:2:0, 5K (5120x2880) 60 Hz,
​4K (4096x2160) 60 Hz, 4K (3840x2160) 120 Hz, UHD (3840x2160) @ 60 Hz
   Color space 4:4:4, 4:2:2, or 4:2:0
   Color bit depth 8, 10, and 12 bits per color
   Standards Up to HDMI 2.1, HDCP 1.4, and HDCP 2.3, HDR
   Format RGB and YCbCr digital video
Mechanical
   Cable outer diameter 0.24" (6 mm)
   Bend radius 1.90" (48 mm)
General — physical characteristics
   Connectors 1 HDMI Type A Male to 1 HDMI Type Male
   Contacts Gold plated
   Material Conductors: 28 AWG tinned copper wires
Shielding: Fluoropolymer tape binder, tinned copper braid
Jacket: PVC – Polyvinyl Chloride
   Connector dimensions 1.77" L x 0.79" W x 0.43" thick
(45 mm L x 20 mm W 11 mm thick)

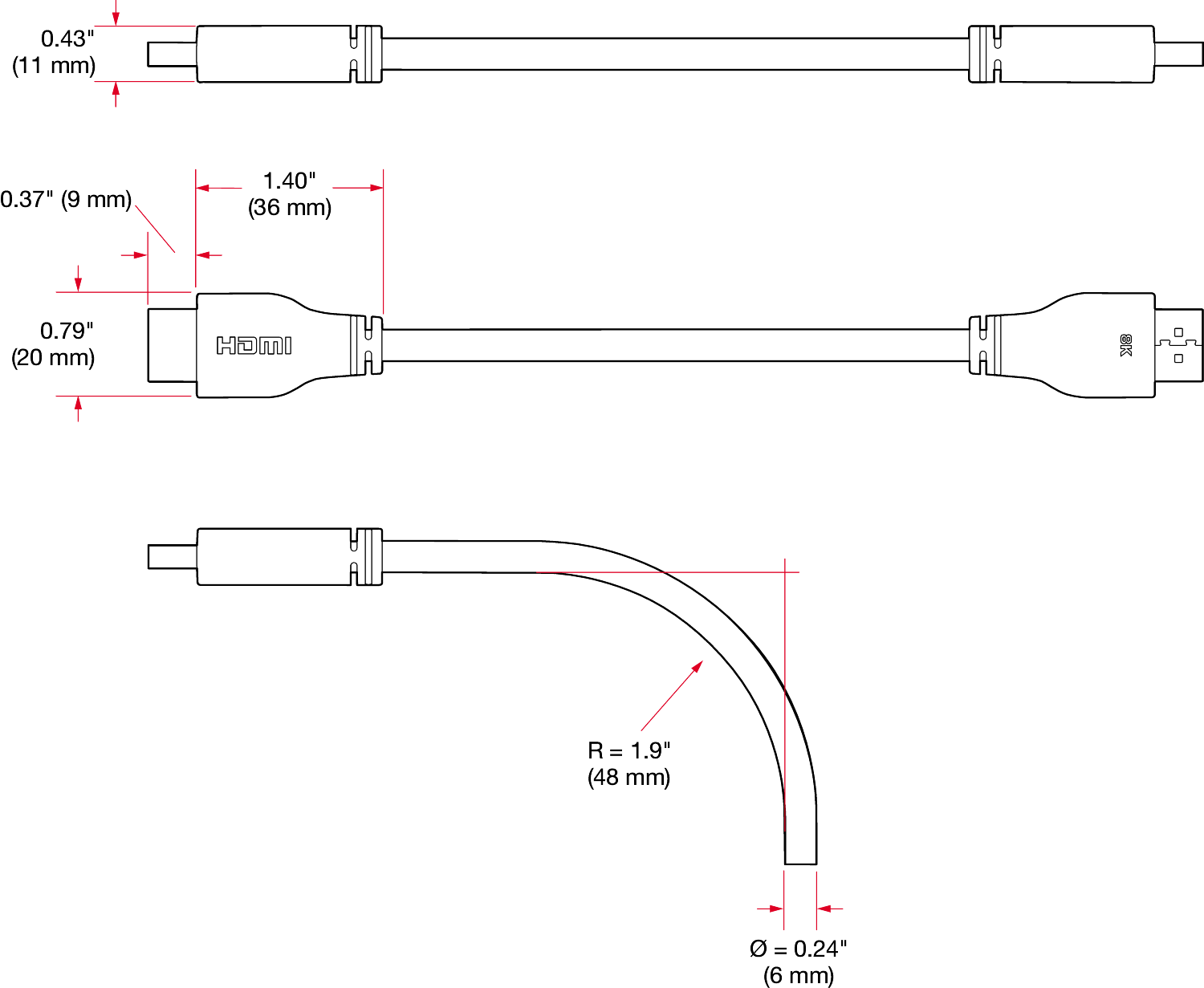

    HD K Cable dimensions
General
   Regulatory compliance CE, RoHS
   Cable rating CMX cable jacket
   Ambient temperature/humidity  Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: -4 to +122 °F (-20 to +50 °C) / 10% to 90%, noncondensing
   Warranty Limited Lifetime Performance
    NOTE     Specifications are subject to change without notice.
    NOTE     All nominal levels are at ±10%.
(5837-D1)
Shipping Dimensions and Weights
    Part # Height Width Depth Weight
    26-743-06 8.0" (20.3 cm) 10.0" (25.4 cm) 0.05" (0.1 cm) 0.21 lbs (0.09 kg)
    26-743-09 8.0" (20.3 cm) 10.0" (25.4 cm) 0.05" (0.1 cm) 0.39 lbs (0.18 kg)
