EWB Series

External Wall Boxes
Key Features
  • Architectural solutions for wall mountable Extron products
  • Designed with 2.5" depth to house the wiring of a faceplate and take in cable runs from a surface-mounted raceway or rear wall space
  • Knockouts for external raceway cable channels
  • Available in black or white
The Extron EWB Series
Model Version Description Part #
EWB 101 One-gang, black 60-1161-02
EWB 101 One-gang, white 60-1161-03
EWB 102 Two-gang, black 60-1162-02
EWB 102 Two-gang, white 60-1162-03
EWB 103 Three-gang, black 60-1163-02
EWB 103 Three-gang, white 60-1163-03
EWB 104 Four-gang, black 60-1164-02
EWB 104 Four-gang, white 60-1164-03
EWB 105 Five-gang, black 60-1165-02
EWB 105 Five-gang, white 60-1165-03
EWB 101 One-gang, gray 60-452-01 Retired
EWB 101 One-gang, black 60-452-02 Retired
EWB 101 One-gang, white 60-452-03 Retired
EWB 101 One-gang, RAL9010 white 60-452-05 Retired
EWB 102 Two-gang, gray 60-453-01 Retired
EWB 102 Two-gang, black 60-453-02 Retired
EWB 102 Two-gang, white 60-453-03 Retired
EWB 102 Two-gang, RAL9010 white 60-453-05 Retired
EWB 103 Three-gang, gray 60-454-01 Retired
EWB 103 Three-gang, black 60-454-02 Retired
EWB 103 Three-gang, white 60-454-03 Retired
EWB 103 Three-gang, RAL9010 white 60-454-05 Retired
EWB 104 Four-gang, gray 60-455-01 Retired
EWB 104 Four-gang, black 60-455-02 Retired
EWB 104 Four-gang, white 60-455-03 Retired
EWB 104 Four-gang, RAL9010 white 60-455-05 Retired
EWB 105 Five-gang, gray 60-456-01 Retired
EWB 105 Five-gang, black 60-456-02 Retired
EWB 105 Five-gang, white 60-456-03 Retired
EWB 105 Five-gang, RAL9010 white 60-456-05 Retired
EWB 10X8 10x8 inch, gray 60-457-01 Retired
EWB 10X8 10x8 inch, black 60-457-02 Retired
EWB 10X8 10x8 inch, white 60-457-03 Retired
EWB 10X8 10x8 inch, RAL9010 white 60-457-05 Retired
EWB 106 Six-gang, black 60-688-02 Retired
EWB 106 Six-gang, white 60-688-03 Retired
EWB 106 Six-gang, RAL9010 white 60-688-05 Retired
EWB 107 Seven-gang, black 60-689-02 Retired
EWB 107 Seven-gang, white 60-689-03 Retired
EWB 107 Seven-gang, RAL9010 white 60-689-05 Retired

The Extron EWB Series External Wall Boxes are architectural mounting solutions for externally mounted Extron products. Each external wall box is designed with enough depth - 2.5" (6.4 cm) - to house the wiring of a faceplate, as well as take in cable runs from a surface-mounted raceway or rear wall space. Available in a variety of sizes, external wall boxes come in black or white.

Surface Raceway Knockouts
Size Dimensions Quantity per EWB
Small 0.90" H x 0.75" W
(2.3 cm H x 1.9 cm W)
1
Large 0.9" H x 2.0" W
(2.4 cm H x 5.1 cm W)
1

Features

RELATED PRODUCTS
  AAP 314 Three-Gang AV Connectivity Mounting Frame for Decorator-Style and AAP Modules
  AAP 424 Four-Gang AV Connectivity Mounting Frame for Decorator-Style and AAP Modules
  WPB 109 One-Gang WPB - Wallplate for HDMI, VGA, and Stereo Audio
  XTP T UWP 202 Two Input XTP Transmitter - Decorator-Style Wallplate

Specifications

EWB Series
General
   Mounting
      Wall mount Yes
   Material Steel

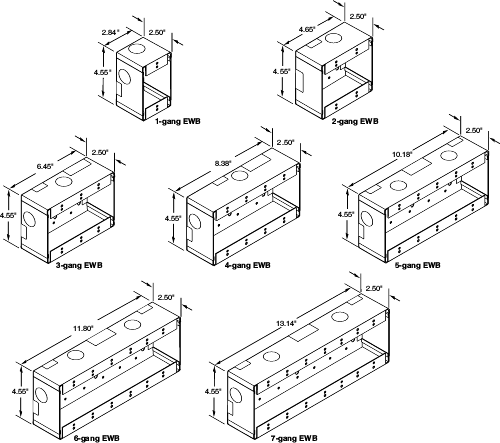

   Enclosure dimensions
      1-gang EWB 4.50" H x 2.75" W x 2.50" D (1 gang)
11.4 cm H x 7.0 cm W x 6.4 cm D
      2-gang EWB 4.50" H x 4.56" W x 2.50" D (2 gang)
11.4 cm H x 11.6 cm W x 6.4 cm D
      3-gang EWB 4.50" H x 6.4" W x 2.50" D (3 gang)
11.4 cm H x 16.2 cm W x 6.4 cm D
      4-gang EWB 4.50" H x 8.2" W x 2.50" D (4 gang)
11.4 cm H x 20.8 cm W x 6.4 cm D
      5-gang EWB 4.50" H x 10.0" W x 2.50" D (5 gang)
11.4 cm H x 25.4 cm W x 6.4 cm D

   Surface raceway knockouts 2 small, 2 large
   Surface raceway knockout dimensions
      Small knockouts 0.9" H x 0.75" W (2.3 cm H x 1.9 cm W)
      Large knockouts 0.9" H x 2.0" W (2.3 cm H x 5.1 cm W)
   Wall mounting holes
      1-gang EWB 4
      All other models 6
   Product weight
      1-gang EWB 0.7 lbs (0.3 kg)
      2-gang EWB 0.9 lbs (0.4 kg)
      3-gang EWB 1.1 lbs (0.5 kg)
      4-gang EWB 1.4 lbs (0.6 kg)
      5-gang EWB 1.6 lbs (0.7 kg)
   Shipping weight
      1-gang EWB 1 lb (1 kg)
      2-gang, 3-gang EWBs 2 lbs (1 kg)
      4-gang, 5-gang EWBs 3 lb (2 kg)
   Vibration ISTA 1A in carton (International Safe Transit Association)
   Regulatory compliance
      Safety c-UL, UL
      Environmental Complies with the appropriate requirements of RoHS, WEEE
   Product warranty 3 years parts and labor
    NOTE     Specifications are subject to change without notice.
(8.0-081211-D2)
Shipping Dimensions and Weights
    Part # Height Width Depth Weight
    60-1161-02 3.75" (9.5 cm) 6.0" (15.2 cm) 4.0" (10.2 cm) 1.0 lbs (0.45 kg)
    60-1161-03 3.75" (9.5 cm) 6.0" (15.2 cm) 4.0" (10.2 cm) 1.0 lbs (0.45 kg)
    60-1162-02 4.13" (10.5 cm) 5.75" (14.6 cm) 5.63" (14.3 cm) 1.1 lbs (0.5 kg)
    60-1162-03 4.13" (10.5 cm) 5.75" (14.6 cm) 5.63" (14.3 cm) 1.1 lbs (0.5 kg)
    60-1163-02 4.13" (10.5 cm) 7.0" (17.8 cm) 5.63" (14.3 cm) 1.35 lbs (0.61 kg)
    60-1163-03 4.13" (10.5 cm) 7.0" (17.8 cm) 5.63" (14.3 cm) 1.35 lbs (0.61 kg)
    60-1164-02 4.13" (10.5 cm) 9.63" (24.4 cm) 5.63" (14.3 cm) 1.66 lbs (0.75 kg)
    60-1164-03 4.13" (10.5 cm) 9.63" (24.4 cm) 5.63" (14.3 cm) 1.66 lbs (0.75 kg)
    60-1165-02 4.13" (10.5 cm) 11.0" (27.9 cm) 5.63" (14.3 cm) 1.9 lbs (0.86 kg)
    60-1165-03 4.13" (10.5 cm) 11.0" (27.9 cm) 5.63" (14.3 cm) 1.9 lbs (0.86 kg)
