DUAL AC AAP

Two AC Outlet AAP AV Connectivity Modules

Key Features

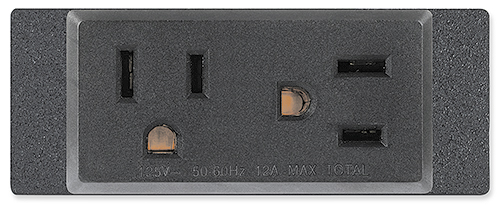

Two female Edison unswitched AC outlets on front
Installs in products that accept a double-space AAP™ AV Connectivity Module
Dual US AC AAP modules are available in multiple models
US conduit module features an attached 6' (1.83 m) length of 3/8" flexible conduit with a 6" (15.24 cm) pigtail of three-wire cable
Dual US AC AAP module is UL-listed
Dual JP AC AAP module is PSE certified for use in Japan
All Features

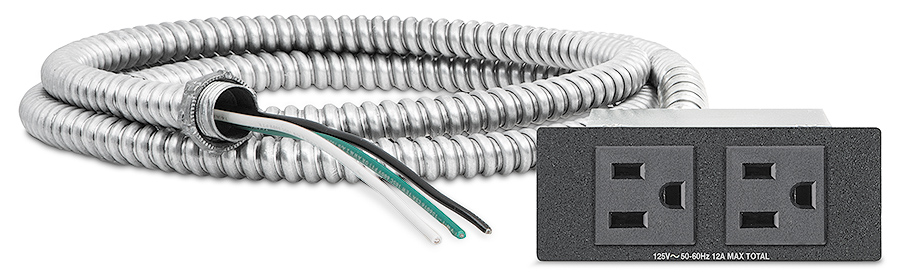

DUAL US AC conduit model features an attached flexible conduit with a pigtail of three-wire cable

Image Gallery

Overview

Extron Dual AC AAP modules are double-space AV connectivity modules with two AC power outlets for installation in most Extron AV connectivity mounting panels, such as TMK 100 AAP Series table mounts and AAP 102 mounting frames. They are available for both the US and Japan. The module is offered in two models. One model includes an attached 9-foot (2.74-meter) AC power cord with one rotated outlet that improves compatibility with large AC chargers. The other model features an attached 6-foot (1.83-meter) length of 3/8" flexible conduit plus a 6" (15.24-cm) pigtail of three-wire cable. Each US module is UL/c-UL listed. The module for Japan is equipped with a detachable 8-foot (2.44-meter) AC power cord and is PSE certified.
