Extron XTRA Series Audio Power Amplifiers

ENERGY STAR Qualified Power Amplifiers

The Extron XPA 1002-70V and XPA 1002-100V are the newest additions to the XTRA™ Series of half rack 1U, convection cooled audio power amplifiers. This series includes low and high impedance versions to cover a variety of application needs. The  XPA 1002 delivers two channels of 100 watts per channel into 4 ohms or 8 ohms, or into a 70 volt or 100 volt line. The XTRA Series also includes the XPA 2001, which delivers 200 watts into a 70 volt or 100 volt line. These amplifiers are ideal in a variety of environments for amplification of voice and program audio content in low or high impedance speaker systems.

XTRA Series ENERGY STAR® qualified amplifiers are energy efficient products that conserve energy and reduce costs. They feature an Extron exclusive, highly efficient, advanced Class D design with patented CDRS™ - Class D Ripple Suppression technology that provides a smooth, clean audio waveform and an improvement in signal fidelity over conventional Class D amplifier designs. XTRA Series power amplifiers are housed in a compact 1U, convection-cooled half rack width enclosure and do not require fans for cooling, making them ideal for installation in racks, lecterns, credenzas, and other applications with limited space and ventilation.

Key Features

  • 200 watts rms output power:

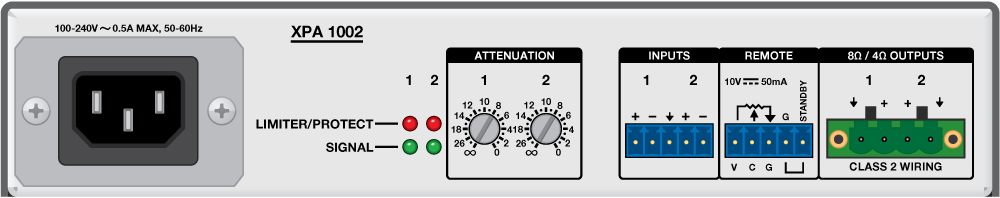

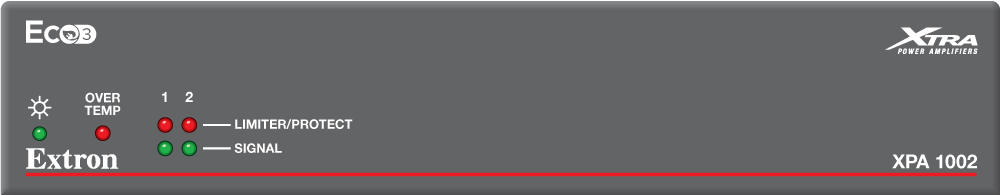

    XPA 1002 - 2 x 100 watts @ 4 ohms, 2 x 60 watts @ 8 ohms, or 1 x 200 watts @ 8 ohms (bridged)
    XPA 1002 Plus - 2 x 100 watts @ 4 or 8 ohms, or 1 x 200 watts @ 8 ohms (bridged)
    XPA 1002-70V - 2 x 100 watts @ 70 volts
    XPA 1002-100V - 2 x 100 watts @ 100 volts

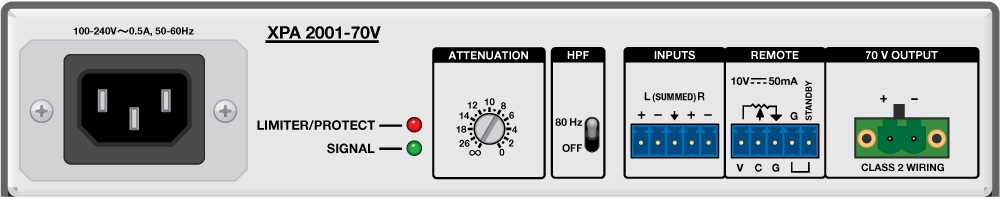

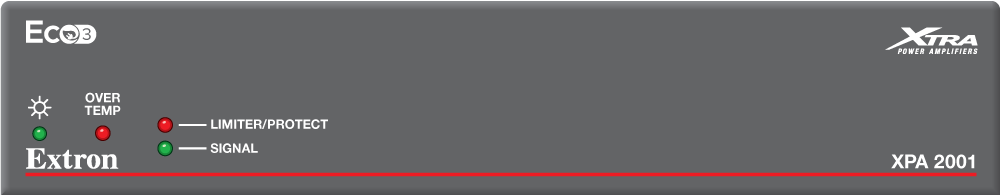

    XPA 2001-70V - 1 x 200 watts @ 70 volts
    XPA 2001-100V - 1 x 200 watts @ 100 volts
  • ENERGY STAR qualified amplifiers
  • Professional grade signal-to-noise and THD+N performance
  • Extron Patented CDRS - Class D Ripple Suppression
  • Convection cooled, fanless operation
  • Ultra low inrush current - no need for power sequencing
  • Power factor correction
  • Rack-mountable 1U, half rack width enclosures
  • UL 2043 plenum rated when used with optional Flexible Conduit Adapter Kit
Extron Half Rack Amplifiers
Model Description
XPA 1002 60 Watts Per Ch @ 8 Ohms
XPA 1002 Plus 100 Watts Per Ch @ 8 Ohms
XPA 1002-70V 70 V Two Channel Amp - 100 Watts/Ch
XPA 1002-100V 100 V Two Channel Amp - 100 Watts/Ch
XPA 2001-70V 70 V Mono Amp - 200 Watts
XPA 2001-100V 100 V Mono Amp - 200 Watts

In addition to these half rack amplifiers, the Extron XTRA Series includes amplifiers designed for a variety of applications including high power, multi-channel amplifiers and larger, 400 watt per channel amplifiers for large environments such as auditoriums, convention centers, and houses of worship.

XPA 1002 Plus Diagram
XPA 1002 Plus Diagram
