A complete AV distribution platform with unmatched performance and powerful integration features that streamline the system from design through operation. XTP Systems® easily scale from small to large applications without additional complexity. They are comprehensive switching and distribution systems for digital video resolutions up to 8K plus audio, supporting local AV connectivity as well as remote devices over shielded CATx and fiber optic cable. The line’s modular approach and wide selection of I/O boards, extenders, and other products ensure the flexibility and expandability any project may require. XTP® is the definitive AV industry standard you can depend on now and to meet the challenges of ever increasing resolutions and new technologies.
XTP II CrossPoint Series
AV Infrastructure for an 8K Future
The Extron XTP II CrossPoint modular matrix switchers are the first in the AV industry to offer a 50 Gbps digital switching backplane. Representing a monumental leap in engineering and product design, XTP II lets you design and deploy AV systems with switching bandwidth that exceeds the data rate required to distribute 8K/30 video with 4:4:4 chroma sampling at 10 bits per color.
The XTP II CrossPoint is the only AV technology platform that supports uncompressed 4K video while providing additional bandwidth to accommodate anticipated video resolutions and formats, such as 8K. These matrix switchers can be configured with a variety of input and output boards to support 4K/60 HDMI, DVI, and SDI, plus 4K signal extension over twisted pair and fiber optic cable.
Modular Frame Design
XTP Systems provide a modular, field-upgradeable, and hot-swappable design. The wide selection of input and output boards provide a completely integrated local and remote signal switching and distribution solution for maximizing AV system integration. The XTP II CrossPoint Matrix is available in three configurable I/O sizes, 16x16, 32x32, and 64x64.
Wide Selection of I/O Boards
A full selection of XTP® input and output boards streamline integration for local connectivity and extended transmission capability using a single CATx or fiber optic cable. Each input and output board support four sources or display connections.
8K Switching and Distribution

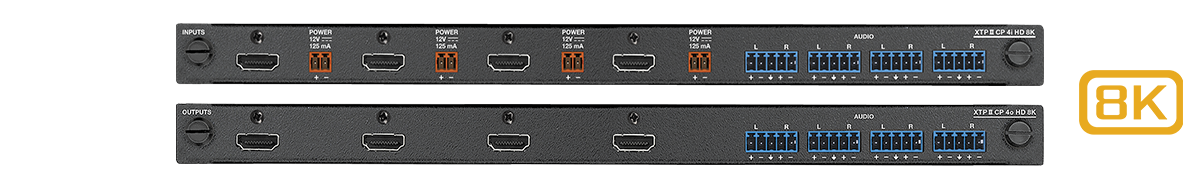

XTP II CP HD 8K input and output boards bring significant advancement in capabilities for XTP Systems. These boards accommodate HDMI 2.1 data rates up to 40.1 Gbps, enabling support of uncompressed 8K video with HDR. They are HDCP 2.3 compliant, provide input equalization and output reclocking, and feature connections for powering active, Ultra High Speed HDMI cables. The XTP II CP HD 8K boards are the ideal choice for a professional and future-ready AV infrastructure.
|Video Resolution||Refresh (Hz)||Color Sampling||Max. Bit Depth|
|8K (7680 X 4320)||60||4:2:0||10|
|8K (7680 X 4320)||30||4:4:4||10|
|4K (4096 X 2160)||60||4:4:4||12|
|4K (4096 X 2160)||120||4:4:4||10|
|1080p (1920 X 1080)||120||4:4:4||12|
HDMI 2.1 Resolutions and Refresh Rates
Beyond switching local HDMI, SDI, DVI, VGA, video and audio signals, XTP Systems offers 4K twisted pair and fiber I/O boards for extension of video, audio, bidirectional control, and Ethernet up to 330 feet (100 meters) over a shielded twisted pair cable and up to 500 meters (1,640 feet) over OM4 multimode fiber optic cable and up to 10 km (6.21 miles) when using singlemode cable.
Multiformat Switching and Distribution
XTP Systems provide high performance switching and distribution of video and audio plus bidirectional control and Ethernet extension in an integrated solution. To streamline installation, a full selection of XTP® input and output boards provide local connectivity and extended transmission capabilities using a single CATx or fiber optic cable.
XTP CrossPoint Input Boards
XTP CrossPoint Output Boards
4K Twisted Pair and Fiber Optic Switching and Transmission
Twisted pair and fiber optic I/O boards and endpoints deliver end-to-end capability for extending 4K video along with audio, control, and Ethernet over a single cable. HDCP 2.3 compliant, XTP 4K Twisted Pair supports signal transmission up to 330 feet (100 meters) and remote powering of endpoints.
XTP 4K Fiber offers a completely integrated solution that incorporates Extron-exclusive, custom designed optical modules. These XTP 4K Fiber products provide increased distance performance up to 500 meters (1,640 feet) over OM4 multimode fiber optic cable and up to 10 km (6.21 miles) when using singlemode cable.
Audio Signal Routing and Management
XTP Systems provide easy integration of analog audio alongside digital embedded signals and offers extensive signal routing and management options. Two separate audio switching planes gives increased flexibility to deliver audio breakaway, digital audio de-embedding, multi-channel audio routing and downmixing, and analog stereo audio embedding without requiring additional components. HDMI, Dante, and stereo audio outputs provide convenient connectivity to the sound reinforcement system. The XTP II CP 4o HD AT 4K PLUS Dante output board adds the capability to take any four stereo audio signals that are routed through the XTP system and transport them as Dante audio. Transmission is over a network using standard Internet protocols. This XTP output board also supports AES67, along with Audinate® Dante Controller and Dante Domain Manager software.
XTP WindoWall Delivers Powerful Capabilities for Videowall Applications
XTP WindoWall® mode utilizes XTP scaling receivers with Extron Vector 4K scaling technology to enable videowall support within XTP Systems. This further expands capabilities and enables broader use in applications, such as command and control and emergency operations centers. Images can be shown full screen, spread across multiple displays or a combination of both. Up to eight videowalls can be supported within an XTP system, and up to eight assignable presets are available per wall for quick and easy viewing between different image arrangements. Convenient software features such as drag and size layout configuration, mullion compensation, and the ability to create multiple presets expedite the setup process without need for expensive custom programming.
Reliability and Performance by Design
Designed and engineered to the highest standards, the 50 Gbps backplane delivers bandwidth performance that exceeds HDMI 2.1 and DisplayPort 1.4 signal requirements for all 4K/60 rates and gives future support for emerging resolutions such as 8K.
Four, hot-swappable, Extron-designed power supplies: 2 primary and 2 redundant
Digital switching backplane performance exceeds the data rate requirements of today’s most demanding signals
Twisted pair, fiber optic and HDMI boards provide end-to-end 4K video switching and transmission
Modular, hot-swappable design supports I/O sizes up to 64×64 and upgrades to next generation video boards
4 Power Supplies
Robust, hot-swappable, state-of-the-art power supplies are engineered to last
100,000 Hour MTBF
Highest quality metal fans are individually monitored to ensure optimal cooling
Dual, monitored fan banks with top and bottom chassis ventilation deliver optimal thermal management by drawing cool air from the bottom, pushing forced air through the I/O board chamber, and expelling warm air out the top of the enclosure.
The Extron Everlast Difference
High temperature rated, electrolytic capacitors
Engineered to last: components arranged for maximum efficiency, airflow and cooling
Metal fan assembly with high quality bearings and longest available lifetime rating
We design and manufacture our Everlast Power Supplies in-house, employing premium-quality components and highly efficient, modern topologies for thermal management, transistor switching, energy dissipation, and virtually every other critical aspect of the power system. Each Everlast Power Supply is built with the same care and meticulous attention to detail as our award-winning high-end video products.
Demonstrated Reliability. Proven Performance.
Typical AV power supplies have an average MTBF, Mean Time Between Failure, rating of around 30,000 hours, calculated by using the stated specifications of the individual components.
To ensure that our Everlast power supplies meet Extron standards of performance and quality, we subjected each model of our PS Desktop Series to actual, not calculated, accelerated operation life testing, using a heat chamber at an ambient temperature of 85°C. The power supplies were operated under load for over 2 years. Under these grueling conditions, each hour in the heat chamber is like 64 hours in the real world.
Based on this actual accelerated operational life testing, we achieved MTBF benchmarks of 280,000 hours up to an incredible 1,000,000 hours, or the equivalent of over 114 years, depending on the model. We know of no other company that has gone to such lengths to guarantee power supply reliability. Simply put, our Everlast Power Supplies deliver unprecedented, demonstrated reliability and longevity in the most demanding professional AV environments.
