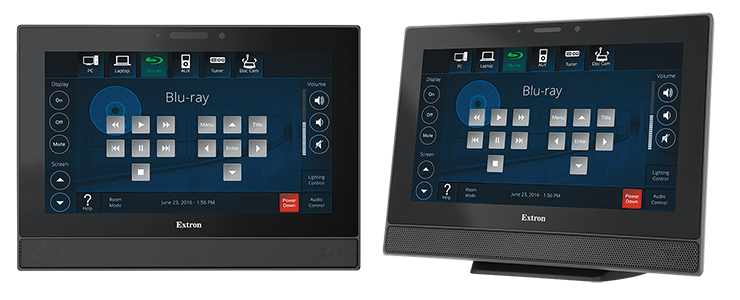

TLP Pro 1022M and TLP Pro 1022T

10" TouchLink Pro Touchpanels

The Extron TLP Pro 1022M and TLP Pro 1022T are 10" wall mount and tabletop touchpanels with capacitive, edge-to-edge glass touchscreens. These 1024x600 capacitive touchscreens provide a vibrant look and a more responsive control surface. As with all TouchLink® Pro models, these new, customizable touchpanels feature faster processing and more memory. Power over Ethernet – PoE allows the touchpanel to receive power and communication over a single Ethernet cable. The TLP Pro 1022M and TLP Pro 1022T have the same sleek design as our larger TouchLink Pro touchpanels and features that make them ideal for control applications requiring fully-customizable touchpanels with flexible mounting options.

All TouchLink Pro touchpanels are customized using Extron GUI Designer software. This powerful interface design software offers ready-to-use resource kits to help design a wide variety of interfaces for rooms and presentation environments. These designs may be used as is, or customized for the application by simply changing individual graphic elements.

Key Features

  • 10" capacitive touchscreens with 1024x600 resolution
  • Faster processing and more memory
  • Compatible with all IP Link® Pro control pocessors
  • Power over Ethernet allows the touchpanel to receive power and communication over a single Ethernet cable, eliminating the need for a local power supply - PoE injector sold separately
  • Built-in speakers with improved audio performance
  • Light sensor adjusts screen brightness as the ambient room lighting changes
  • Configurable red and green status lights indicate a room's availability or call status
TLP Pro 1022T Diagram
TLP Pro 1022T Diagram
