ShareLink 250 W

Wireless Collaboration Gateway with Dual Band WAP

Awards InAVation 2014 Finalist

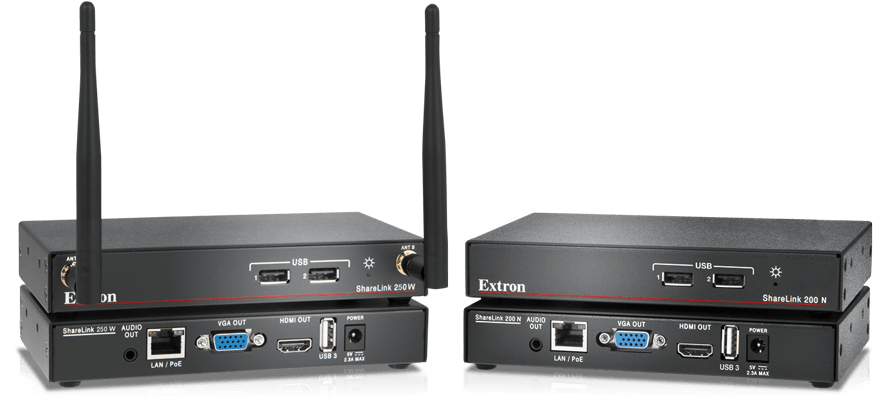

The Extron ShareLink 250 Series Wireless Collaboration Gateway enables anyone to present content from a laptop, smartphone, or tablet on a shared display, transforming any room into a collaboration space. ShareLink™ technology provides simultaneous presentation of different types of content from up to four personal devices. The gateway is available in two models: the ShareLink 250 W wireless model includes an integrated dual-band wireless access point - WAP to create a stand-alone wireless collaboration and presentation system or to add wireless capabilities to a more traditional wired solution. The ShareLink 200 N network-version does not include a WAP, and works in concert with a facility’s existing wireless network. The professional capabilities of the ShareLink 250 wireless and network-only models provide easy integration of mobile devices into meeting and huddle rooms, interactive collaborative spaces, and larger presentation environments.

Key Features

  • Wirelessly share content from a personal device for BYOD presentation on a display
  • Supports Windows® and OS X® computers as well as Apple® and Android® smartphones and tablets
  • Wireless model includes an integrated dual-band wireless access point - WAP at 2.4 GHz or 5 GHz to enable direct connection of mobile devices over Wi-Fi – ShareLink 250 W model
  • Provides full screen mirroring for Apple iOS devices
  • Network-only model does not include a WAP; mobile devices connect to the unit via the existing wireless network – ShareLink 200 N
  • Simultaneous content display from up to four different devices

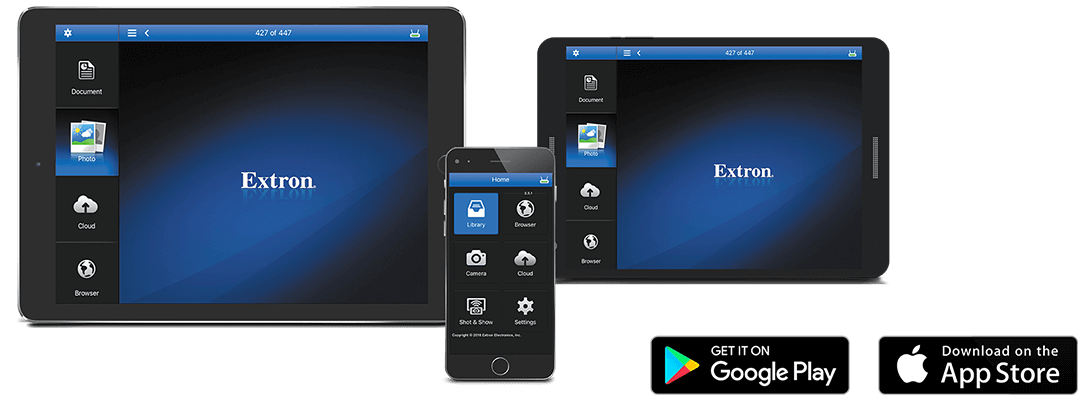

  • Dropbox, Google Drive, iCloud, and OneDrive integration within the MirrorOp® for Extron ShareLink™ app provides easy access to content stored in the cloud
  • Full screen display of content from a single device or simultaneous display of multiple devices into four windows on a single display
  • Allows a Windows or OS X computer to send content to multiple ShareLink 250 Series units on the network, supporting up to four displays
  • Collaboration mode allows anyone to share content and control the presentation
  • Moderator mode ensures only approved content is displayed
  • WebShare™ technology enables attendees to view slide images on personal devices via a Web browser, ensuring visibility regardless of sight lines
  • Power over Ethernet eliminates the need for a local power supply
  • Plenum rated - meets UL 2043 for heat and smoke release

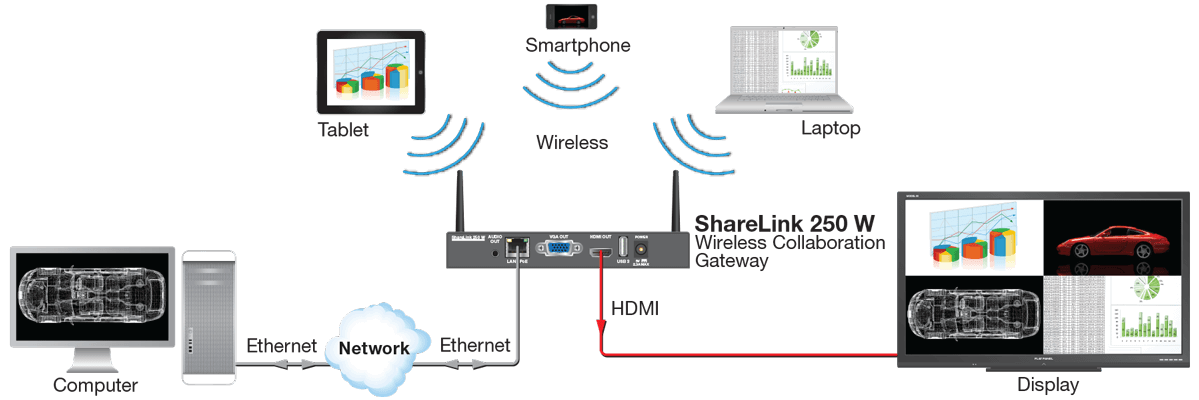

ShareLink 250 Series Diagram
ShareLink 250 Series Diagram
