SB 33 A
Adjustable Width Sound Bar
The SB 33 A, the industry's first Adjustable Width Sound Bar, is a flexible solution for enhancing the audio experience in collaboration spaces. Featuring an adjustable-width design, our new sound bar can be customized to precisely match the width of the display, offering a high performance solution that looks great in any space. The SB 33 A accommodates most USB webcams, while options are available to mount a PTZ camera or have no camera at all.
With an ENERGY STAR® qualified amplifier and carefully optimized drivers, the SB 33 A is well suited for small to medium size spaces that require exceptional speech intelligibility and high quality reproduction of program audio. A variety of mounting and camera options are available, providing an adaptable audio solution for today's collaboration spaces.
Provides 9" (228.6 mm) of width adjustment to match a display
Integrated Webcam Slot
Accepts most USB webcams and includes a privacy door
Two 3" (76 mm) full-range drivers
Optimized for collaboration applications
Internal Extron ENERGY STAR qualified amplifier
Conserves energy when not in use
Simplified Volume/Mute Control
Compatible with VCM series volume and mute controllers when used without a control system
Flexible installation options
The available PTZ shelf and VESA mounting kit allow maximum flexibility for any collaboration space
Adjustable Width to Match Display Size
Since display bezel widths vary, the unique design of the SB 33 A allows its width to be adjustable during installation to precisely match the width of the display. When placed under a display, this easily creates a custom look without the expense or extra time needed for a custom solution. The SB 33 A has four adjustable width models available, each with a 9" range of adjustment to create a custom look for displays from 46" to 80" diagonal.
Not all collaboration spaces serve the same function or have the same requirements, particularly when it comes to conferencing support. For some, a highly streamlined solution with a simple webcam meets the requirement. For others, a full PTZ camera is required to visually track individual conference participants. Still others are pure local collaboration spaces that require no conferencing at all or require an installed webcam to be blocked at will for security purposes. The SB 33 A meets all these needs through the use of its optional PTZ camera shelf, blank center grille, and standard webcam slot with a built-in door. For webcam compatibility information, click here.
Flexible Mounting Options
A wall bracket is included, providing an easy way to flush mount the sound bar under a display. For installations involving an articulating mount or when the display is not directly mounted to a wall, an optional VESA mounting kit is available. When the SB 33 A is installed with the VESA mounting kit and an articulating mount, the sound bar and display move together as one unit.

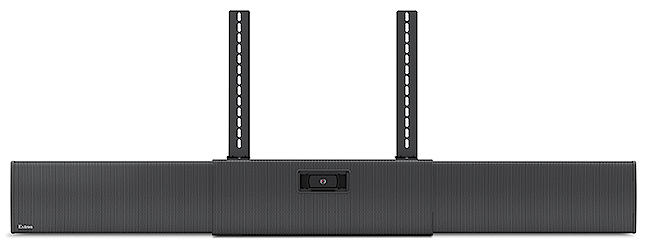

SB 33 A
The SB 33 A blends seamlessly with practically all display sizes. Four models are available to accomodate displays from 46" to 80" diagonal. The SB 33 A features two 3-inch full-range drivers with a tuned bass port and is powered by an Energy Star qualified Extron Class D amplifier. It offers a wide frequency range from 100 Hz to 20 kHz.
