Quantum Connect Series

HDMI videowall processors with two, four, or six outputs

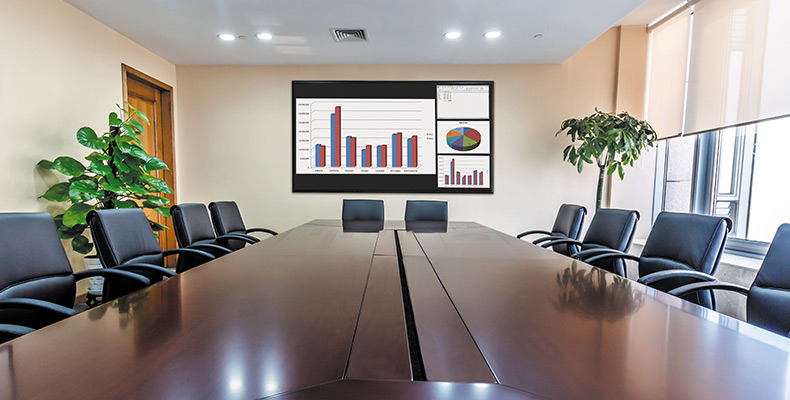

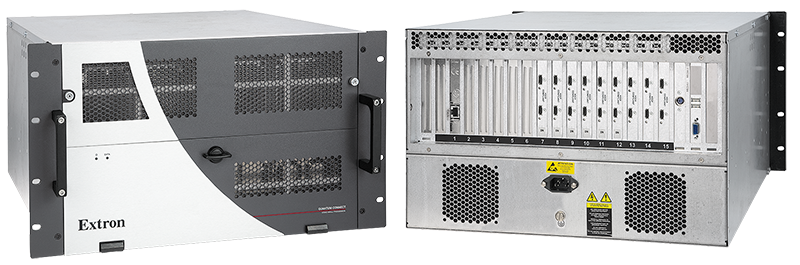

The Extron Quantum® Connect Series features HDCP-compliant videowall processors that are ideal for videowalls with two, four, or six displays. They deliver the same high-quality scaling and real-time performance as Extron's Quantum Elite processors. Powerful video processing and high-performance scaling technology produce superior quality images. Quantum Connect 82 and Quantum Connect 84 incorporate a 4U chassis and support eight HDMI inputs with two or four HDMI outputs. Quantum Connect 126 features a 6U chassis with solid-state storage drives and dual-redundant power supplies. It supports 12 HDMI inputs and six HDMI outputs. All models are excellent for crafting professional quality videowall presentations in control rooms and digital signage in public spaces and retail environments.

Key Features

  • Videowall processing for videowalls with up to six displays
  • HDCP-compliant HDMI inputs and outputs support resolutions up to 1920x1200 and 1080p/60
  • High-speed, dedicated video/graphic bus delivers real-time performance
  • High-quality image upscaling and downscaling
  • Bezel compensation for flat panel displays
  • Quantum Connect 84 and Quantum Connect 126 integrate easily into environments that incorporate a 4K display such as lobbies, auditoriums, and simulation
  • Fast, flexible source acquisition
  • Restriction-free windowing
  • Source zoom and pan
  • HDCP Visual Confirmation provides a full-screen green signal when encrypted content is sent to a non-compliant display
  • Key Minder® continuously verifies HDCP compliance for quick, reliable switching
  • Easy-to-use configuration and control software
  • Powerful system control
  • Ruggedized, real-time operating system and power redundancy features support 24/7 operation
Quantum Connect Series Diagram
Quantum Connect Series Diagram
