Professional Grade Digital Audio Signal Processing

Powerful 32/64-bit floating point digital signal processing engine
Intuitive Graphical User Environment
Extensive selection of audio DSP tools

Four Matrix Switchers in One

8x6 VGA/component video matrix
6x6 composite video or S-video matrix
14x6 stereo audio matrix and a 4x6 mic/line matrix mixer

More
32 Memory Presets
Using the DSP Configurator Software, up to 32 memory presets are available to store and recall settings for DSP processing, audio and mic levels, and audio and video I/O ties. Presets for just the audio/video ties can also be created.
Close
More
Intuitive Graphical User Environment

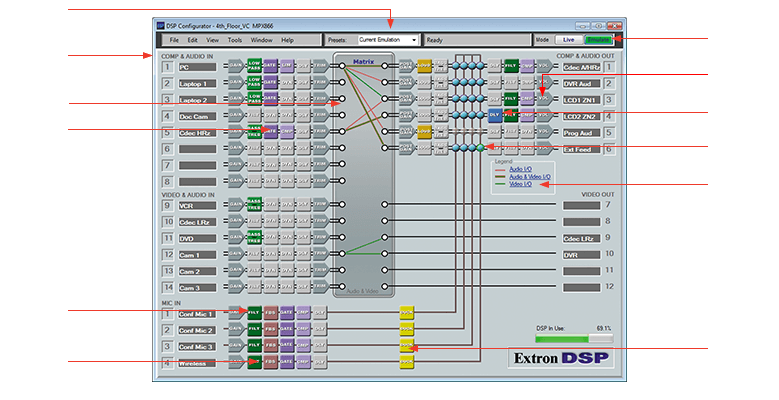

The DSP Configurator Software feature a Graphical User Environment that offers a clear view of all input and outputs, audio processing blocks, audio and video routing ties, and microphone mixing points in a single window. This allows a designer or installer to quickly view all audio and video-related activities without having to access sub-windows or submenus.
Close
More
I/O Ties
The Graphical User Environment of the DSP Configurator Software provides a clear view of all audio and video I/O ties. using the mouse or the keyboard, ties for audio or video signals, or both can be created, modified, or deleted in real-time. They can then be saved and recalled as presets within the DSP Configurator Software. Presets can also be recalled from the MPX Plus 866 A front panel, through RS-232 serial control, or via IP Link Ethernet control.
Close
More
Dynamics
The DSP Configurator Software enables fine tuning and adjustment of the dynamics of all incoming and outgoing signals from the MPX Plus 866 A. Two Dynamics processing blocks are available for each input and output. These blocks can be selected and customized to provide automatic gain control compression, limiting, or noise gating.
Close
More
Input and Output Filters
The Filter block offers three customizable filters for each line input, five for each mic input, and nine for each of the six outputs. A filter can be selected from parametric EQ, low pass, high pass, or bass and treble shelving options. Customizable parameters include frequency, roll-off slope, boost/cut, and Q, depending on the specific filter.
Close
More
Feedback Suppression
The FBS - Feedback Suppression block is used to counteract the ringing due to frequencies cycling out of control through the microphone and speakers. The feedback supression processor for the MPX Plus 866A engages up to twenty notch filters with adjustable Q. Fefteen of the filters and dynamic, and the processor uses these to automatically detect and then eliminate the ringing. Five additional fixed filters can be adjusted manually or transferred from the dynamic filters.
Close
More

Emulate and Live modes offer flexible system configuration options whether connected to the switcher or not
Close
More
Output Volume
The MPX Plus 866A provides adjustment of output volume as well as muting for each of the six A/V outputs, along with real-time metering. To monitor any or all input and output signal levels, a meter bridge window is also available.
Close
More
Delay
A Delay processing block is available for each input and output. Delay is adjustable up to 200 ms, and can be selected in units of time, feet, or meters. A temperature parameter is available for distance adjustments.
Close
More
Mic/Line Matrix Mixer
The DSP Configurator Software is also used to manage and control mic/line audio matrix mixing. Each mic/line input can be mixed into each of the six available line outputs, with dedicated stereo mix level and muting controls at each node.
Close
More
Alternate I/O Views
With just the touch of a function key, the user can toggle between Audio Only, Video Only, or Audio & Video I/O views. The DSP Configurator Software allows for live changes to audio and video routing ties using keystrokes or a mouse. In Video Only I/O view, video-specific options are a vailable inducing composite and S-video transcoding, RGB output delay, and video output muting.
Close
More
Ducking
The Ducking block is used to give priority to a specific microphone by automatically attenuating the levels of other microphones and program sources, whenever the priority microphone is active. Ducking setup is performed for all mic/line inputs on a unique global setup page. An extensive range of customizable options for ducking are available.
Close

More
Four matrix switchers in one:
- 8x6 VGA/component video
- 6x6 composite video and S-video
- 14x6 stereo audio
- 4x6 mic/line matrix mixer
Close
More
Wideband video performance
300 MHz (-3dB) RGB bandwidth accommodates most common computer-video sources
Close
More
Global presets and Partial presets
Up to 32 presets can be saved and recalled as Global presets for audio and video I/O ties, or Partial presets for saving audio DSP settings as well as I/O ties
Close
More
Video genlock
Provides for vertical interval switching for smooth, seamless transitions when switching between synchronized video sources
Close
More
Video transcoder
Built-in video transcoder simplifies integration of composite video and S-video sources
Close
More
High quality digital decoder
Eliminates jitter, dot crawl, and other decoding artifacts and improves the video from older analog sources or worn videotape
Close
More
Audio matrix switcher
14x6 audio matrix with active audio buffering for ease of integration with consumer-grade A/V products
Close
More
Mic/Line audio matrix mixer
4x6 mic/line audio matrix mixer with selectable +48V Phantom power for ease of integration with common microphone types, including wireless microphones
Close
More
24-bit ADCs and DACs with 48 KHz Sampling
High performance 24-bit ADCs - analog-to-digital converters and DACs - digital-to-analog converters with 48 kHz sampling
Close
More
ProDSP
Provides full control of audio input and output levels plus a wide array of audio processing tools for program and microphone signals
Close
More
Powerful 32/64-bit floating point audio DSP engine
Allows for multiple simultaneous audio processing algorithms with minimal latency
Close
More
Dual serial ports and IP Link^®
Two serial ports and IP Link Ethernet for optimized control in single and divided room applications
Close

Extron MPX Plus 866 A

The Industry's First AV Matrix with Professional DSP

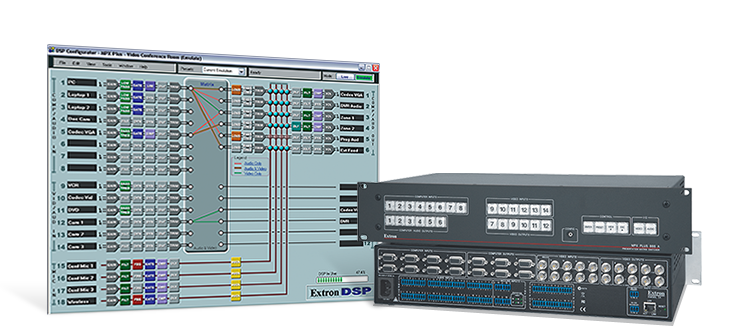

The Extron MPX Plus 866 A ProDSP™ Media Presentation Matrix Switcher is a unique AV multi-switcher with integrated ProDSP, a powerful digital audio processing platform with an extensive selection of audio DSP tools for audio system design, configuration, and optimization. Intuitive DSP Configurator™ Software provides a complete system view of the switcher’s operational aspects within the Graphical User Environment. With ProDSP, the MPX Plus 866 A is an ideal one-box solution for complete audio and video integration that simplifies system requirements, expedites installation, and saves money.

Key Features

Entirely new, powerful 32/64-bit floating point audio DSP engine from Extron supports multiple, simultaneous DSP processes with extremely low latency

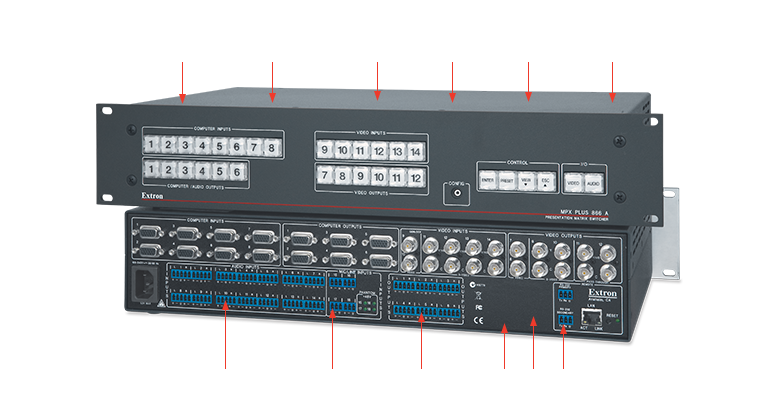

Four matrix switchers in one: 8x6 VGA, 6x6 composite video or S-video, 14x6 stereo audio, and a 4x6 mic/line matrix mixer
Intuitive Graphical User Environment allows for complete AV system visualization, audio DSP processing control, audio and video I/O ties, and microphone mixing points in a single window
SpeedNav keyboard navigation for mouse-free operation of the DSP Configurator Software from a laptop

Extensive Array of DSP Tools

GAIN STAGES	4 gain stages across line level channels Gain control at mic mix points 2 gain stages across mic/line channels
DYNAMICS	AGC Compressor Limiter Noise gate
DUCKING	1 ducking processor per mic input; 2 ducking priority groups
LOUDNESS	1 loudness processor per line output
FILTERS	3 filters per line input, 5 filters per mic input, 9 filters per output High pass Low pass Shelving Parametric EQ
DELAY	1 processor per input and output up to 200 ms each
FEEDBACK SUPPRESSION	1 anti-feedback processor per mic/line input
PRESETS	32 presets Global - audio and video ties only Partial - selected DSP settings
