MVC 121 Plus

Three Input Stereo Mixer with DSP

The Extron MVC 121 Plus is a compact, three input stereo audio mixer featuring a digital signal processing platform for audio signal mixing and control. The MVC 121 Plus features a stereo line level input and two mic/line level inputs with 48 volt phantom power for condenser microphones, plus fixed and variable stereo line level outputs. It offers gain, filter, and tone processing with quick and intuitive configuration using the DSP Configurator™ Software, allowing the MVC 121 Plus to be installed in very little time. The MVC 121 Plus is ideal for presentation applications that require line and microphone audio mixing with DSP in a small form factor.

Key Features

  • Mixes two microphone inputs and a stereo line input to two stereo outputs
  • DSP audio signal processing
  • 24-bit/48 kHz analog-to-digital and digital-to-analog converters
  • Fixed, low latency DSP processing

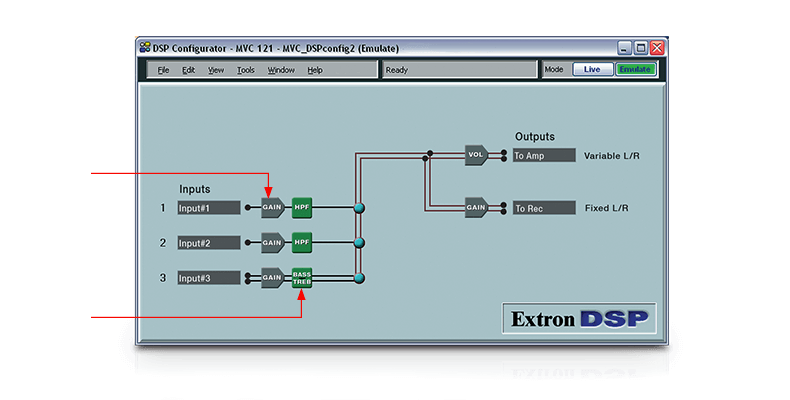

  • DSP Configurator™ Software
  • Intuitive Graphical User Environment
MVC 121 Plus Diagram
MVC 121 Plus Diagram
