MPS 602

Media Presentation Switcher with DTP Extension

The Extron MPS 602 is a simple-to-use, six input media presentation switcher for digital and analog sources. It offers digital video switching with three HDMI inputs and one DTP ® twisted pair input, and analog video switching with two RGB inputs that are digitized for distribution to the digital outputs. For increased flexibility, the MPS 602 includes a DTP twisted pair output and an HDMI output that are switch-selectable. The DTP input and output work in conjunction with DTP transmitters and receivers to extend video, audio, and bidirectional control signals up to 330 feet (100 meters), and each DTP link requires just a single shielded CATx cable. The MPS 602 also includes several audio switching and processing features, available power amplification, plus flexible control options for complete AV switching and distribution.



Key Features

  • One DTP twisted pair input, three HDMI inputs, and two RGB inputs
  • Selectable HDMI or DTP output
  • Integrated DTP input and output support transmission of video, control, and analog audio up to 330 feet (100 meters) over a shielded CATx cable

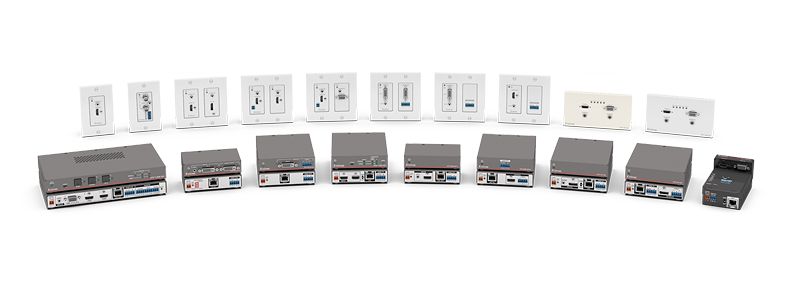

  • Compatible with all DTP transmitters and receivers
  • Remote powering of select DTP transmitters and receivers
  • Bidirectional RS-232 and IR pass-through for AV device control
  • HDMI audio embedding and de-embedding
  • HDCP compliant
  • EDID Minder ® automatically manages EDID communication between connected devices
  • Mic/line input with 48 volt phantom power

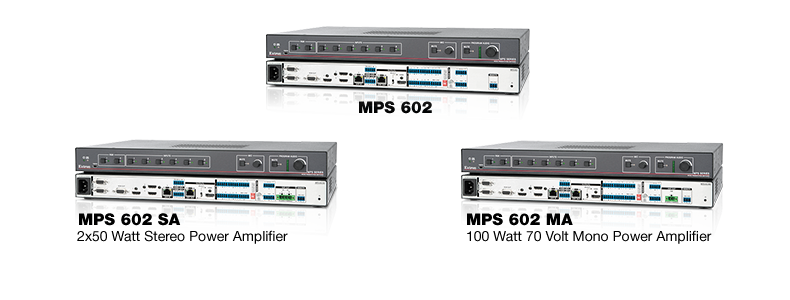

  • Available with energy efficient Class D stereo or mono amplifier:
    • 2 x 50 watts @ 4 ohms; 2 x 25 watts @ 8 ohms
    • 1 x 100 watts @ 70 volts

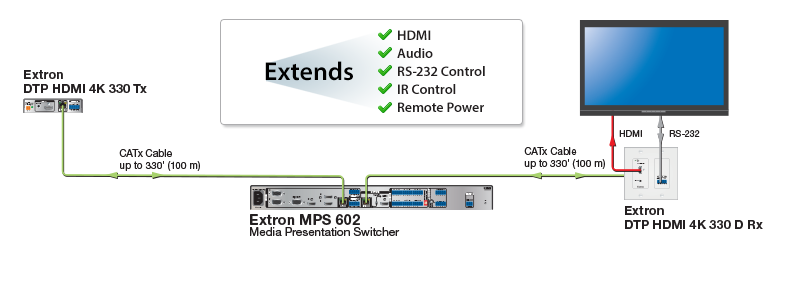

MPS 602 Diagram
MPS 602 Diagram
