MGP Pro

HDCP-Compliant Multi-Window Processors

The Extron MGP 462 Pro and MGP 464 Pro are powerful, high resolution multi-window processors that enable the simultaneous distribution of multiple images on a single screen – two windows for the MGP 462 Pro and four windows for the MGP 464 Pro. Full HDCP compliance at all HDMI inputs and outputs assures worry-free presentation of protected content. The MGP Pro also provides two simultaneous outputs that generate HDMI and RGBHV video, simplifying integration with different display devices. The MGP 462 Pro and MGP 464 Pro are ideal for applications that require side-by-side display of critical quality graphics and video content from multiple sources.

To enhance and simplify integration of sources and displays, the MGP 462 Pro and MGP 464 Pro feature Key Minder®, an Extron-exclusive technology that authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching. The MGP Pro also includes Extron's innovative Graphic Still Store, a feature that enables screen captures of the current output, or images uploaded from a PC, to be stored for use as presentation background images. Live video from an HDMI source can also serve as the background to any presentation.

Key Features

  • Combines HDMI, high resolution RGB, component, S-video, and composite input sources into multiple windows on a single display
  • RGB, HDTV component video, and HDCP-compliant HDMI output
  • Optional HDMI and 3G-SDI/HD-SDI inputs
  • Key Minder continuously verifies HDCP compliance for quick, reliable switching
  • Selectable output rates from 640x480 to 1920x1200, including HDTV 1080p/60 and 2K

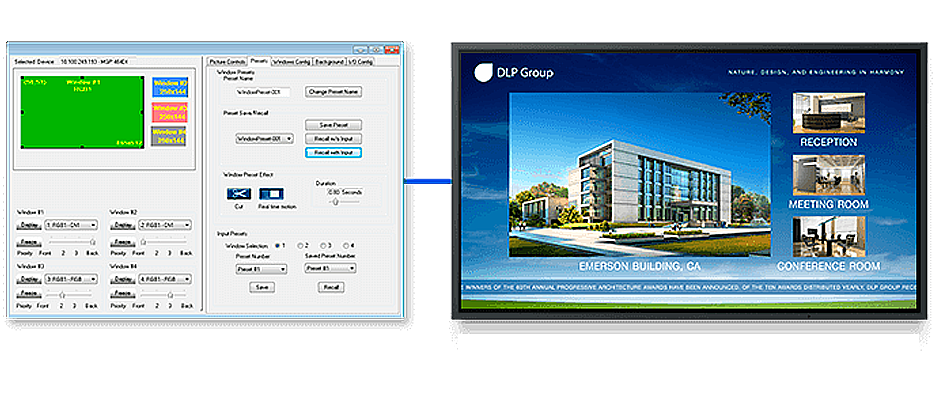

  • Graphic Still Store enables use of screen captures or uploaded graphics as background images

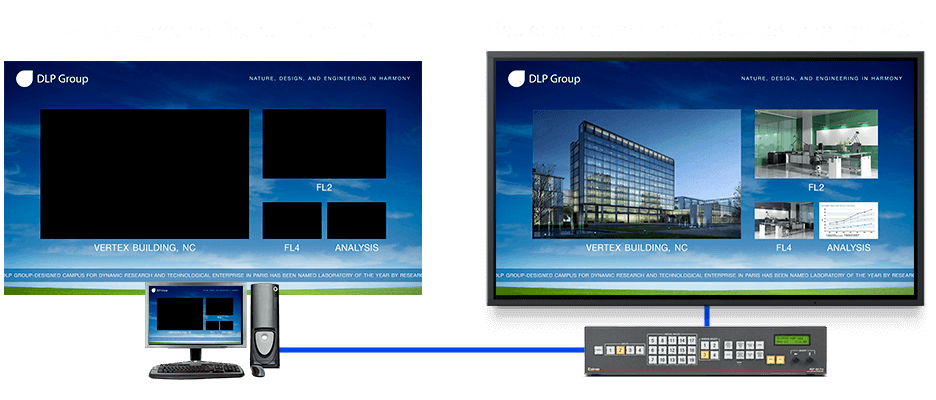

  • Live video background from a dedicated HDMI source
  • EDID Emulation provides selectable resolutions and refresh rates to ensure reliable operation
  • Cascade MGP 462 Pro and MGP 464 Pro units for additional windows
  • Window transition effects including dissolves, wipes, and cuts
  • 128 window presets for multiple window configurations

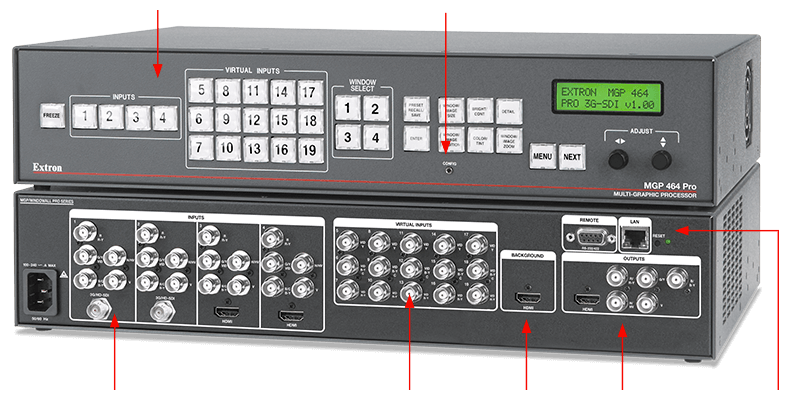

MGP 464 Pro DI Diagram

Featured Media

Product Overview

MGP Pro and WindoWall Pro

Extron introduces the MGP Pro HDCP-compliant multi-window processors with Extron-exclusive video processing and integrator-friendly features.
MGP 464 Pro - Up and Running in 12 Minutes

MGP 464 Pro - Up and Running in 12 Minutes

Watch an Extron Systems Support Engineer take a brand new MGP 464 Pro, HDCP-Compliant Multi-Window Processor out of the box and put it into full operation in just 12 minutes.
MGP 464 Pro Out of the Box - More Details

MGP 464 Pro Out of the Box - More Details

An Extron Systems Support Engineer provides an in-depth look at the MGP 464 Pro configuration software.
4:4:4 Signal Processing

4:4:4 Signal Processing

Dave Pincek, Vice President of Product Development, explains why 4:4:4 processing is necessary for systems that incorporate computer content.

Learn More

MGP 462 Pro

MGP 462 Pro

Two Window HDCP-Compliant Multi-Window Processor
MGP 464 Pro

MGP 464 Pro

Four Window HDCP-Compliant Multi-Window Processor
4:4:4 Test Pattern

4:4:4 Test Pattern

Download the Extron 4:4:4 test pattern for verifying system color processing performance
