Extron & GoTo

We are pleased to announce Extron has partnered with GoTo to integrate audio, video, and control technologies with LogMeIn’s GoToRoom conference room solution. Basic Extron and GoTo Room systems include an Extron IP Link Pro processor that provides everything needed to control a broad variety of conferencing and audiovisual functions in a room with a Dolby Voice System. For larger or more elaborate meeting room configurations, an Extron TouchLink Pro touchpanel can be added as an additional point of control. This scalable, turn-key solution also incorporates advanced ethernet monitoring of the GoToRoom so you can automate a space by simply joining or leaving a meeting.

Extron is helping customers deploy simple, scalable meeting solutions in their workspaces and across their enterprise. Partnering with GoTo provides a new level of convenience, providing an effortless, centralized control of other in-room AV devices, all with the goal of delivering an exceptional collaboration experience.

Key Features

  • Automate rooms with seamless integration of Extron AV device control and GoToRoom hardware solutions.
  • Enable flexible room control with an Extron TouchLink Pro Touchpanel along with optimized speakerphone placement.
  • Provide advanced room functionality and integrate room sensors for custom room solutions and no-touch meetings.

GoToConnect & Jive

Jive VoIP Partnership

DMP 128 Plus, DMP 128 FlexPlus and DMP 64 Plus models include up to eight SIP 2.0 VoIP lines with wideband codec support that can be configured as individual extensions or with multiple call appearance channels to support local conferencing applications. Compatible with GoToConnect (powered by Jive), any single V model of the DMP Plus Series can be used for a single VoIP line or as a VoIP farm for up to eight rooms.

GoTo Design Solutions

Huddle Room with GoToRoom and Dolby Voice Room

GoToRoom Conferencing, Dolby Voice Room, Device Control, Room Scheduling, Up to 4 People

Conference Room with GoToRoom and Dolby Voice Room

GoToRoom Conferencing, Dolby Voice Room, Device Control, Room Scheduling, AV Switching, Signal Extension, Up to 12 People

Large Conference Room with GoToRoom and Dolby Voice Room

GoToRoom Conferencing, Dolby Voice Room, Device Control, Signal Extension, Sound Reinforcement, Room Scheduling, Up to 16 People

  • Select a Design Solution
    Huddle Room with GoToRoom and Dolby Voice Room Conference Room with GoToRoom and Dolby Voice Room Large Conference Room with GoToRoom and Dolby Voice Room

Huddle Room with GoToRoom and Dolby Voice Room

SPACE REQUIREMENTS

Huddle rooms with video conferencing capability enable collaboration with team members at different geographical locations. This system uses Dolby Voice Room with GoToRoom, taking advantage of the intuitive interface of the Dolby Conferencing Phone and transforming this workspace into a GoToRoom System. A Dolby Voice Camera is mounted above the display. AV signals are sent from the Dolby Voice Hub to the Display and an Extron IPCP Pro 250 Control Processor together with the OCS 100C is used to automate lighting, shades and control of the display.

EXTRON EQUIPMENT LIST

IPCP Pro 250 IP Link Pro Control Processor 1
OCS 100C Occupancy Sensor - Ceiling Mount 1
Cable Cubby 100 Cable Access Enclosure 1
Cable Cubby 100 Switch Kit Switch for Cable Cubby 100 1
TLS 725M TouchLink Scheduling Panel 1
CAPABILITIES
  • Connect with team members using GoToRoom on a Dolby Voice Room System
  • Room automation enabled with the Extron OCS 100C occupancy sensor and the Extron IPCP Pro 250 to start the system along with providing control of the display via RS-232
  • Switch easily between local presentation or conferencing via the Dolby Conference Phone
  • Room Scheduling is provided by TLS 725M TouchLink Scheduling Panel
  • Easy integration with Extron GlobalViewer Enterprise for complete AV resource management

Click to view larger

Huddle Room with GoToRoom and Dolby Voice Room room view

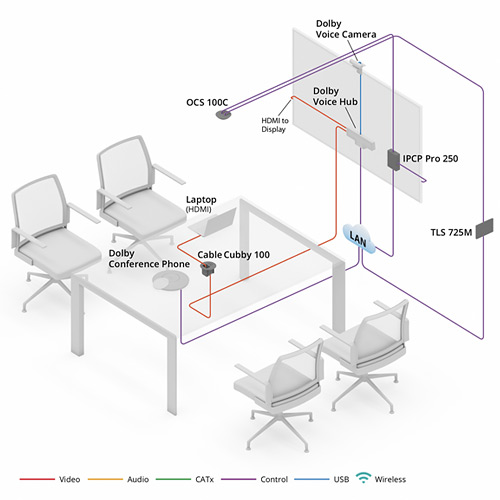

Huddle Room with GoToRoom and Dolby Voice Room diagram view
Previous Next

Conference Room with GoToRoom and Dolby Voice Room

SPACE REQUIREMENTS

Conference rooms provide a more formal setting for meetings and collaboration. Accommodating up to 12 people, they are larger than typical meeting rooms and are generally equipped for multi-purpose gatherings. This system uses Dolby Voice Room with GoToRoom taking advantage of the intuitive interface of the Dolby Conferencing Phone and transforming this workspace into a GoToRoom System. Extron's EBP 50 allows for effortless switching between laptop sources. A Dolby Voice Camera is mounted above the display. AV signal extension is provided by Extron’s DTP2 signal extension products and then sent to the display via the Dolby Voice Hub. Additionally, the Extron IPCP Pro 250 Control Processor together with the OCS 100C is used to automate lighting, shades and control of the display.

EXTRON EQUIPMENT LIST

IPCP Pro 250 IP Link Pro Control Processor 1
EBP 50 eBUS Button Panel 1
TLS 725M TouchLink Scheduling Panel 1
OCS 100C Occupancy Sensor - Ceiling Mount 1
Cable Cubby 100 Cable Access Enclosure 1
DTP2 T 203 4K/60 HDMI DTP2 Transmitter and Switcher 1
DTP2 R 211 4K/60 HDMI DTP2 Receiver 1
CAPABILITIES
  • Connect with team members using GoToRoom on a Dolby Voice Room system
  • Room automation enabled with the Extron OCS 100C occupancy sensor and the Extron IPCP Pro 250 to start the system along with providing control of the display via RS-232
  • Switch easily between local presentation or conferencing via the Dolby Conference Phone or the Extron eBUS Button Panel
  • Meeting presenters have a convenient interface near the display to adjust audio settings and other device control.
  • Room Scheduling is provided by TLS 725M TouchLink Scheduling Panel
  • Easy integration with Extron GlobalViewer Enterprise for complete AV resource management

Click to view larger

Conference Room with GoToRoom and Dolby Voice Room room view

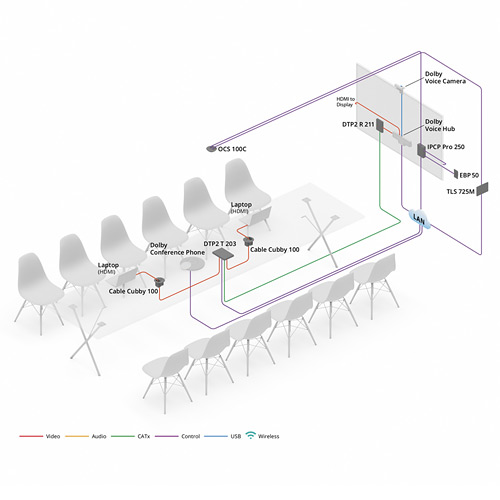

Conference Room with GoToRoom and Dolby Voice Room diagram view
Previous Next

Large Conference Room with GoToRoom and Dolby Voice Room

SPACE REQUIREMENTS

A Large Conference room provides a more formal setting for meetings. Accommodating up to 16 people, they are larger than typical meeting rooms and are generally equipped for multi-purpose gatherings. This system uses Dolby Voice Room with GoToRoom, taking advantage of the intuitive interface of the TLP Pro 725T which provides effortless control of the GoToRoom interface while providing intuitive AV system control. A Dolby Voice Camera is mounted above the display. AV signal extension is provided by Extron’s DTP2 signal extension products and then sent to the display via the Dolby Voice Hub. Audio processing and amplification is provided by Extron’s DMP DSP processor and Extron’s XPA Ultra series of amplifiers. Additionally, the Extron IPCP Pro 250 Control Processor together with the OCS 100C is used to automate lighting, shades and control of the display.

EXTRON EQUIPMENT LIST

IPCP Pro 250 IP Link Pro Control Processor 1
TLP Pro 725T 7" Tabletop TouchLink Pro Touchpanel 1
TLS 725M TouchLink Scheduling Panel 1
OCS 100C Occupancy Sensor - Ceiling Mount 1
Cable Cubby 100 Cable Access Enclosure 1
DTP2 T 211 4K/60 HDMI DTP2 Transmitter 1
DTP2 R 211 4K/60 HDMI DTP2 Receiver 1
DMP 64 Plus Audio DSP Processor with AEC 1
XPA U 1002-70V Two Channel Amplifier, 100 watts at 70 volts 1
CAPABILITIES
  • Connect with team members using GoToRoom on a Dolby Voice Room system
  • Room automation enabled with the Extron OCS 100C occupancy sensor and the Extron IPCP Pro 250 to start the system along with providing control of the display via RS-232
  • Switch easily between local presentation or conferencing via the Dolby Conference Phone
  • 7” touch panel provides control of the GoToRoom codec as well as provides display and room controls
  • Room Scheduling is provided by TLS 725M TouchLink Scheduling Panel
  • Easy integration with Extron GlobalViewer Enterprise for complete AV resource management

Click to view larger

Large Conference Room with GoToRoom and Dolby Voice Room room view

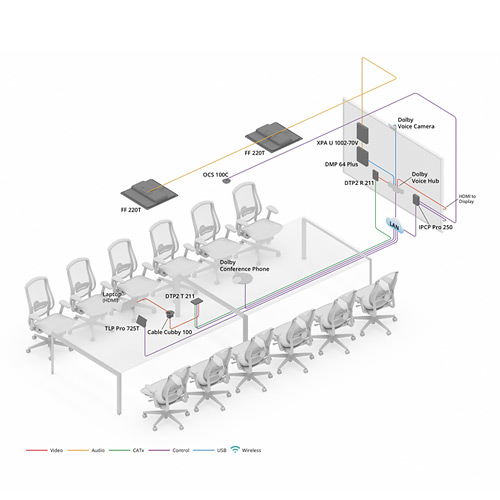

Large Conference Room with GoToRoom and Dolby Voice Room diagram view
Previous Next
