eBUS Button Panels

The Easiest Way to Deploy and Expand AV System Control

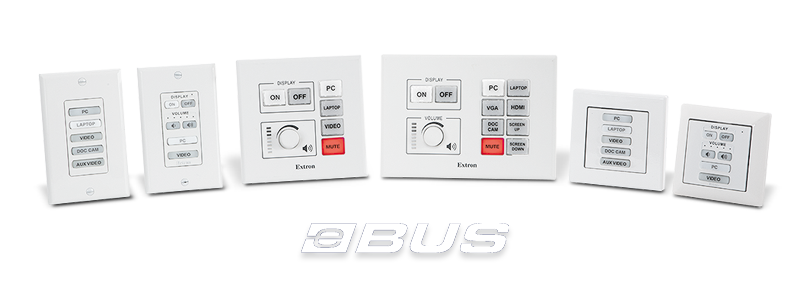

Extron’s eBUS button panels are customizable, integration-friendly AV system control interfaces designed for use with Extron IPCP Pro control processors. eBUS button panels come in standard form factors and multiple units may be linked together by a single cable that carries both power and communication. Since they have the same physical appearance as Extron’s broad range of MediaLink controllers, eBUS button panels can be used alongside them throughout a facility while preserving a consistent look and user experience. Buttons can be easily customized using Extron Button Label Generator software or by using the online Custom Button Builder application.


eBUS

eBUS Technology

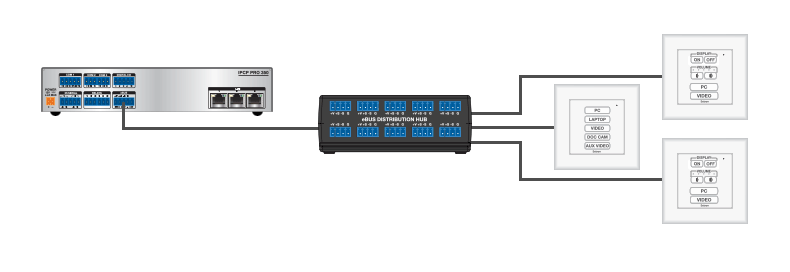

Extron’s integration friendly eBUS technology is based on a unique digital bus architecture that allows for easy control system expansion, greater design options, and future upgrades. As with our TouchLink Pro touchpanels, eBUS button panels are designed for use with any Extron IPCP Pro Series control processor. A single eBUS button panel can be used as the AV control interface for a smaller system or multiple button panels and touchpanels may be combined when a more elaborate control system is required. Powered and non-powered eBUS distribution hubs are available to accommodate a variety of system design topologies.

eBUS Button Panels in a Broad Variety of Form Factors

Look for eBUS button panels in the following sizes and configurations:

Rack Mount

The Extron EBP 108 RAAP Rack Mount eBUS® Button Panel is a fully-customizable AV system control interface designed for use with Extron eBUS-enabled control systems. This easy-to-use control panel connects to an IPCP Pro control processor to perform a wide variety of AV system functions such power On/Off, input switching, volume control, and much more.

EBP 108 RAAP - Shown with Optional AAP's

Furniture Mount - Cable Cubby Series/2

The Extron EBP 1200C eBUS button panel combines intuitive AV control, connectivity, and power all in one, furniture-mountable device. The easy-to-use, flip-up button panel works with all eBUS-enabled control systems and connects to an IPCP Pro control processor to perform a wide variety of AV system functions such as display On/Off, input switching, volume control, and much more.

EBP 1200C

US Gang

The EBP 50, EBP 100 and EBP 200 are one, two, and three-gang eBUS button panels with dual-colored backlit buttons and a volume control knob for smooth, precise volume adjustments.

EBP 50
EBP 100
EBP 200

Decorator-Style Wallplates

There are nine eBUS button panels for decorator-style wallplates in single and dual-gang form factors. Decorator-style wallplate models ship with black and white wallplates and mud rings for easy installation.

EBP 105 D

EBP 106 D

EBP 106P D

EBP 108 D

EBP 110 D

EBP 111 D

EBP VC1 D

EBP VC2 D

EBP NAV D


Flex55 and EU Wall Frames

There are seven Flex55 and EU wall frame models. These mount into Flex55 enclosures or into one-gang EU junction boxes.

EBP 105 EU

EBP 105P EU

EBP 106 EU

EBP 108 EU

EBP 110 EU

EBP VC1 EU

EBP VC2 EU


MK Wall Frames

There are eight MK wall frame models, and all mount into one-gang MK boxes and enclosures for use in the UK, Middle East, Singapore, and other regions using MK-type enclosures. They include white wall frames and mounting brackets.

EBP 105 MK

EBP 105P MK

EBP 106 MK

EBP 108 MK

EBP 110 MK

EBP VC1 MK

EBP VC2 MK

EBP NAV MK
