DTP CrossPoint 4K Series

4K Scaling and Seamless Switching

The industry-leading Extron DTP CrossPoint® 4K Series matrix switchers are your new go-to products for 4K presentation systems. These highly versatile presentation matrix switchers deliver all of the technologically advanced capabilities you need to design and integrate advanced AV systems in one box. This includes a matrix switcher with 4K inputs and outputs, built-in independent scalers that are powered by Extron Vector™ 4K scaling technology and support glitch-free switching, integrated DTP® and XTP® signal extension, comprehensive audio DSP and AEC capabilities unmatched in the industry, a high performance mono or stereo amplifier, and an advanced control processor that is uniquely expandable. The DTP CrossPoint 4K Series sets the new industry standard for fully integrated AV systems, greatly simplifying system design and installation, and dramatically reducing your client's total cost of ownership.

The DTP CrossPoint 4K IPCP features a built-in Extron IP Link® Pro control processor, with a secure, dedicated three-port AV LAN switch plus a standard Ethernet port to control local AV devices and safeguard them from outside intrusion or interference. The DTP CrossPoint 4K IPCP delivers high-speed processing and abundant control port capacity for complete, customizable control of an entire AV system, including all source devices and displays, plus lighting, window shades, projection screens, occupancy sensing, and more.

Available with IP Link Pro Control Processor
Connected 2019 Most Popular Awards
InAVation Awards Technology Winner 2017
rAVe 2016 Reader's Choice
Best of Show 2016 Prolight + Sound Installation

Key Features

  • All-in-one matrix switcher, scaler, audio DSP with AEC, audio power amplifier, and control processor
  • Choose from 10x8, 8x6, 8x4, and 8x2 matrix switcher configurations:
    • DTP CrossPoint 108 4K - Four DTP inputs, six HDMI inputs, four HDMI outputs, and four independently scaled DTP outputs
    • DTP CrossPoint 86 4K - Two DTP inputs, six HDMI inputs, two HDMI outputs, and four independently scaled DTP outputs
    • DTP CrossPoint 84 4K - Two DTP inputs, six HDMI inputs, two HDMI outputs, and two independently scaled DTP outputs
    • DTP CrossPoint 82 4K - Two DTP inputs, six HDMI inputs, and two independently scaled DTP outputs
  • 4K matrix switching with logo keying
  • Two DTP outputs feature mirrored HDMI connections to support local monitoring
  • Integrated DTP inputs and outputs support transmission of video, control, and audio up to 330 feet (100 meters) over a shielded CATx cable
  • Advanced Extron Vector 4K scaling engine
  • Selectable scaled DTP output rates from 640x480 to 4K
  • Seamless switching with selectable transition effects
  • Compatible with DTP 230 Series and DTP 330 Series, plus XTP CrossPoint matrix switchers
  • Remote powering of select DTP transmitters and receivers
  • DTP outputs are compatible with HDBaseT-enabled devices
  • Compatible with Extron XTP DTP 24 and CATx shielded twisted pair cable
  • Available with integrated IPCP Pro control processor for complete AV system control:
    • Supports TouchLink® Pro touchpanels and eBUS® button panels
    • Integrated three-port AV LAN switch allows AV devices to be isolated from the corporate network
    • Supports LinkLicense ®
    • Fully customizable using Extron control system software
    • Controller groups

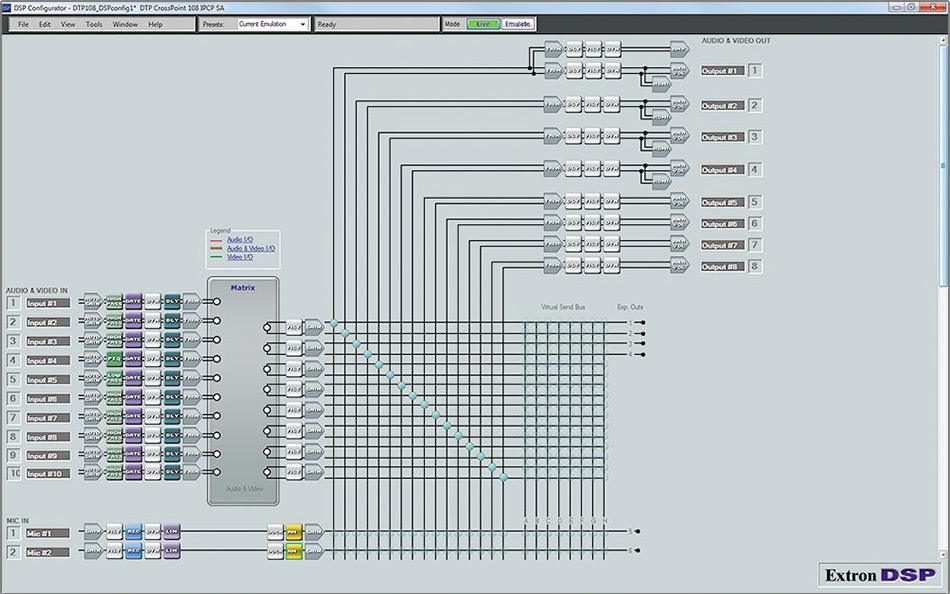

  • Advanced DSP with AEC and expansion capabilities
  • Available with energy efficient Class D stereo or mono amplifier:
    • 2 x 50 watts @ 4 ohms; 2 x 25 watts @ 8 ohms
    • 1 x 100 watts @ 70 volts

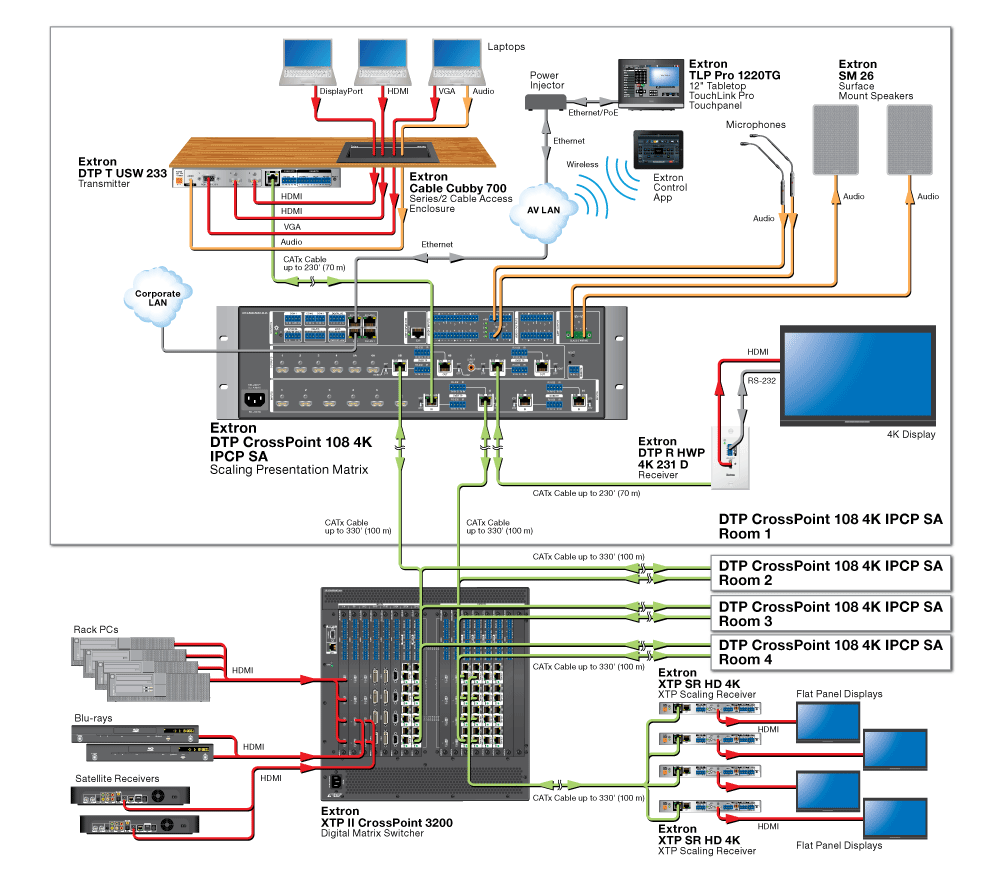

DTP CrossPoint 108 4K Diagram
DTP CrossPoint 108 4K
