Complete Classroom AV Systems
AV Switching, Control, and Audio Amplification for Smarter Learning
From Control to Clarity: AV That Works for Instructors
Imagine walking into a classroom where your voice carries effortlessly to every student, your lesson materials switch seamlessly between devices, and you stay in control of the entire learning environment with just a touch. A complete classroom AV system makes this possible. Extron solutions offer scalable features like AV switching, audio and voice amplification, and centralized control, helping educators focus less on technology hassles and more on teaching. For community colleges and K-12 schools, this investment not only embraces clarity and engagement today, but also ensures classrooms are ready for tomorrow’s evolving educational needs.
Featured Products

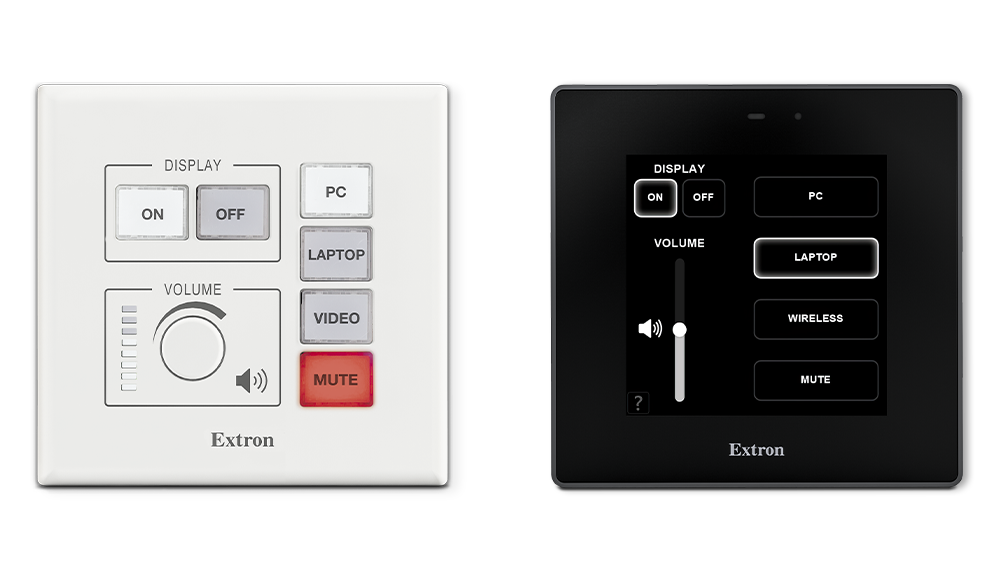

For Suspended Ceilings, with MLC Plus 400
Option for MLC Plus 100 available
For Flat Panel Displays and Wall-Mounted Ultra Short-Throw Projectors, with MLC Plus 400
Option for MLC Plus 100 available
For Classroom Voice Amplification
Network Managed Bells, PA, Intercom, and Visual Messaging
Server-Based AV Resource Management Software
Variety of Classroom Kit Options
Applications
Bring simplicity, performance, and style to your learning spaces with our PlenumVault Digital Systems and WallVault Digital Systems. Modern connectivity needs are fully supported, including USB C sources, by pairing the system with an Extron DTP3 extender, such as the DTP3 T 211 D, enabling simplified plug-and-teach operation. Instructors can easily share high-quality video and crystal-clear audio from multiple sources, all controlled through an intuitive touchscreen interface. WallVault Digital Systems offer a sleek, wall-mounted design. PlenumVault Digital Systems provide a discreet, above-ceiling installation. Both deliver a clean, professional look without sacrificing functionality.
Upgrade your classroom today with innovative AV technology that enhances teaching, engages students, and creates a dynamic learning environment.
PlenumVault Digital System Application
This PlenumVault system allows students to watch video instructional content on a projection screen with a short-throw projector. The content is supplied from a laptop PC, a document camera, or a media player. These sources connect via PVT HD HDMI wallplates which extend 4K video and stereo audio signals to a PVS 407D switcher amplifier located up to 130’ away. The switcher amplifier selects which source is supplied to the projector in response to selections made by users at an MLC Plus 400 touchscreen.
The PVS 407D built-in 50 watt amplifier supplies audio from the selected source to two FF 120 Flat Field ceiling speakers, which provide a uniform listening experience throughout the room. Instructors and students speak into VLM 3002H VoiceLift Pro RF wireless pendant and handheld microphones that transmit to a VLR 302 receiver paired with the mics and connected to the switcher amplifier, where the voice audio is selected and amplified to be clearly heard over the ceiling speakers. The central components of the PlenumVault system are securely housed in an enclosure concealed in the space above a suspended ceiling. The 2’ x 2’ enclosure is the size of a ceiling tile and is hinged to swing down for maintenance access.
WallVault Digital System Application
This WallVault system allows students to view video instructional content on a flat panel display. Video is supplied from a laptop PC, a document camera, or a media player. These sources connect via PVT HD HDMI wallplates that send 4K video and stereo audio signals to a PVS 407D switcher amplifier located up to 130’ away. The switcher amplifier selects which source is shown on the display in response to selections made by users at an MLC Plus 400 touchscreen.
The PVS 407D built-in 50 watt amplifier sends audio from the selected source to two FF 120 Flat Field ceiling speakers, which provide a uniform listening experience throughout the room. Instructors and students speak into VLM 3002H VoiceLift Pro RF wireless pendant and handheld microphones that transmit to a VLR 302 receiver paired with the mics and connected to the switcher amplifier, where the voice audio is selected and amplified to be clearly heard over the ceiling speakers. The central components of the WallVault system are securely housed in a tamper-resistant, compact, wall-mounted enclosure.
Education Technology Grant Program
Extron offers several grant programs to qualified educational institutions. The goal is to provide increased visibility and expanded access to AV solutions, allowing key decision makers to evaluate technologies and define AV system standards. To date, Extron has granted more than $25 million worth of equipment and software to over 1,800 classrooms in U.S. school districts.
Learn more about our grants
