AXI 22 AT & AXI 44 AT

Dante Audio Interfaces

The Extron AXI 22 AT and AXI 44 AT are quarter rack width audio interfaces for integrating mic/line sources onto a Dante®-enabled audio system, and for distributing line level audio from a Dante-enabled audio system. They feature two or four mic/line inputs with selectable input gain and switchable 48 volt phantom power, controllable from the front panel. Input gain, output attenuation and phantom power can also be remotely controlled via DSP Configurator Software , or by SIS commands via USB. Both models interface with any Dante-equipped audio product, such as an Extron DMP 128 Plus C V AT, over a standard local area network, and can be powered through PoE. This allows a single network cable connection for bidirectional audio and power from a central equipment rack. The AXI 22 AT features two mic/line inputs and two line level outputs, and the AXI 44 AT features four mic/line inputs and four line level outputs.

Dante logo

Easily Provide Local or Remote Connectivity into Audio Systems

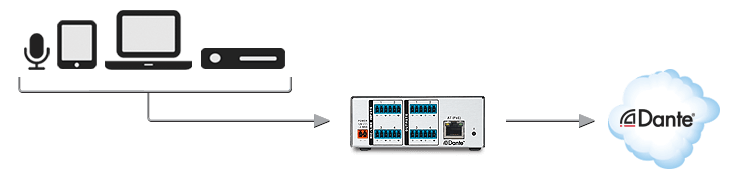

The AXI 22 AT and AXI 44 AT accept analog mic/line sources, which are digitized at 24-bit for output via Dante. The interfaces are connected into a Dante network over Ethernet using standard IP networking protocols. This avoids the effort and expense of pulling long analog cables back to the AV rack. With their small, quarter rack form factor, the AXI 22 AT and AXI 44 AT can be easily mounted under a desk, in a lectern, or in millwork, as well as in a rack.

For additional integration convenience, AXI 22 AT and AXI 44 AT can be remotely powered via Power over Ethernet - PoE, using Extron XTP PI 100 or XTP PI 400 power injectors, network switches equipped with PoE, or midspan PoE injectors.

Dante Audio Networking

Dante enables audio system scalability over a local area network using standard Internet protocols. The family of Dante-enabled products from Extron work together as part of a complete networked audio system solution and integrate with other Dante-enabled products to create efficient, scalable system designs. They accommodate a wide range of audio routing needs in a variety of applications.

Key Features

  • Two or four mic/line inputs for inserting audio onto a Dante network
  • Two or four line level outputs extracting audio from a Dante network
  • Dante audio networking provides a wide range of expansion capabilities
  • Studio grade 24-bit analog-to-digital and digital-to-analog converters with selectable sampling rates up to 96 kHz
  • Input select, gain, and phantom power controls located on front panel and configurable through DSP Configurator Software
  • Power over Ethernet over a single Ethernet cable
AXI AT

Featured Media

AXI 22 AT & AXI 44 AT
AXI 22 AT & AXI 44 AT
Introducing the features and capabilities of the AXI 22 AT and AXI 44 AT, 2x2 and 4x4 Audio Expansion Interfaces with Dante

Learn More

AXI 22 AT
AXI 22 AT
2 Input, 2 Output Audio Expansion Interface with Dante
AXI 44 AT
AXI 44 AT
4 Input, 4 Output Audio Expansion Interface with Dante
AXI 22 AT D
AXI 22 AT D
2 Input, 2 Output Audio Expansion Interface with Dante - Decorator-Style Wallplate
