Annotator 300

HDCP-Compliant Annotation Processor with DTP Extension

The Extron Annotator 300 is a high performance, hardware-based annotation processor that allows a presenter to draw, point, or type over live presentations using a touch display, graphics tablet, or a keyboard and mouse. The HDCP-compliant Annotator 300 includes HDMI and DisplayPort inputs, a universal analog video input, and three simultaneous outputs including two HDMI and a DTP® twisted pair output. It also features advanced Extron video signal processing with a high performance scaling engine and fast, reliable switching. The DTP twisted pair output extends HDMI and bidirectional control signals to a DTP receiver over a shielded CATx cable up to 330 feet (100 meters). The Annotator 300 offers a wide range of annotation tools and controls, all easily accessible by the presenter using an intuitive on-screen GUI.

The Annotator 300 is ideal for applications that require the overlay of graphics and text within AV presentations, including law enforcement, medicine, education, telepresence, and live events.

Key Features

  • Live annotation capabilities plus high performance scaling and switching
  • Integrated three-input switcher with HDMI, DisplayPort, and universal analog video inputs
  • Three simultaneous video outputs
  • Integrated DTP output supports transmission of HDMI, analog audio, and control up to 330 feet (100 meters) over a shielded CATx cable
  • Compatible with all DTP 230 and DTP 330 Series receivers, and DTP-enabled products
  • Intuitive graphical annotation interface
  • Hardware-based graphics and video processing
  • Compatible with popular touch displays and graphics tablets
  • Supports 25 total device connections and simultaneous annotation for two users
  • Capture and store images to a USB flash drive, internal memory, or a network location, plus the ability to recall annotated images
  • Print captured images using a network printer
  • Supports DisplayPort input signals at resolutions up to 2560x1600
  • Configurable Main and Confidence outputs
  • Selectable output rates from 640x480 to 1920x1200, including 1080p/60 and 2K
  • Advanced scaling engine with 30-bit precision processing and motion-adaptive deinterlacing for signals up to 1080i

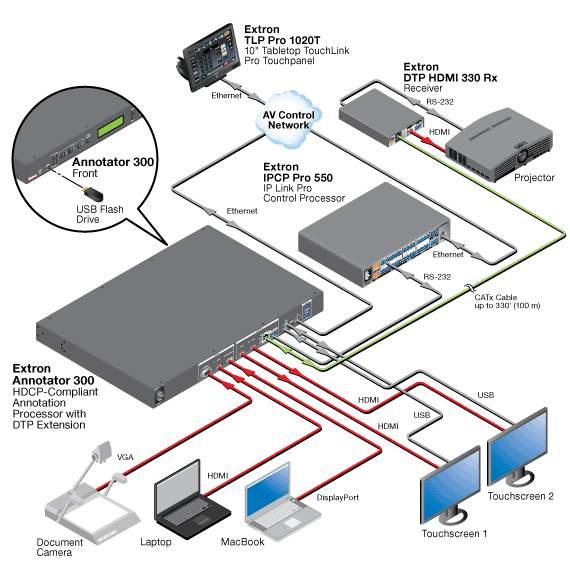

Extron Annotator 300 Diagram
