DUAL AC AAP New

Two AC Outlet AAP - Architectural Adapter Plate
Key Features
  • Two female Edison unswitched AC outlets on front
  • Installs in products that accept a double-space Architectural Adapter Plate
  • Power cable models feature a detachable 7.5' (2.29 m) AC power cord with an IEC female AC input connector on back
  • US conduit model features an attached 6' (1.83 m) length of 3/8" flexible conduit with a 6" (15.24 cm) pigtail of three-wire cable
  • Dual US AC AAP models are UL-listed
  • New Dual JP AC AAP is PSE certified for use in Japan
The Extron DUAL AC AAP
Version Description Part #
US (2) AC Outlets w 6’ (1.83m) Conduit – Black 60-1596-02
US (2) AC Outlets w 7.5’ (2.29m) Power Cable–Black 70-584-02
(2) Edison AC Outlets (PSE) w 7.5’ Power Cable 60-1754-02
US - White 70-584-03 Retired

Extron Dual AC AAPs are double-space Architectural Adapter Plates with two AC power outlets for installation in most Extron AAP mounting panels such as TMK 100 AAP Series table mounts and AAP 102 mounting frames. Dual AC AAPs are available for both the US and Japan. US versions come equipped with either a detachable 7.5 foot (2.29 m) AC power cord or an attached 6 foot (1.83 m) length of 3/8 inch flexible conduit with a 6 inch (15.24 cm) pigtail of three-wire cable for applications requiring a hard-wired conduit to AC power. The Japan version comes equipped with a detachable 7.5 foot (2.29 m) AC power cord. Both US AC outlet AAPs are UL/c-UL listed. The Dual JP AC AAP is PSE certified for Japan. Dual AC AAPs are available in black.

Type: Barrel/Adapter
Size: Double Space

Features

Note: The equipment must be installed only in UL listed products that accept Architectural Adapter Plates (AAPs) and Mini Architectural Adapter Plates (MAAPs) or in a Listed Junction Box with the provided junction box faceplate in accordance with the National Electric Code and the Canadian Electrical Code. AC Cord connected products in the AAP and MAAP families cannot be fixed to a wall or a floor.

RELATED PRODUCTS
  AAP 102 Two-Gang AAP Mounting Frame
  AAP 301 Full-Rack Width, 1U AAP Mounting Frame
  AAP 302 Full-Rack Width, 2U AAP Mounting Frame
  Half Rack Shelf System Half-Rack Width Rack Shelf and Accessories
  TMK 100 AAP Series Table Mounts for AAP - Architectural Adapter Plates
  UCM R308 Universal Controller Mounting Panel with 8 AAP Openings
  UCM RAAP Universal Controller Mounting Rack Kit

Specifications

Dual US and JP AC AAP
General
   Power
      US AC cord model 125 VAC, 50-60 Hz, 6 A max. total
      JP AC cord model 125 VAC, 50-60 Hz, 12 A max. total
      AC conduit model 125 VAC, 50-60 Hz, 12 A max. total
   Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
   Mounting options Rack or furniture mountable with optional AAP mounting frames
   Panel type Cold-rolled steel

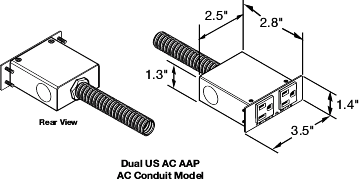

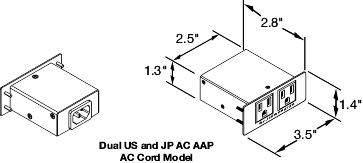

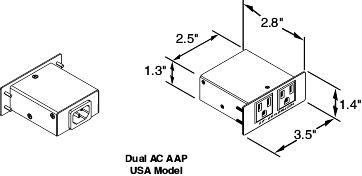

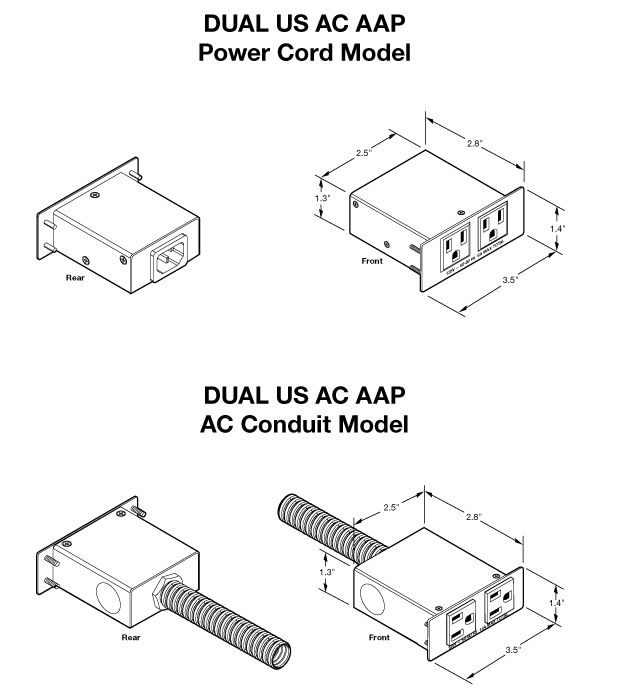

   Enclosure dimensions
      US and JP AC cord model
         Faceplate 1.4" H x 3.5" W x 0.1" D (35 mm H x 89 mm W x 3 mm D)
(double space AAP plate)
         Isolation enclosure 1.3" H x 2.5" W x 2.8" D (33 mm H x 63 mm W x 71 mm D)
With AC power cord attached, allow at least 4.5" (114 mm) depth in the wall or furniture.

      US AC conduit model
         Faceplate 1.4" H x 3.5" W x 0.1" D (35 mm H x 89 mm W x 3 mm D)
(double spaced AAP plate)
         Isolation enclosure 1.3" H x 2.5" W x 2.8" D (33 mm H x 63 mm W x 71 mm D)
Allow at least 6.5" (165 mm) of depth in the wall or furniture for conduit bend radius.

   Product weight
      US and JP AC cord model 0.7 lbs (0.3 kg)
      US AC conduit model 2.3 lbs (1.0 kg)
   Vibration ISTA 1A in carton (International Safe Transit Association)
   Regulatory compliance
      Safety
         US cord and US conduit model c-UL, UL
         JP AC cord model PSE
      Environmental Complies with the appropriate requirements of RoHS and WEEE.
   Warranty 3 years parts and labor
    NOTE     Specifications are subject to change without notice.
(050917-D6)
Shipping Dimensions and Weights
    Part # Height Width Depth Weight
    70-584-02 2.44" (6.2 cm) 7.13" (18.1 cm) 9.5" (24.1 cm) 1.01 lbs (0.46 kg)

Diagram

Application Diagram
