Mic/Line Input Gain

There are four mono mic/line input channels. Channel controls and processing blocks are identical for each input channel.

See the Optimizing Audio Levels section for more information.

Adjusting Mic/Line Input Gain

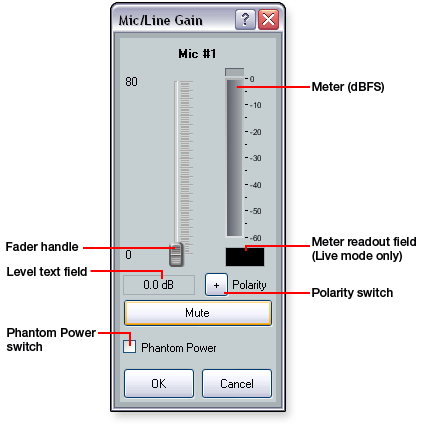

Each mono mic/line input channel GAIN block opens a Mic/Line Gain dialog that provides a single long-throw fader with a gain range of 0 dB to +80 dB and a Level setting text field below the fader. You can adjust the level in 0.1 dB increments.

The 0 dB to +10 dB gain range accommodates a line level signal, typically from a wireless microphone receiver with a line level output. You can resize the Mic/Line Gain dialog vertically to adjust the view of the fader. The default setting is muted with unity gain (0.0 dB).

To adjust the fader level:

  1. Click the fader handle or click within the fader area.

  2. Adjust the level using any of the following methods:

  3. Click and hold the fader handle, then drag it to the desired level in 0.1 dB increments.

  4. Press the <Up Arrow> or <Down Arrow> key to respectively increase or decrease the level in 1 dB increments.

  5. Press the <Page Up> or <Page Down> key to respectively increase or decrease the level in 10 dB increments.

  6. Click in the Level text field (resolution is 0.1 dB increments) and enter a new value. Then, press <Enter> or press <Tab> to move to another area of the dialog.

  1. Click OK to accept the changes and close the dialog. Click Cancel to close the dialog without saving any changes.
