Meter Bridge

The Meter Bridge option provides a meter bridge for convenient viewing of system status. You can view all of the activity on the inputs and outputs of the DMP 64.

NOTE:  While in Emulate mode, the Meter Bridge option is disabled. The option is also disabled if you are using an RS-232 connection or a USB connection.

Viewing the Meter Bridge

  1. From the View menu, select Meter Bridge. The Meters dialog opens.

  2. Select the check box for each meter or meter pair that you wish to view. This enables the view of the associated meters.

The check box status (selected or cleared) is not retained when you close the Meter Bridge. The refresh rate that is displayed to the right of the meters will update (reduce) as meters are enabled.

Meters in the Meter Bridge indicate clipping at -1 dBFS.

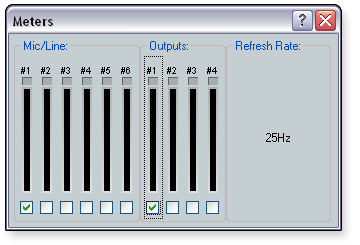

The screenshot below shows meters enabled for Mic/Line Input 1 and Line Output 1.
