Configure Groups

This option opens the Configure Groups dialog from which you can manage Group Masters and group members.

Group Master control types include:

• Gain

• Mute

• Bass

• Treble

In order to access the bass and treble Group Master control types, bass and treble need to be inserted into the signal chain.

Configuring Groups

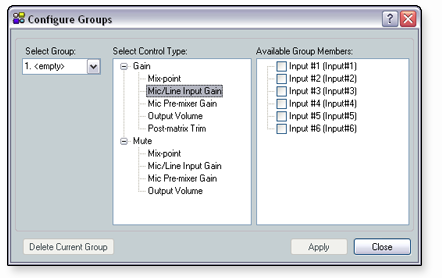

From the Tools menu, select Configure Groups. The Configure Groups dialog box opens. You can then add and configure groups as needed.

For the procedure to configure groups, see the Configuring Groups subsection of "Group Masters."
