Mouse Navigation

Mouse navigation in the DSP Configurator application is mostly consistent with standard Microsoft® Windows® behavior and should be intuitive.

See the "Inserting and Deleting a Processor" section in the DMP 64 book, MPX Plus 866 A book, or the
MLS 608 D Series book (depending on device) for information about using the mouse to load processors or open dialog boxes. See the Switcher Matrix Operation section and Switcher Operation section for information about using the mouse to make ties.

Selecting Multiple Blocks

A selected area can be cut, copied, then pasted (see the Paste to a Single Location and Paste to Multiple Locations subsections below). The selection can also be saved to a preset (see the "Presets" section in the DMP 64 book, MPX Plus 866 A book, or MLS 608 D Series book depending on device).

To select multiple blocks of elements:

1. Starting at any corner of the area to be highlighted, click the left mouse button and drag the cursor over the desired blocks.

2. Release the mouse button. The highlighted blocks are outlined in green.

Selecting Multiple Areas

You can select additional areas and retain the previous selection.

To do so:

Press the <Ctrl> key on the keyboard while clicking the additional elements. Alternatively, press the <Ctrl> key while clicking and dragging the cursor over an additional group of elements.

These methods of selection are mainly used when selecting elements prior to saving a preset (see the "Presets" section in the DMP 64 book, MPX Plus 866 A book, or MLS 608 D Series book depending on device).

Copying a Block of Elements

1. Select the elements to be copied (see the Selecting Multiple Blocks and Selecting Multiple Areas subsections above).

2. Use one of the following methods to copy the elements.

3. Right-click the selection and select Copy from the drop-down menu.

4. From the Edit menu, select Copy.

5. Press <Ctrl + C> on the keyboard.

Cutting a Block of Elements

When an element is cut, the element is not removed until it has been pasted.

1. Select the elements to be cut (see the Selecting Multiple Blocks and Selecting Multiple Areas subsections above).

2. Use one of the following methods to cut the elements.

3. Right-click the selection and select Cut from the drop-down menu.

4. From the Edit menu, select Cut.

5. Press <Ctrl + X> on the keyboard.

Pasting to a Single Location

A selected block of elements can be cut or copied, then pasted to a single location.

To paste a block of elements to a single location:

1. Click the upper left-most element that matches the upper left-most element of the area that you cut or copied.

2. Use one of the following methods to paste the elements.

3. Right-click the upper left-most element and select Paste from the drop-down menu.

4. From the Edit menu, select Paste.

5. Press <Ctrl + V> on the keyboard.

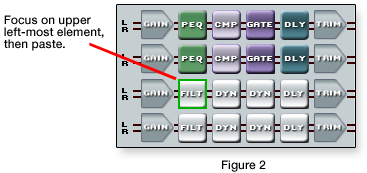

In figure 1 below, all of the processor blocks in the top two rows have been selected (the upper left-most block is a filter block) and then cut or copied. In figure 2 below, the upper left-most block has been selected (also a filter block) in the area to which the elements will be pasted. The first two rows will be pasted to the second two rows.

Pasting to Multiple Locations

A selected block of elements can be cut or copied, then pasted to multiple locations.

To paste a block of elements to multiple locations:

1. Click the upper left-most element that matches the upper left-most element of the area that you cut or copied.

2. Press and hold the <Ctrl> key while repeating step 1 for every area to which you want to paste. Make sure that the area to which you are pasting will not overlap.

3. Release the <Ctrl> key.

4. Use one of the following methods to paste the block of elements.

5. From the Edit menu, select Paste.

6. Press <Ctrl + V> on the keyboard.

In figure 1 below, all of the processor blocks in the top two rows have been selected (the upper left-most block is a Filter block) and then cut or copied. In figure 2 below, the upper left-most blocks have been selected (also Filter blocks) for each set of two rows to which to paste. The first two rows will be pasted three times.
