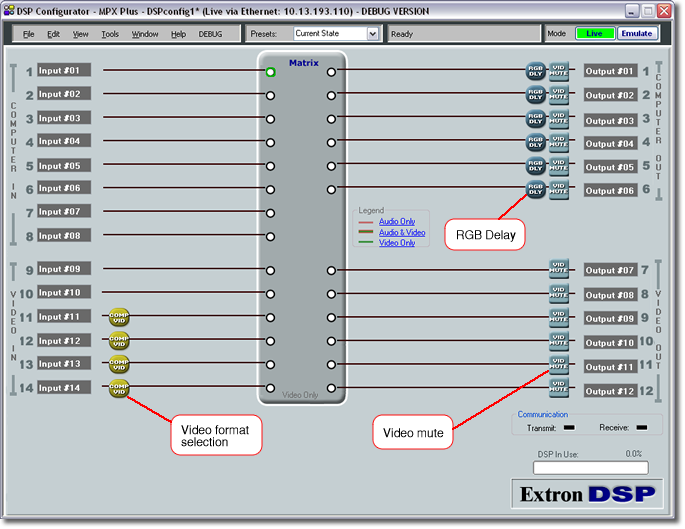

Video settings can be made from the Video I/O view, which can be accessed
by going to View | Video I/O, pressing F4,
or clicking on the Video I/O hyperlink in the
Legend section of any workspace. For more information on Video I/O and
other workspaces, see DSP Configurator
Workflow.
RGB
Delay - During switching, individual computer video outputs can
be set to switch the input sync source first, and then the RGB portion
of the signal. This brief delay allows the display to adjust to the new
sync signal before sending the picture, providing a glitch-free switch.
RGB Delay may be set from 0 to 5 seconds in 0.5 second increments. To
set RGB Delay:
Double-click the RGB Delay block,
or focus on the RGB Delay block and then press Enter.
A dialog appears with a slider for setting delay time.
Click + drag the slider handle to the right to set the
time. Or, press the Tab key to bring focus to the slider, then use the
right arrow key to set the time. (To defeat RGB delay, set the delay time
to 0.0 seconds.)
Click OK.
Video
Mute - Individual video outputs can be muted or unmuted. To toggle
the mute state, double-click the Video Mute button,
or focus on the Video Mute button and then press Enter.
The muted state is represented by a red rectangle in the lower left corner
of the block.
Video
Format - Low resolution video inputs 11 through 14 are individually
configurable as either composite video or S-video. To toggle the video
format, double-click the Comp Vid button, or focus
on the Comp Vid button and then press Enter. The
format switches between S-video and Comp Vid (composite video).
