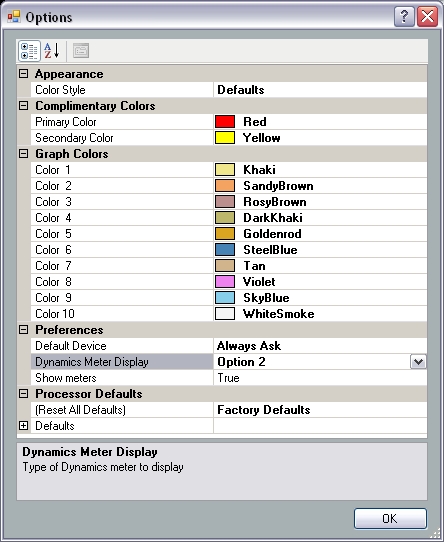

OptionsUser defaults and preferences can be set under Tools | Options. Selecting an option from the right or left column focuses the selection and turns the right-column item into a drop-down list. Parameters are set under the following headings: Appearance• Color Styles - set color scheme for filter table. Select from Default, Custom, and a list of pre-selected schemes. Complimentary Colors• Complimentary Colors - alter the choices for complimentary colors within a dialog box, such as the filter graph composite line and horizontal grabber.
Graph ColorsSet one of all of the colors for the filter dialog tables. Use the Appearance Default or pre-selected schemes as a starting point. Click a color's text field to activate the drop-down list. When a color scheme is altered, the Appearance selection is set to Custom. Preferences• Default Device - set to Always (default) to enable the device selection dialog upon application launch. Alternately select device to emulate upon application launch. • Dynamics Meter Display - select the preferred meter for the Dynamics block. o Option 1 - Meter showing Gain Reduction o Option 2 - Meter showing input & output levels (factory default) • Show Meters - set to True (default) for active meters (number of open can be limited by connection speed). Set to False for inactive meters (turned off). Processor DefaultsClick the + button to expand the list and enable the scroll bar. Processors are listed in alphabetical order, but are shown here by category for convenience. • Dynamics Defaults - factory default settings for all relevant parameters, including Enable True/False. Enable determines whether the block loads bypassed, or loads enabled (bypass disengaged). o AGC o Compressor o Limiter o Noise Gate • Filter Defaults o High o Low o Bass o Treble o Parametric o Notch • Gain Defaults o Mic/Line Gain o Mic Mixer Gain o Output Volume o Post-mixer Trim o Pre-mixer Gain • Other Defaults o Ducking o Loudness o Delay o FBS
|
