Pre-mixer Gain Controls

Pre-mixer Gain

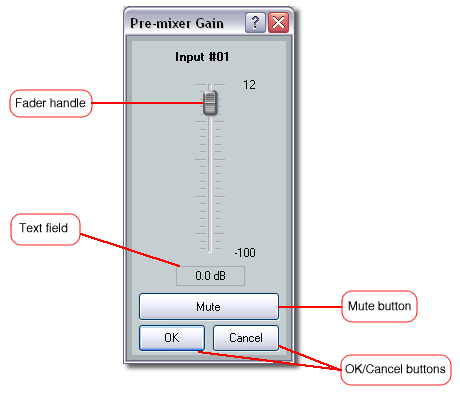

Each input channel Pre-mixer Gain block provides a mono fader with a gain range of -100dB to +12dB. The default setting is unity gain (0.0dB). A single mute button provides control of channel muting.

Clicking the handle or clicking within the fader area brings focus to the fader. Level can be adjusted using any of the following methods:

• Grab fader - click + hold fader handle, then drag to desired level in 1.0dB steps.

• Up/down arrow or Page Up/Page Down - click or tab to fader handle, then use up/down arrow keys to the desired level in 1.0dB steps. Page Up/Page Down keys increase/decrease level in 5dB steps.

• Level setting text field - click in or tab to the level readout field. Type a new value (resolution is 0.1dB increments, then press Enter, or Tab to another area.
