Meter Bridge

The DSP Configurator software provides a meter bridge for convenient viewing of system status. All activity on inputs and outputs can be viewed at a glance.

In Live mode, go to View | Meter Bridge to open the Meters window. The Meter Bridge is not available in Emulate mode. Click the checkbox for each meter or meter pair that you wish to view, enabling that meter view. Checkbox status is not retained when the Meter Bridge window is closed. The Refresh Rate to the right of the window will update (reduce) as meters are enabled. Meters in the Meter Bridge indicate clipping at -1dBFS.

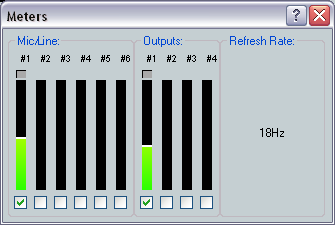

The screenshot below shows meters enabled for Mic/Line Input 1 and Line Output 1.
