Preparing Devices for a Network Connection

Each IP Link device must have its IP address set before it is usable on an audio/visual network. There are three ways to set an IP address:

  1.  Add Device > Auto Config IP  option

  2. Address Resolution Protocol (ARP)  command

  3. Embedded Web Pages  of the device

Add Device > Auto Config IP

Note: The IP Link device must be

a) physically connected to the network, and

b) at its factory default IP address (192.168.254.254) for this procedure to work. See the device user's manual for instructions on resetting the device to its factory default condition.

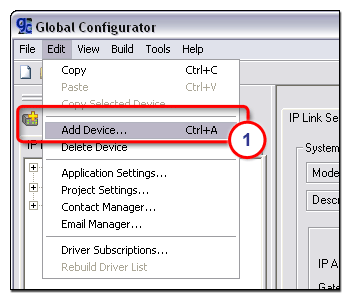

  1. Click Edit > Add Device... or  the Add Device icon.

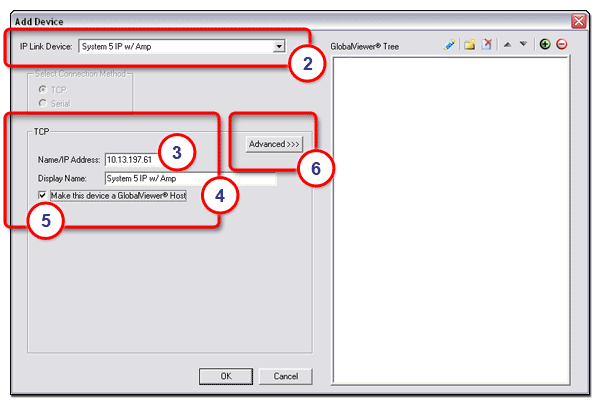

The Add Device dialog box  (shown below) opens.

  1. Select the new device type from the IP Link Device: drop-down list.

  2. Enter the device IP address in the Name/IP address: field.

  3. Enter a unique device name in the Display Name: field.

  4. Click the Make this device a GlobalViewer®  Host check box if desired (see Note below).

  5. Click the Advanced button.

Note: A GlobalViewer Host is a device that will launch the GlobalViewer interface if its IP address is accessed in an Internet browser.  Devices that are not  designated as a GlobalViewer Host can be monitored and controlled from any GlobalViewer Host device on the same audio/visual network.

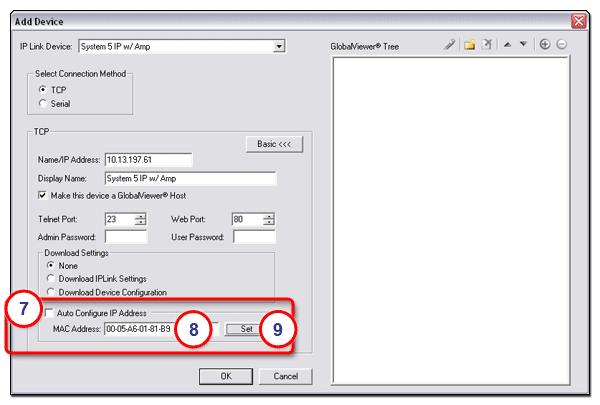

The Advanced options of the Add Device dialog box are displayed.

  1. Click the Auto Configure IP Address checkbox.

  2. Enter the device's MAC Address (found on a label on the rear panel of the device). The first six digits are common to all Extron devices (00-05-A6),  and are pre-populated. Dashes are entered automatically. It is only necessary to enter the final six digits of the MAC Address.

  3. Click Set.

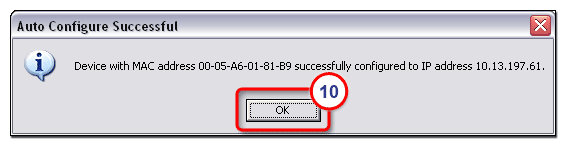

The Auto Configure Successful dialog box opens.

  1. Click OK.

Address Resolution Protocol (ARP)

The ARP command assigns  a given IP address to a device with a specified MAC address.

Note: The IP Link device must be at its factory default IP address (192.168.254.254) for this procedure to work. See the device user's manual for instructions on resetting the device to its factory default condition.

To use the ARP command:

  1. Obtain a valid IP address from your system administrator.

  2. Locate and record the MAC address from the label on the rear panel of the IP Link device.

  3. Open a Command Prompt window on a PC that is on the same network as the device.

Start > All Programs > Accessories > Command Prompt

  1. At the command prompt type:

arp -s <IP address> < MAC address>

example:    C:\>arp -s 10.13.197.62 00-05-A6-01-9F-E4

The command above will assign IP address 10.13.197.62 to the device that has a MAC address of
00-05-A6-01-9F-E4

  1. Execute a ping command to the new IP address.

example:    C:\>ping 10.13.197.62

If the IP address setting was successful, the device will reply 3 or more times with:

Reply from <IP address>: bytes=32 time<1ms TTL=64

Embedded Web Pages

Note: The IP Link device must be at its factory default IP address (192.168.254.254) for this procedure to work. See the device user's manual for instructions on resetting the device to its factory default condition.

To set an IP address using a device's embedded Web page:

  1. Obtain a valid IP address from your system administrator.

  2. Connect a Cat 5 Ethernet crossover cable between the device and a PC.

  3. On the PC, locate the TCP/IP Properties dialog box.

On Windows XP:

Start > My Network Places >
Right click to Properties >
Local Area Connection >
Right click to Properties >
Internet Protocol (TCP/IP) > Properties

  1. Record the current IP address, subnet mask, and default gateway settings. You will need this information later to return your PC to its original settings.

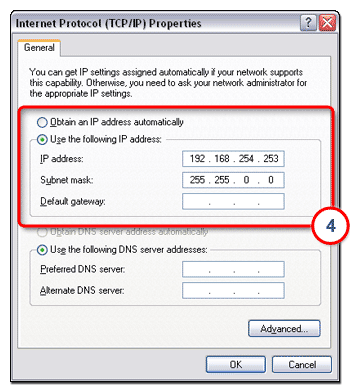

  2. Enter (as shown at right):

IP address: = 192.168.254.253

Subnet mask: = 255.255.0.0

Default gateway: = <empty>

Note: When a valid IP address is entered, the Subnet mask field may default to 255.255.255.0. Be sure to change it to 255.255.0.0.

  1. Open a Web browser.

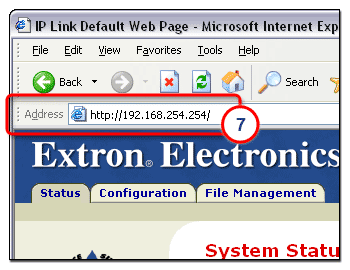

  2. Enter 192.168.254.254 in the address field and press Enter.

The IP Link device's Embedded Web Page is displayed.

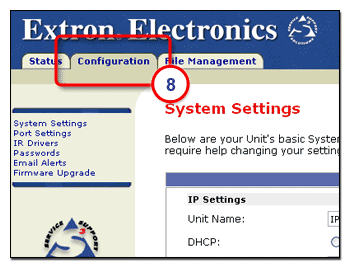

  1. Click the Configuration tab.

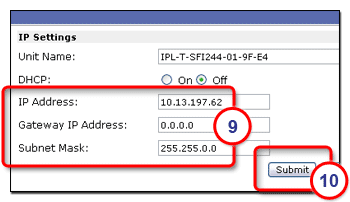

  1. Change the IP Address and Subnet Mask to the new IP address and subnet mask.

  2. Click Submit.

The new IP address is written to the device and the Web browser connection is immediately lost.

The device, with its new IP address, is now ready to be connected to your audio/visual network.

Return PC to Original Settings

  1. Close the Web browser.

  2. Disconnect the Ethernet crossover cable from the PC and the device.

  3. Return to the TCP/IP Properties dialog box on the PC.

  4. Return the IP address, Subnet mask, and Default gateway fields to their original settings.

Note: If the original PC setting was Obtain an IP address automatically, return to this setting, and leave the other fields blank.

  1. Reboot the PC.
