Application Settings

Use the Applications Settings dialog box to:

• Make selections about confirmation and warning dialogs in the current Global Configurator project file

• Select the default GlobalViewer Project Skin

• Set Proxy Server

Application Settings...

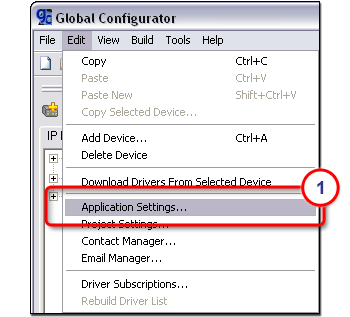

To open the Applications Settings dialog box:

1. Click Edit > Applications Settings...

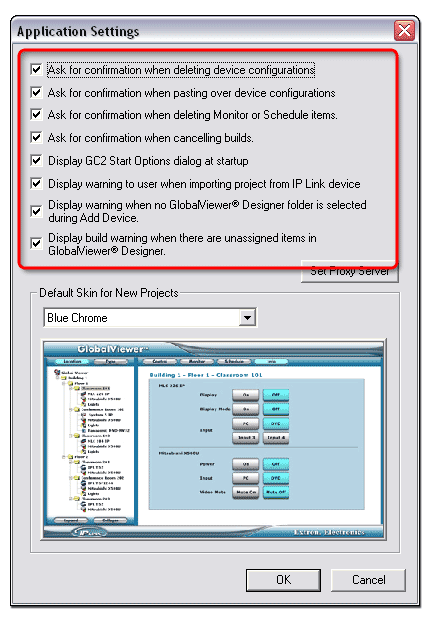

Confirmation and Warning Dialog Selections

Click the desired check boxes in the Application Settings window to turn confirmation and warning dialog boxes on or off.

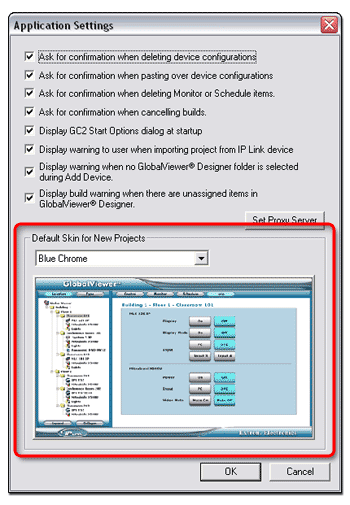

GlobalViewer Project Skin

Use the Default Skin for New Projects drop-down list to change the look and feel of the GlobalViewer interface.

The drop-down list  options are:

Blue chrome (shown at right)

Blue Carbon

Classic Extron Blue

Gray Basic

Green Gel Tabs

Metal

Splash Down Blue

Steel Gauges

Wood Finish

Set Proxy Server

Some networks are protected by a Proxy Server whose function is to:

• Protect the network from intrusion

• Filter downloaded Internet content

• Cache web site

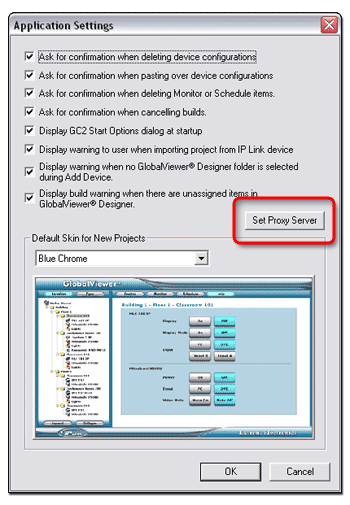

If the network on which you are installing Global Configurator has a Proxy Server, you can click the Set Proxy Server button in the Applications Settings window to launch the Proxy Server Specifications dialog box (see below).

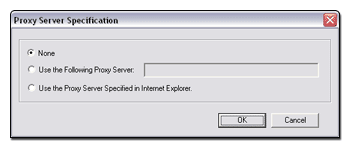

Proxy Server Specifications

The Proxy Server options are:

• None - (default) use when no Proxy Server exists on the network.

• Use the Following Proxy Server - enter the hostname or IP address of the Proxy Server on your network

• Use the Proxy Server Specified in Internet Explorer - select if your Internet Explorer application has been configured with a Proxy Server specification
